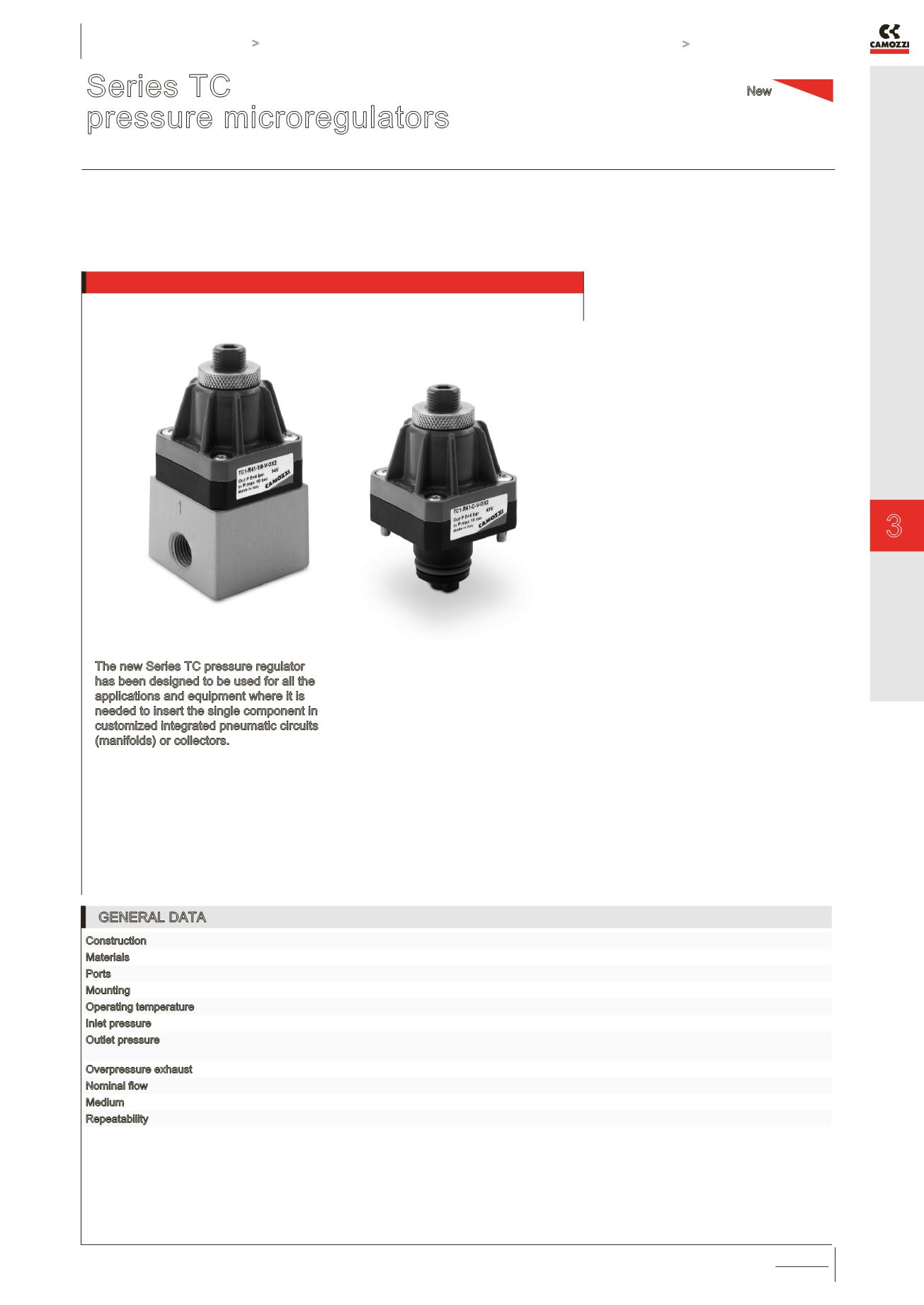

Series TC
pressure microregulators
For applications with oxygen, without relieving
Ports: cartridge construction, G1/8 and 1/8 NPTF
The new Series TC pressure regulator
has been designed to be used for all the
applications and equipment where it is
needed to insert the single component in
customized integrated pneumatic circuits
(manifolds) or collectors.
The cartridge design and the compact
size allow the regulator to be plugged
in a proper seat, making the installation
easier and reducing the assembly time.
To produce the new TC regulator,
materials have been analized and
chosen on the basis of their suitability
with the contact medium. The body in
PPS and the seals in FKM ensure thus
full compatibility with a wide range of
gaseous fluids.
» » Compact design
»
» High performance
» » Easy to install
» » Materials suitable
with several gases
GENERAL DATA
Construction compact with pre-formed diaphragm
Materials see the TABLE OF MATERIALS
Ports cartridge construction in manifold - G1/8 or 1/8NPTF (aluminium body version only)
Mounting in-line or cartridge (any position)
Operating temperature -5°C ÷ 50°C
Inlet pressure 0 ÷ 10 bar
Outlet pressure 0 ÷ 0.5 bar 0 ÷ 2 bar
0 ÷ 3 bar 0 ÷ 4 bar
Overpressure exhaust without relieving
Nominal flow see the FLOW DIAGRAMS
Medium air, inert and medical gases, OXYGEN
Repeatability ±0.2% FS
New
