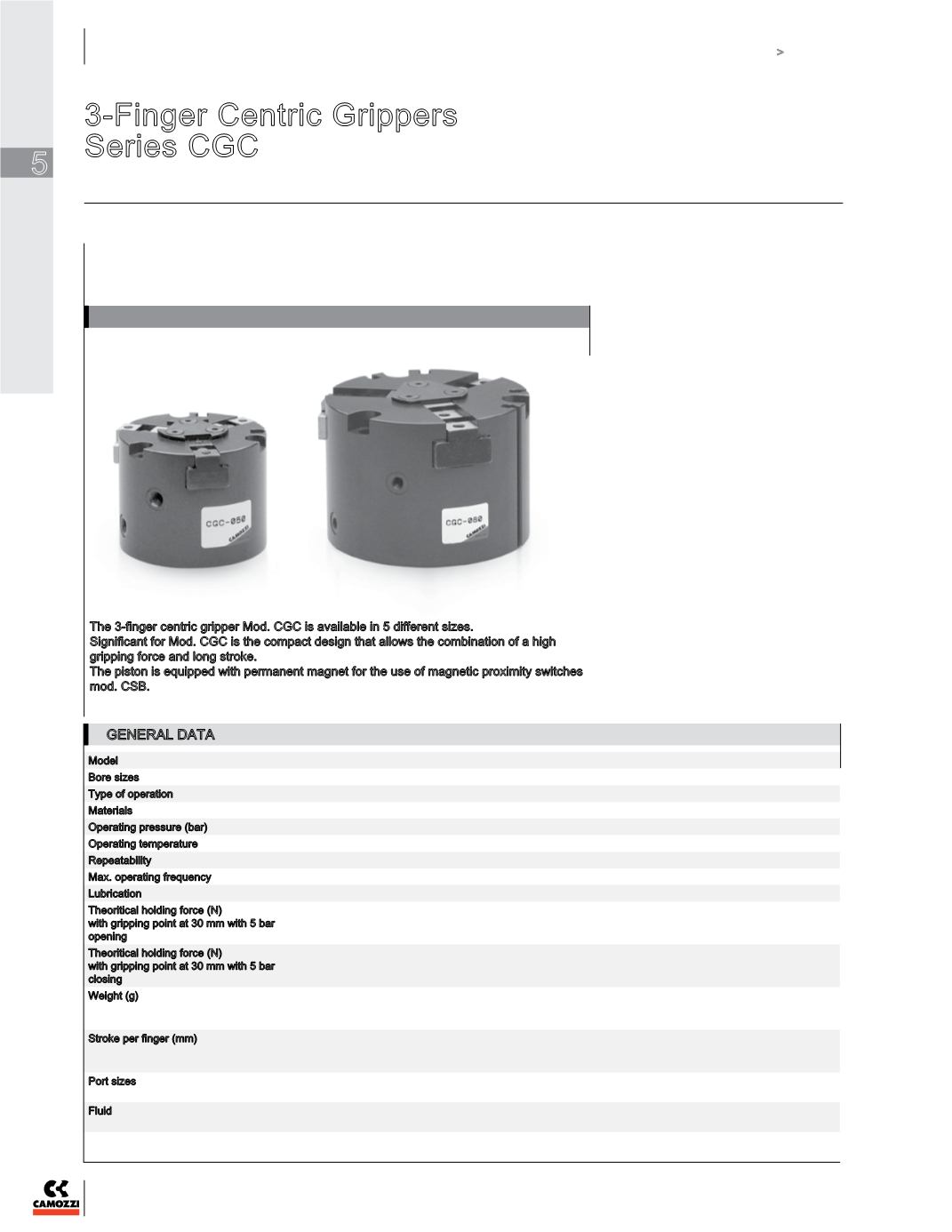

Finger Centric Grippers
Series CGC
Magnetic
Sizes 50 - 64 - 80 - 100 - 125
The 3-finger centric gripper Mod. CGC is available in 5 different sizes.
Significant for Mod. CGC is the compact design that allows the combination of a high
gripping force and long stroke.
The piston is equipped with permanent magnet for the use of magnetic proximity switches
mod. CSB.
The proximity switches can be inserted in
the U-shaped grooves on the body in order
to detect whether the gripper is in an open
or closed position.
GENERAL DATA
»
»
Compact design
»
»
High gripping force
»
»
Long stroke
Model
CGC-50; CGC-64; CGC-80; CGC-100; CGC-125
Bore sizes
Ø 32 Ø 45 Ø 58 Ø 77 Ø 98
Type of operation
double-acting
Materials
housing: high tensile special hard-coated aluminium alloy, Functional parts: hardened steel
Operating pressure (bar)
2 – 7
bar (29 - 102 psi)
Operating temperature
5
°C – 60°C (41°F - 140°F)
Repeatability
+/- 0,05 mm
Max. operating frequency
60
cycles/min
Lubrication
lever section lubrication required on sliding section
Theoritical holding force (N)
with gripping point at 30 mm with 5 bar
opening
Ø 32 = 78, Ø 45 = 185
Ø 58 = 340, Ø77 = 580
Ø 98 = 940
Theoritical holding force (N)
with gripping point at 30 mm with 5 bar
closing
Ø 32 = 68, Ø 45 = 160
Ø 58 =290, Ø 77= 510
Ø 98 = 860
Weight (g)
Ø 32 = 230, Ø 45 = 410
Ø 58 = 800, Ø 77= 1400
Ø 98 = 2400
Stroke per finger (mm)
Ø 32 = 4, Ø 45 = 6
Ø 58 = 8, Ø 77 = 10
Ø 98 = 13
Port sizes
Ø 32- 45 -58 - M5
Ø 77 - Ø 98 -G1/8
Fluid
filtered air without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied, the
lubrication should never be interrupted.
