Hydrochecks
Series 43
Bore ø 40
Regulated thrust or return stroke
Skip-Stop function

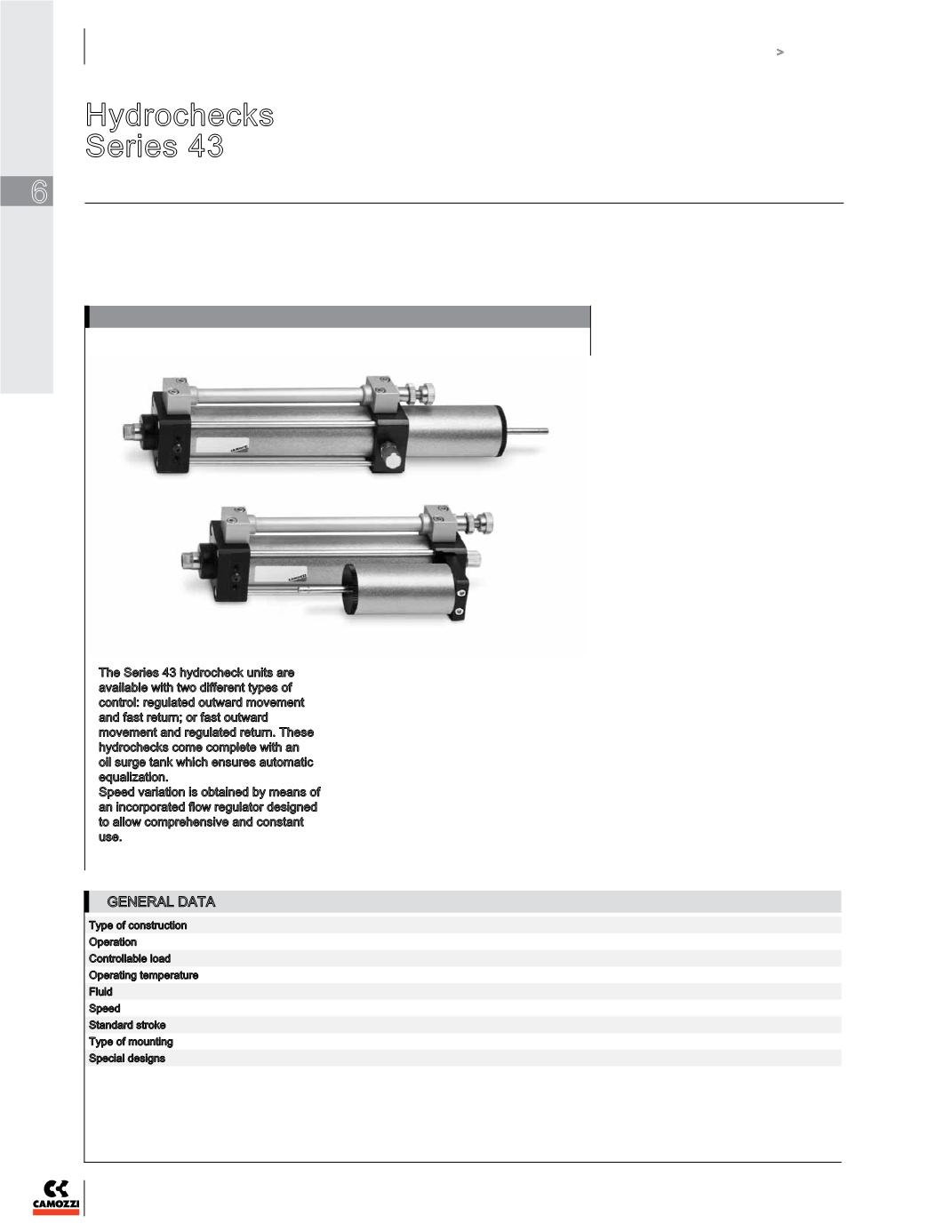

The Series 43 hydrocheck units are
available with two different types of
control: regulated outward movement
and fast return; or fast outward
movement and regulated return. These
hydrochecks come complete with an
oil surge tank which ensures automatic
equalization.
Speed variation is obtained by means of
an incorporated flow regulator designed
to allow comprehensive and constant
use.
Upon request, they can be supplied
with an incorporated stop valve or an
acceleration valve or both.
To restore oil when the minimum level in
the surge tank is reached, use oil OLIR-
40
and pump Mod. 43N-PMP.
GENERAL DATA
Type of construction with tie-rods
Operation
regulated thrust or return stroke
Controllable load
max. 500 kg (including inertia or moving masses)
Operating temperature -10°C +70°C (14°F - 158°F)
Fluid
special hydraulic oil (contact our engineers)
Speed
minimum: 14mm/min maximum: 15 m/min (in non regulated direction)
Standard stroke
50, 100, 150, 200 (
special stroke available on request)
Type of mounting
feet Mod. B-40 (see B-41-40 for dimensions)
Special designs
with STOP or SKIP and SKIP/STOP valve
