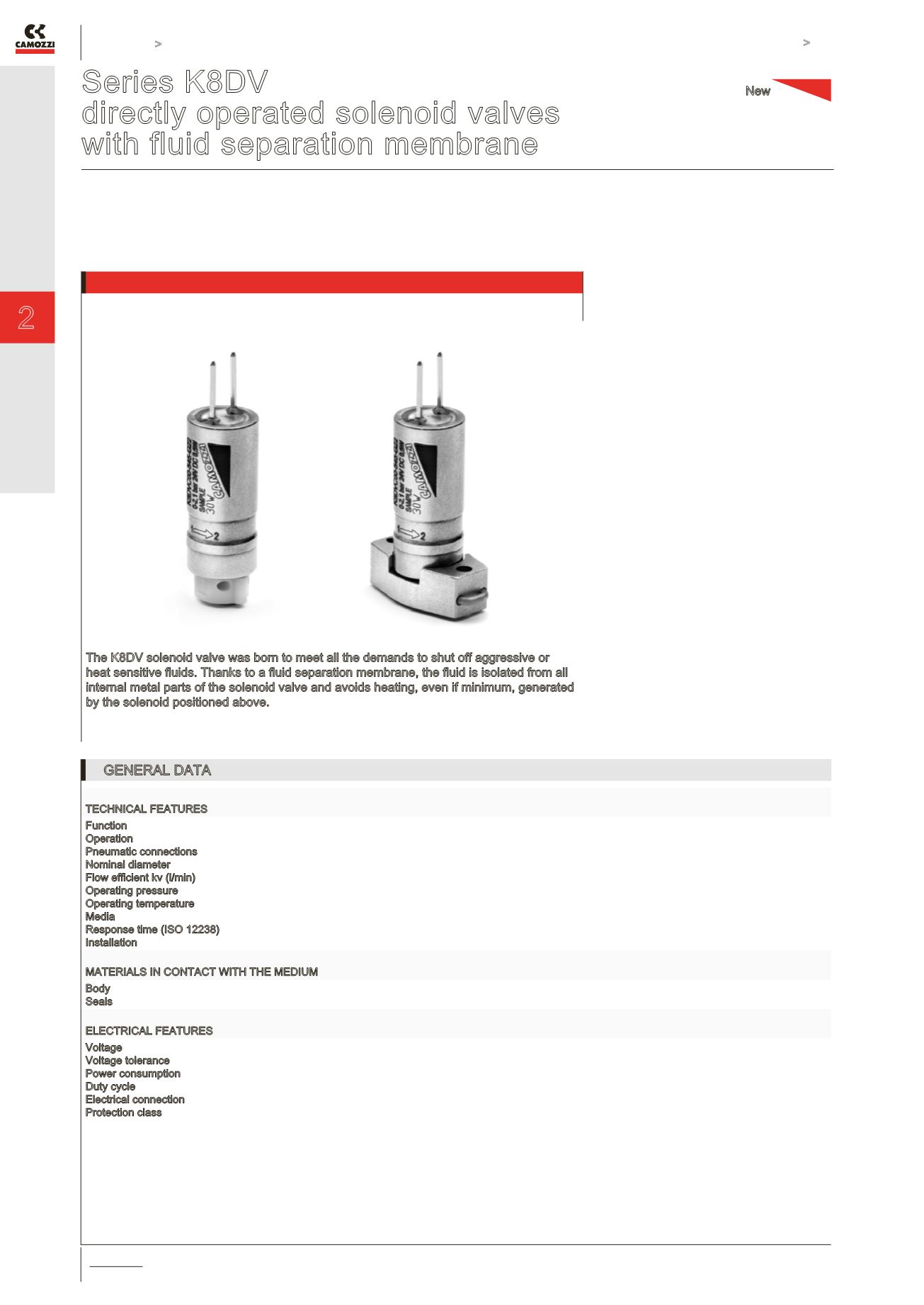

Series K8DV solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
21
CONTROL
Series K8DV
directly operated solenoid valves
with fluid separation membrane
2/2-way - Normally Closed (NC)
The K8DV solenoid valve was born to meet all the demands to shut off aggressive or
heat sensitive fluids. Thanks to a fluid separation membrane, the fluid is isolated from all
internal metal parts of the solenoid valve and avoids heating, even if minimum, generated
by the solenoid positioned above.
To choose the most suitable model for a
specific application, check the chemical
compatibility of the medium to control with
the available materials of body and seals.
» » Very compact design
and reduced weight
»
» High flow performances
» » Very low internal volume
» » Suitable to be applied in
medical equipment and
analytical instruments
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Flow efficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time (ISO 12238)
Installation
2/2 NC
directly operated with fluid separation membrane
cartridge for manifold or flanged for subbase
0.7 mm
0.1
0 ÷ 2.1 bar
5 ÷ 50°C
liquids / aggressive or inert gases
ON ≤ 10 ms - OFF ≤ 15 ms
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
PEEK
FKM - EPDM
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
24 V DC - 12 V DC - 6 V DC - 5 V DC - 3 V DC - other voltages on demand
±10%
0.6 W
ED 100%
2 Pins 0.5 x 0.5 spacing 4 mm
IP00
New
