General terms and conditions for sale are available on

www.camozzi.com.

2

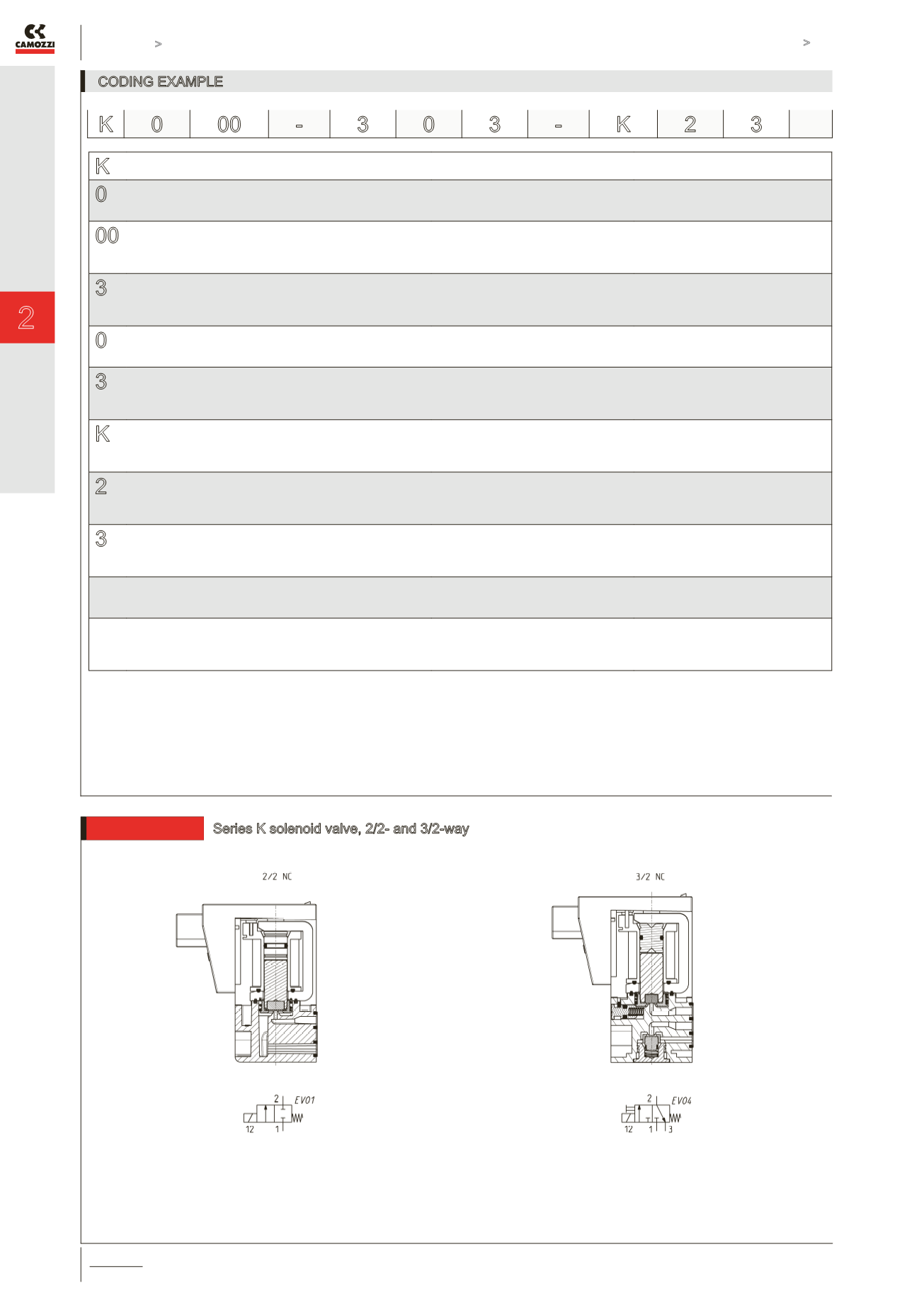

Series K solenoid valves

CONTROL >

C_FLUID CONTROL CATALOGUE

>

2018

27

CONTROL

CODING EXAMPLE

K

SERIES

0

BODY DESIGN:

0 = single sub-base (only M5) or interface

1 = manifold

00

NUMBER OF POSITIONS:

00 = interface

01 = single base (only M5)

02 ÷ 99 = manifold number of positions

3

NUMBER OF WAYS - FUNCTIONS:

0 = manifold or single base

1 = 2-way NC

1 = 2-way NC electric part revolved by 180°

3 = 3-way NC

5 = 3-way NC electric part revolved by 180°

4 = 3-way NO

6 = 3-way NO electric part revolved by 180°

0

PORTS:

0 = interface

2 = M5 side outlets

3

NOMINAL DIAMETER:

2 = Ø 0.6 mm

3 = Ø 0.65 mm

5 = Ø 1.0 mm

K

MATERIALS:

F = PBT body, FKM poppet

K = PBT body, HNBR poppet

(available for 3/2 version only)

2

ELECTRICAL CONNECTION:

1 = 90° connection with protection and led

2 = 90° connection with protection

3 = 90° connection

B = in-line connection with protection and led

C = in-line connection with protection

D = in-line connection

F = cable (300mm) with protection and led

G = cable (300mm) with protection

H = cable only (300mm)

3

SOLENOID VOLTAGE:

1 = 6V DC - 1W

2 = 12V DC - 1W

3 = 24V DC - 1W

FIXING:

= with screws for mounting on plastics

M = with screws for mounting on metal

OPTIONS:

= standard

OX1 = for use with oxygen (non volatile residual less than 550 mg/m²)

OX2 = for use with oxygen (non volatile residual less than 33 mg/m²)

K 0 00 -

3 0 3 -

K 2 3

6512

Series K solenoid valve, 2/2- and 3/2-way
