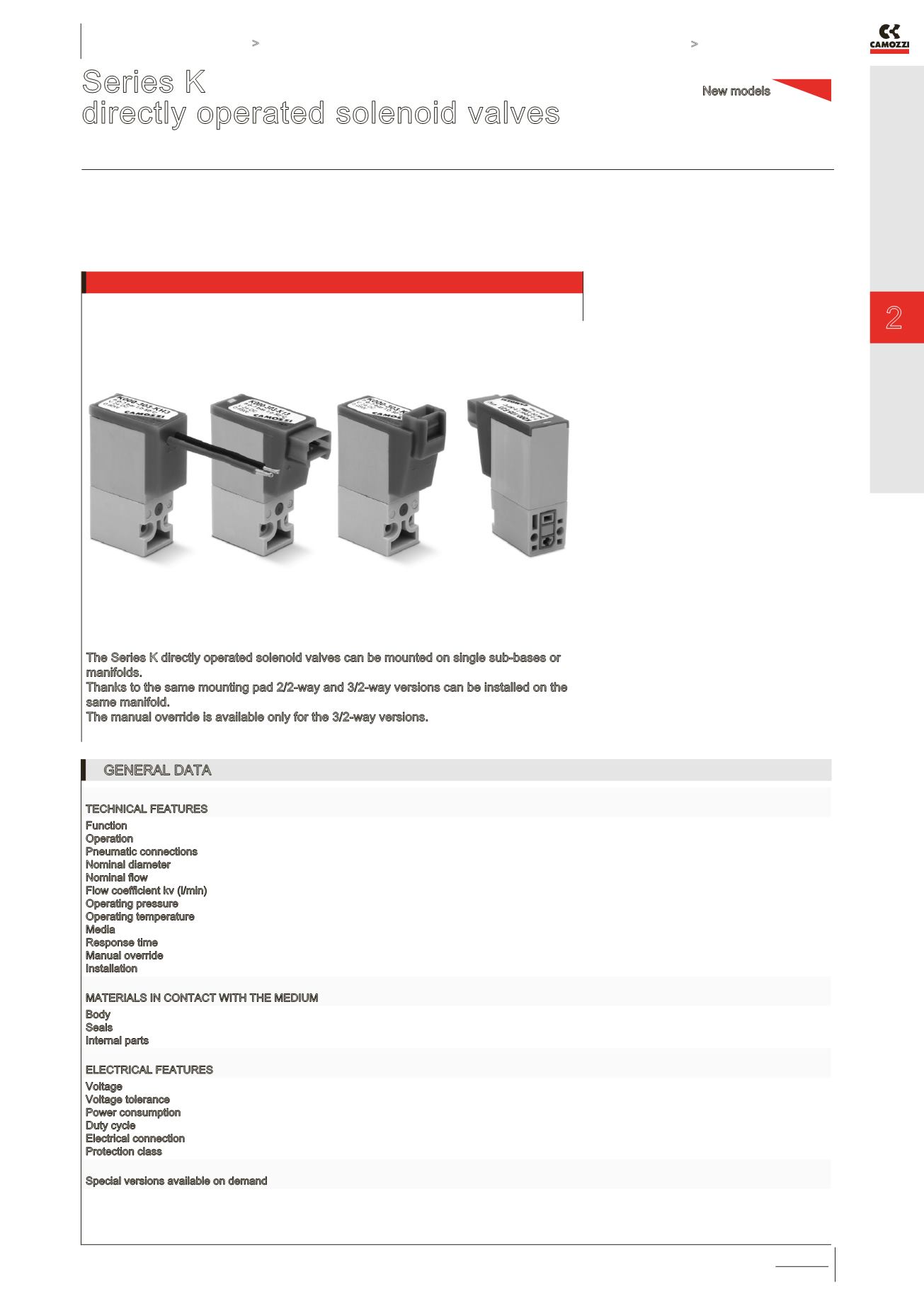

Series K solenoid valves

C_FLUID CONTROL CATALOGUE

2018

CONTROL >

CONTROL

Series K

directly operated solenoid valves

2/2-way - Normally Closed (NC)

3/2-way - Normally Closed (NC) and Normally Open (NO)

The Series K directly operated solenoid valves can be mounted on single sub-bases or

manifolds.

Thanks to the same mounting pad 2/2-way and 3/2-way versions can be installed on the

same manifold.

The manual override is available only for the 3/2-way versions.

Low power consumption

Compact design

Version for use with

oxygen available

GENERAL DATA

TECHNICAL FEATURES

Function

Operation

Pneumatic connections

Nominal diameter

Nominal flow

Flow coefficient kv (l/min)

Operating pressure

Operating temperature

Media

Response time

Manual override

Installation

2/2 NC - 3/2 NC - 3/2 NO

direct acting poppet type

on subbase by means of screws

0.6 ... 1 mm

see the kv

0.12 ... 0.30

0 ÷ 3 ... 7 bar

0°C ÷ 50°C

filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas

ON <10 msec – OFF <10 msec

monostable button (for 3/2 version only)

in any position

MATERIALS IN CONTACT WITH THE MEDIUM

Body

Seals

Internal parts

PBT technopolymer

NBR or FKM

stailess steel

ELECTRICAL FEATURES

Voltage

Voltage tolerance

Power consumption

Duty cycle

Electrical connection

Protection class

24 V DC - 12 V DC - 6 V DC - other voltages on demand

±10%

1 W

ED 100%

connector - thin cabels L = 300 mm

IP50

Special versions available on demand

New models
