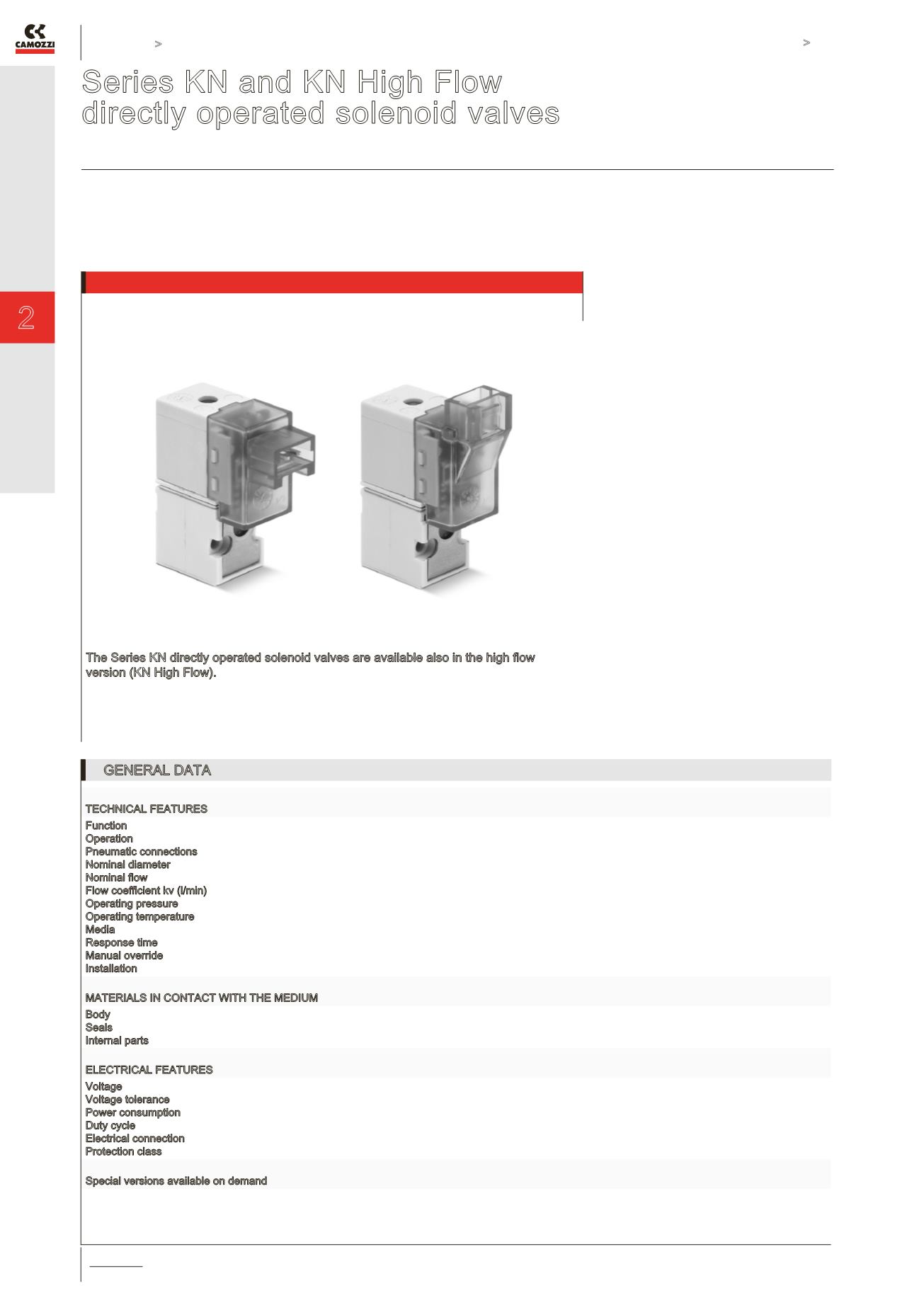

Series KN and KN High Flow solenoid valves

CONTROL >

C_FLUID CONTROL CATALOGUE

2018

CONTROL

Series KN and KN High Flow

directly operated solenoid valves

3/2-way - Normally Closed (NC) and Normally Open (NO)

2/3-way - Universal (UNI)

The Series KN directly operated solenoid valves are available also in the high flow

version (KN High Flow).

Thanks to its low energy consumption and

to its compact design, the KN miniaturized

solenoid valve can be used in industrial and

scientific applications.

Low energy consumption

Compact design

High Flow

ISO 15218 Interface

Version for use with

oxygen available

GENERAL DATA

TECHNICAL FEATURES

Function

Operation

Pneumatic connections

Nominal diameter

Nominal flow

Flow coefficient kv (l/min)

Operating pressure

Operating temperature

Media

Response time

Manual override

Installation

3/2 NC - 3/2 NO - 3/2 UNI

direct acting poppet type

on subbase with ISO 15218 interface by means of screws

0.65 ... 1.1 mm

10 ... 25 Nl/min (air @ 6 bar ΔP 1 bar)

0.15 ... 0.39

0 ÷ 3 ... 7 bar

0°C ÷ 50°C

filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas

ON <10 msec - OFF <10 msec

monostable button

in any position

MATERIALS IN CONTACT WITH THE MEDIUM

Body

Seals

Internal parts

PBT technopolymer

FKM, NBR

stainless steel

ELECTRICAL FEATURES

Voltage

Voltage tolerance

Power consumption

Duty cycle

Electrical connection

Protection class

5 ... 24 V DC - other voltages on demand

1.3/0.25 ... 4/1 W (inrush/holding)

ED 100%

connector

IP50

Special versions available on demand
