www.camozzi.com.Series KN and KN High Flow solenoid valves
C_FLUID CONTROL CATALOGUE
2
34
>
2018
CONTROL >
CONTROL

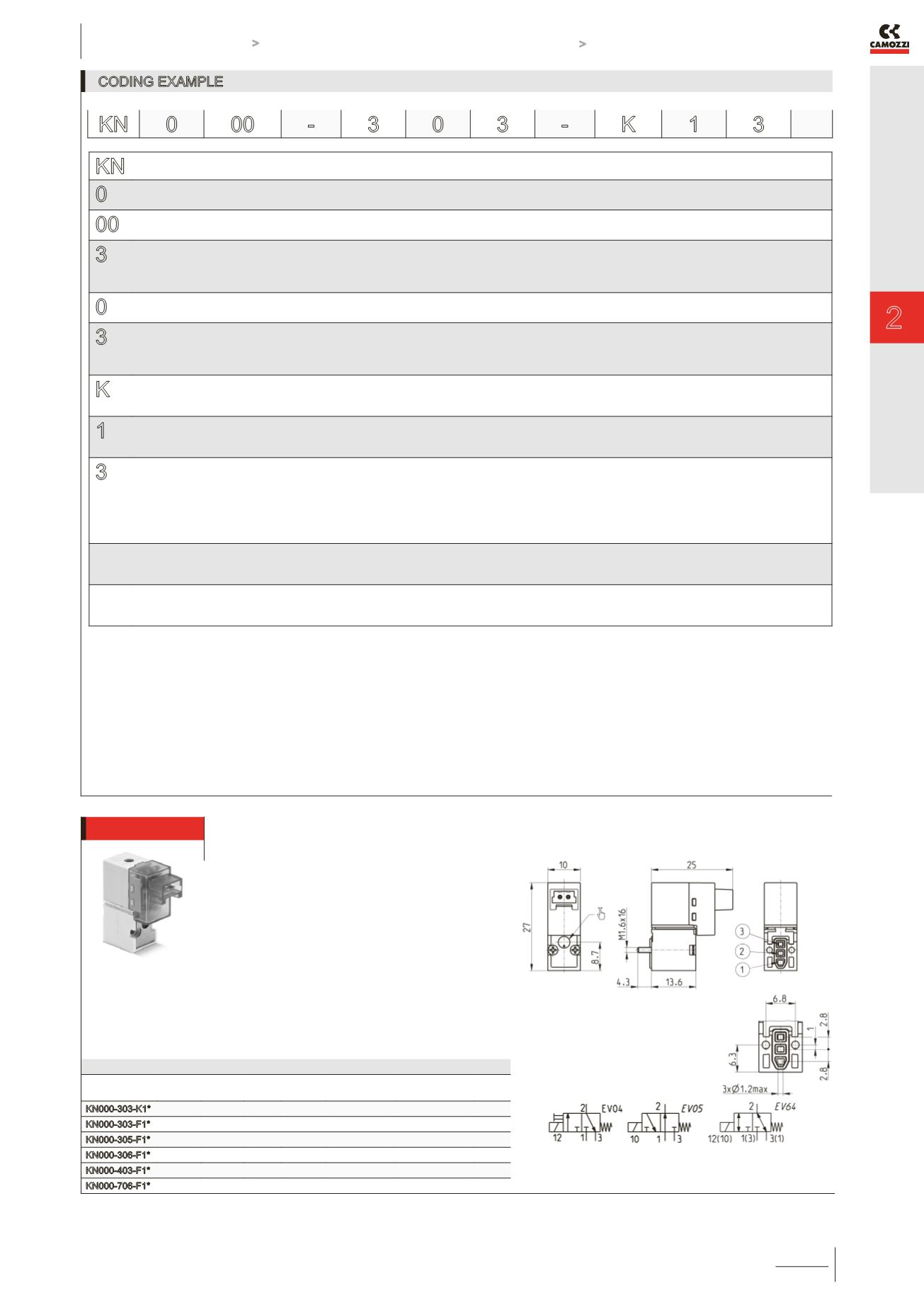

CODING EXAMPLE
KN
SERIES
0
BODY DESIGN:
0 = single valve
00
NUMBER OF POSITIONS:
00 = interface
3
NUMBER OF WAYS - FUNCTIONS:
3 = 3/2-way NC
4 = 3/2-way NO
7 = 3/2-way UNI
0
PORTS:
0 = single valve
3
NOMINAL DIAMETER / MAX PRESSURE:
3 = Ø 0.65 mm
5 = Ø 1.1 mm - max pressure 7 bar
6 = Ø 1.1 mm - max pressure 3 bar
K
MATERIALS:
F = PBT body, FKM poppet seal, FKM other seals
K = PBT body, FKM poppet seal, NBR other seals
1
ELECTRICAL CONNECTION:
1 = 90° connection with protection and led
B = in-line connection with protection and led
3
VOLTAGE - POWER CONSUMPTION:
2 = 12 V DC - 1.3/0.25 W
3 = 24 V DC - 1.3/0.25 W
5 = 5 V DC - 4/1 W
6 = 6 V DC - 4/1 W
7 = 12 V DC - 4/1 W
8 = 24 V DC - 4.1 W
FIXING:
= with screws for mounting on plastics
M = with screws for mounting on metal
OPTIONS:
= standard
OX2 = for use with oxygen (non volatile residual less than 33 mg/m²)
KN 0 00 -
3 0 3 -
K 1 3
3/2-way solenoid valve - 90° electrical connection
Supplied with:
1x interface seal
2x screws M1.6x16 UNI 10227
(fixing for plastics, standard)
or
2x screws M1.6x16 UNI 7687
(fixing for metal, M option)
Mod.
Function Orifice Ø
(mm)
kv
(l/min)
Qn
(Nl/min)
Min÷max
pressure (bar)
Power
consumption (W)
Symb.
KN000-303-K1* 3/2 NC 0.65 0.15
10
0 ÷ 7
1.3 / 0.25
EV04
KN000-303-F1* 3/2 NC 0.65 0.15
10
0 ÷ 7
1.3 / 0.25
EV04
KN000-305-F1* 3/2 NC 1.1 0.39
25
3 ÷ 7
4 / 1
EV04
KN000-306-F1* 3/2 NC 1.1 0.39
-
0 ÷ 3
4 / 1
EV04
KN000-403-F1* 3/2 NO 0.65 0.15
10
0 ÷ 7
1.3 / 0.25
EV05
KN000-706-F1* 3/2 UNI
1.1 0.39
-
0 ÷ 1.5
4 / 1
EV64
* add VOLTAGE - POWER
CONSUMPTION (see CODING
EXAMPLE)
