Series KN and KN High Flow solenoid valves C_FLUID CONTROL CATALOGUE
2
36
> 2018 CONTROL >
CONTROL
Pneumatics and electronics integrated
Valve functions: 2x2/2 - 2x3/2
Pneumatic modularity
10mm valve width
Several solutions of electrical connection.
Modules for digital inputs can be connected.
TECHNICAL FEATURES
Pneumatic connections
Nominal diameter
Nominal flow
Operating pressure
Operating temperature
Media
tube collet ø 4 mm
0.65 mm
10 Nl/min (single solenoid valve)
0 ÷ 7 bar
0 ÷ +50°C
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
Seals HNBR, NBR (FKM on demand)
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
24 V DC
±10%
1.3 W (inrush), 0.25 W (holding)
ED 100%
Multipole-PNP / Individual / Fieldbus

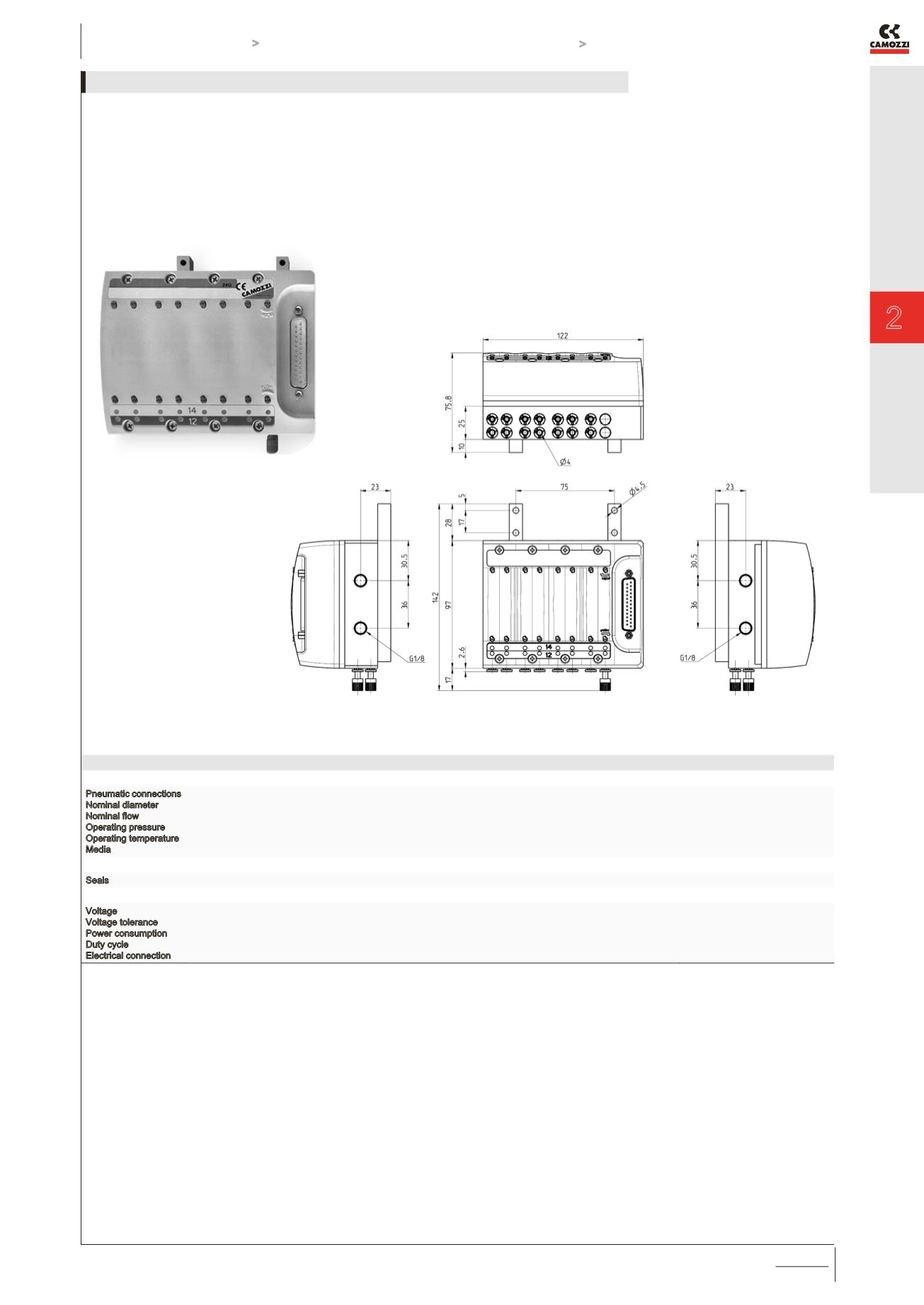

Example of SERIES KN MANIFOLD VERSION - Max 16 positions on demand
