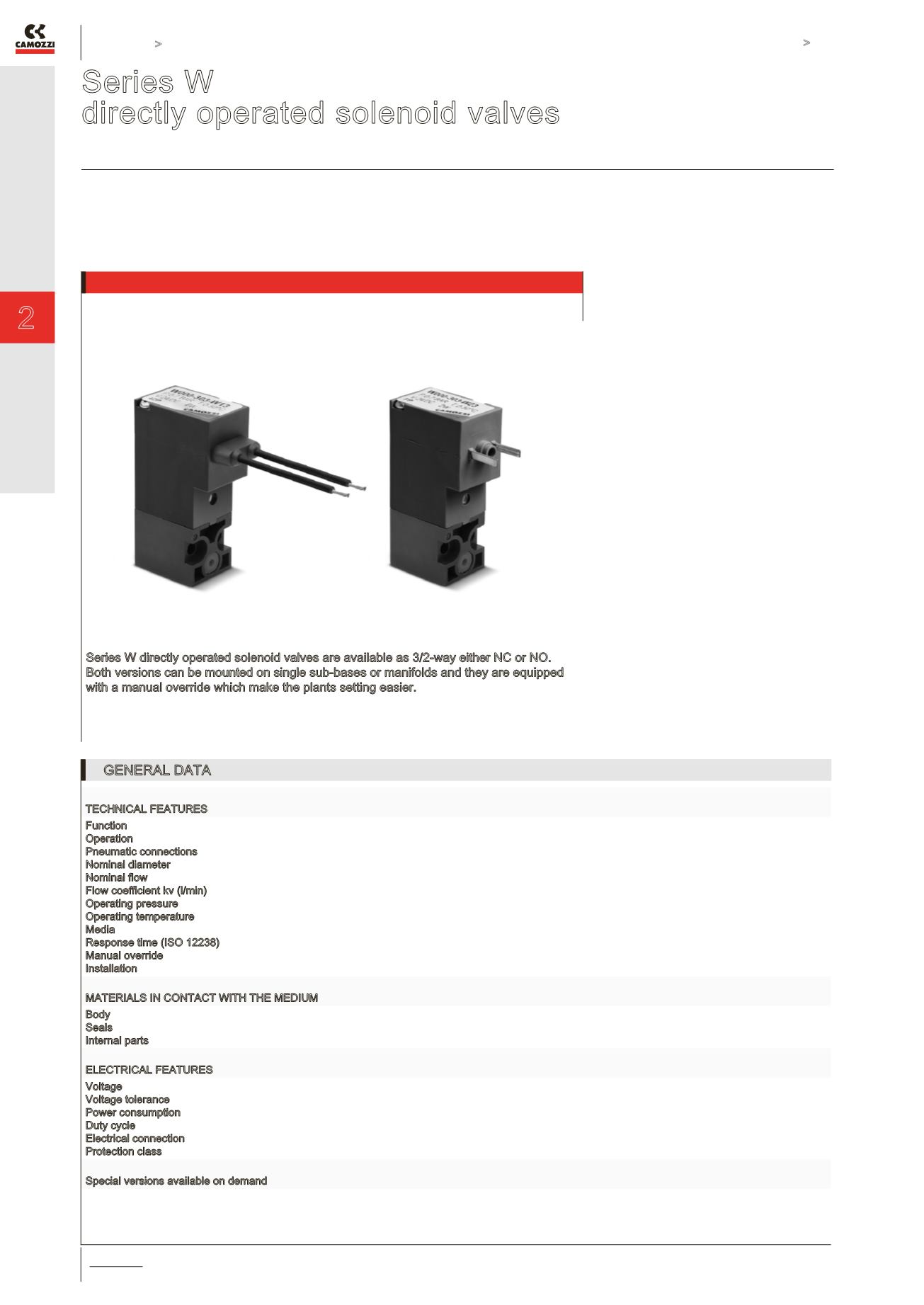

Series W solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
37
CONTROL
Series W
directly operated solenoid valves
3/2-way - Normally Closed (NC), Normally Open (NO)
Series W directly operated solenoid valves are available as 3/2-way either NC or NO.
Both versions can be mounted on single sub-bases or manifolds and they are equipped
with a manual override which make the plants setting easier.
» » Can be mounted on a single
base (M5 connections) or on
manifold (M5 connections
or cartridge ø 3 and 4).
»
» Electrical connection with
cables or in compliance
to DIN EN 175 301-
803-C standard
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time (ISO 12238)
Manual override
Installation
3/2 NC - 3/2 NO
direct acting poppet type
on subbase with ISO 15218 interface by means of screws
0.8 … 1.5 mm
14 … 35 Nl/min (air @ 6 bar ΔP 1 bar)
0.23 … 0.54
0 ÷ 5 … 10 bar
0°C ÷ 50°C
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
ON <10 msec - OFF <15 msec
monostable button
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
Internal parts
PBT technopolymer
PU, NBR, (FKM on demand)
stainless steel
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
12 V DC - 24 V DC - 48 V DC
±10%
2 W - 1 W (24 V DC only)
ED 100%
with connector DIN EN 175 301-803-C (8 mm) - cables L = 300 mm
IP65 with connector
Special versions available on demand
