Series P solenoid valves

C_FLUID CONTROL CATALOGUE

2018

CONTROL >

CONTROL

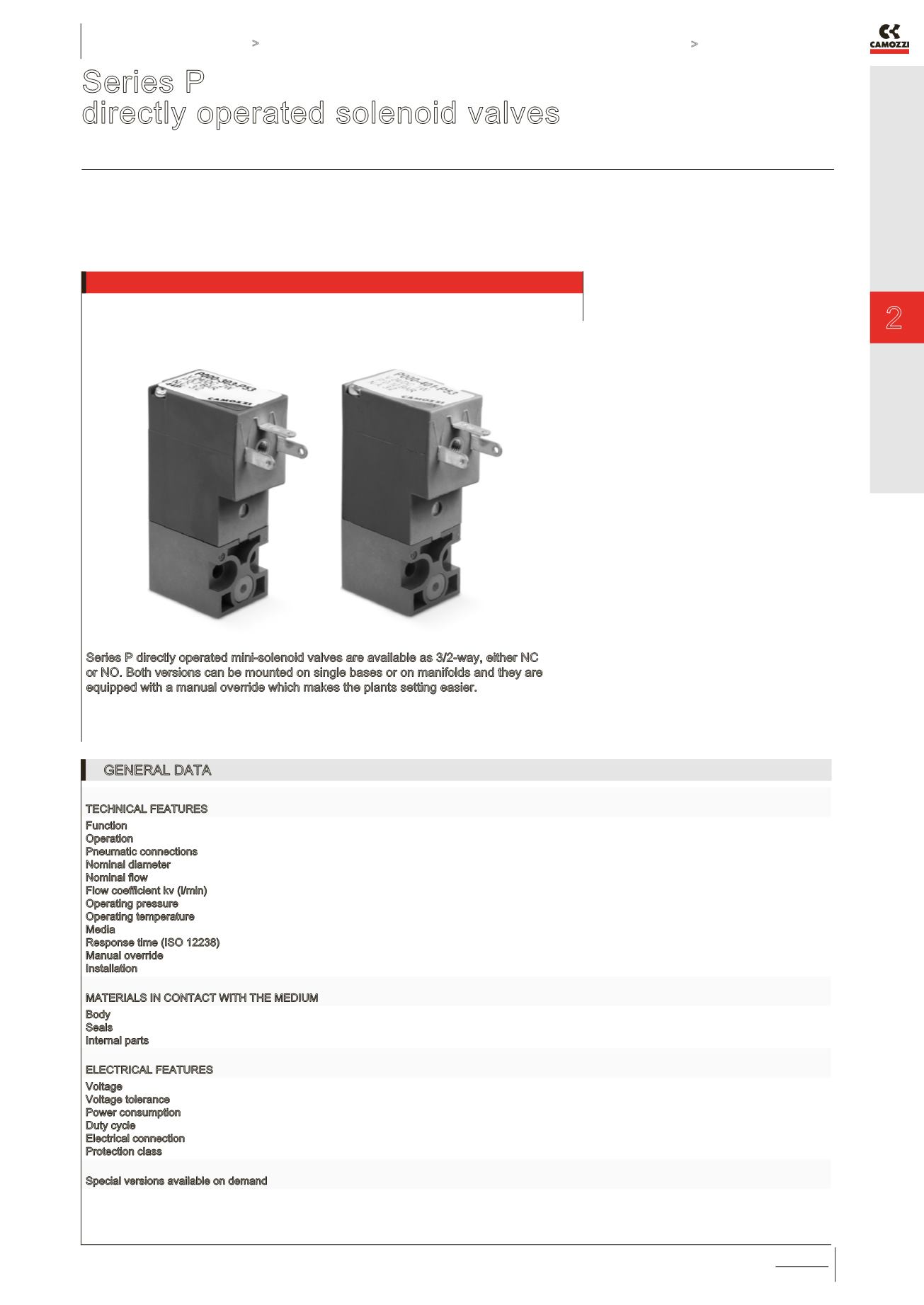

Series P

directly operated solenoid valves

3/2-way - Normally Closed (NC) and Normally Open (NO)

Series P directly operated mini-solenoid valves are available as 3/2-way, either NC

or NO. Both versions can be mounted on single bases or on manifolds and they are

equipped with a manual override which makes the plants setting easier.

Please note that all Series P solenoid valves

are supplied with direct current (DC).

To operate in alternating current (AC), it is

necessary to use the connector with bridge

rectifier Mod. 125-900.

Can be mounted on a single

base (M5 connections) or on

manifold (M5 connections

or cartridge ø 3 and 4).

GENERAL DATA

TECHNICAL FEATURES

Function

Operation

Pneumatic connections

Nominal diameter

Nominal flow

Flow coefficient kv (l/min)

Operating pressure

Operating temperature

Media

Response time (ISO 12238)

Manual override

Installation

3/2 NC - 3/2 NO

direct acting poppet type

on subbase with ISO 15218 interface by means of screws

0.8 … 1.5 mm

14 … 35 Nl/min (air @ 6 bar ΔP 1 bar)

0.21 … 0.54

0 ÷ 3 … 10 bar

0°C ÷ 50°C

filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas

ON <10 msec - OFF <15 msec

monostable button

in any position

MATERIALS IN CONTACT WITH THE MEDIUM

Body

Seals

Internal parts

PBT technopolymer

FKM, NBR (FKM on demand)

stainless steel

ELECTRICAL FEATURES

Voltage

Voltage tolerance

Power consumption

Duty cycle

Electrical connection

Protection class

12 … 110 V DC - 24 … 110 V AC 50/60 Hz

±10%

2 W - 1 W (24 V DC only)

ED 100%

with industrial standard connector (9.4 mm)

IP65 with connector

Special versions available on demand
