Round Body Cylinders
Series 27
Double-acting, magnetic
ø 20, 25, 32, 40, 50, 63

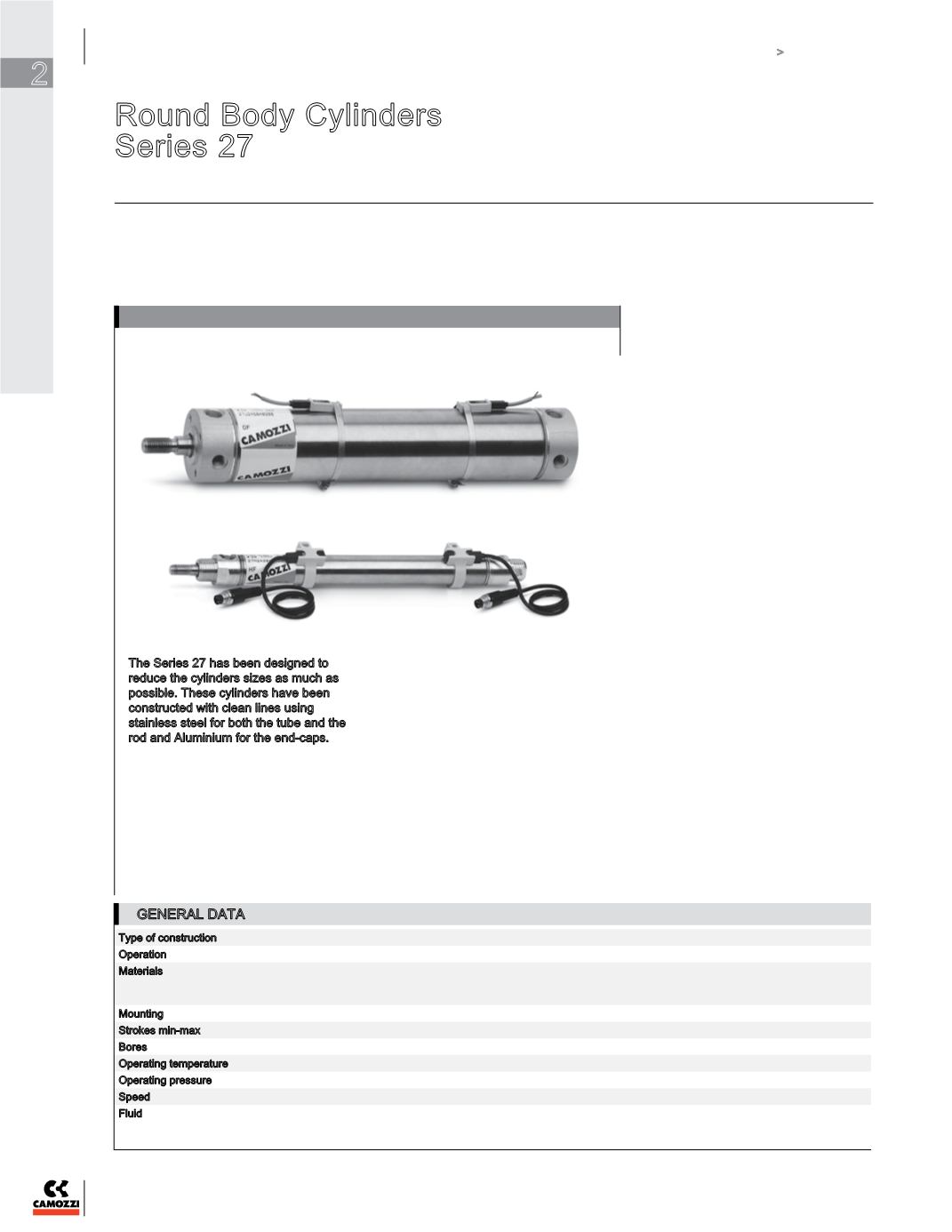

The Series 27 has been designed to
reduce the cylinders sizes as much as
possible. These cylinders have been
constructed with clean lines using
stainless steel for both the tube and the
rod and Aluminium for the end-caps.
The choice of material and other design
features have allowed to create a range
of versatile and reliable cylinders.
The precise method of securing the
tube to the end block ensures that
all the parts are perfectly aligned.
Mechanical cushioning has been fitted
on these cylinders in order to reduce
noise produced by the piston impact on
the end-caps. Cylinders Series 27 are
suitable for assembling with magnetic
sensors. Various mounting bracket
accessories enable the cylinders to
be fitted to suit the requirements of a
particular application.
GENERAL DATA
»
»
Reduced dimensions
»
»
Different mounting options
»
»
Perfect alignment,
perfect linearity
Type of construction crimped
Operation
double acting
Materials
end-caps = AL
piston = stainless steel
piston seals = thermoplastic resin - rod seals = PU
Mounting
feet - trunnion - steel bar - pins
Strokes min-max
all diameters 10 - 1000 mm
Bores
ø 20, 25, 32, 40, 50, 63
Operating temperature 0°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar, (14 - 145 psi)
Speed
10 – 1000
mm/sec (no load)
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication
should never be interrupted.
