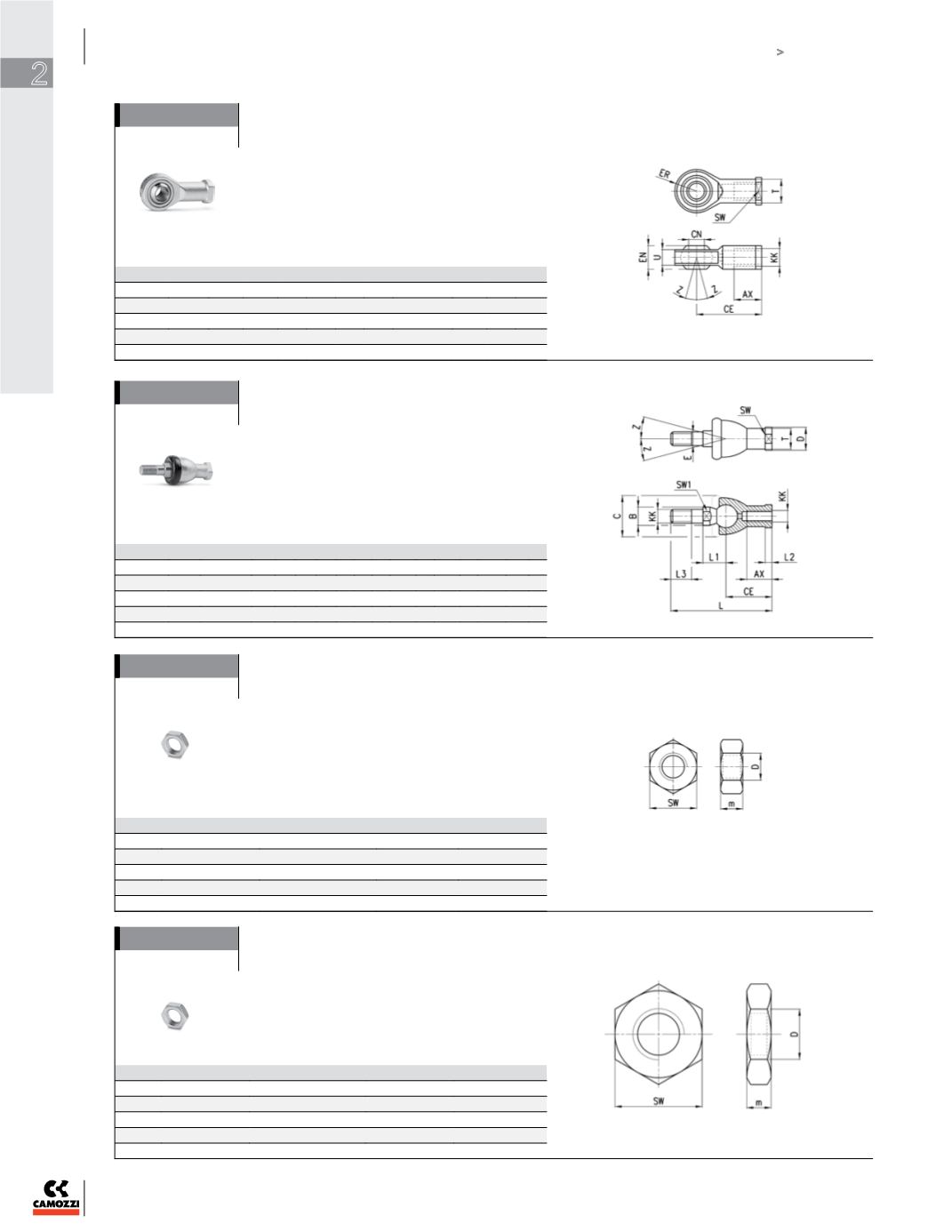

Swivel ball joint Mod. GA
Material: zinc-plated steel
ISO 8139
DIMENSIONS (mm)
Mod.
Ø ØCN
(
H7)
U EN ER AX CE
KK
ØT Z SW
GA-20
20
8
9 12 12 16 36
M8x1,25 12,5 6,5 14
GA-32
25-32 10 10,5 14 14 20 43
M10X1,25 15 6,5 17
GA-40
40-50 12 12 16 16 22 50
M12X1,25 17,5 6,5 19
GA-50-63
63
16 15 21 21 28 64
M16X1,5 22 7,5 22
Piston rod socket joint Mod.GY
Material: Zinc-Aluminum alloy and zinc-plated steel
DIMENSIONS (mm)
Mod.
Ø KK L CE L2 AX E ØB ØC T D L1 L3 SW1 SW Z
GY-20
20
M8X1,25 65 32 5 16 8 12 24 12,5 16 16 12 10 14 15
GY-32
25-32
M10X1,25 74 35 6,5 18 10 14 28 15 19 19,5 15 11 17 15
GY-40
40-50
M12X1,25 84 40 6,5 20 12 19 32 17,5 22 21 17 17 19 15
GY-50-63
63
M16X1,5 112 50 8 27 16 22 40 22 27 27,5 23 19 22 11
Piston rod nut Mod. U
Material: zinc-plated steel
UNI EN ISO 4035
DIMENSIONS (mm)
Mod.
Ø
D
m
SW
U-20
20
M8X1,25
5
13
U-25-32
20-32
M10X1,25
6
17
U-40
40-50
M12X1,25
7
19
U-50-63
63
M16X1,5
8
24
Nose nut Mod. V
Material: zinc-plated steel
UNI EN ISO 4035
V-27-25 / V-42-32 not according standard.
DIMENSIONS (mm)
Mod.
Ø
D
m
SW
V-12-16
20
M16X1,5
6
24
V-27-25
25
M18X1,5
5
24
V-20-25
32
M22X1,5
10
32
V-42-32
40
M30x1,5
8
-
