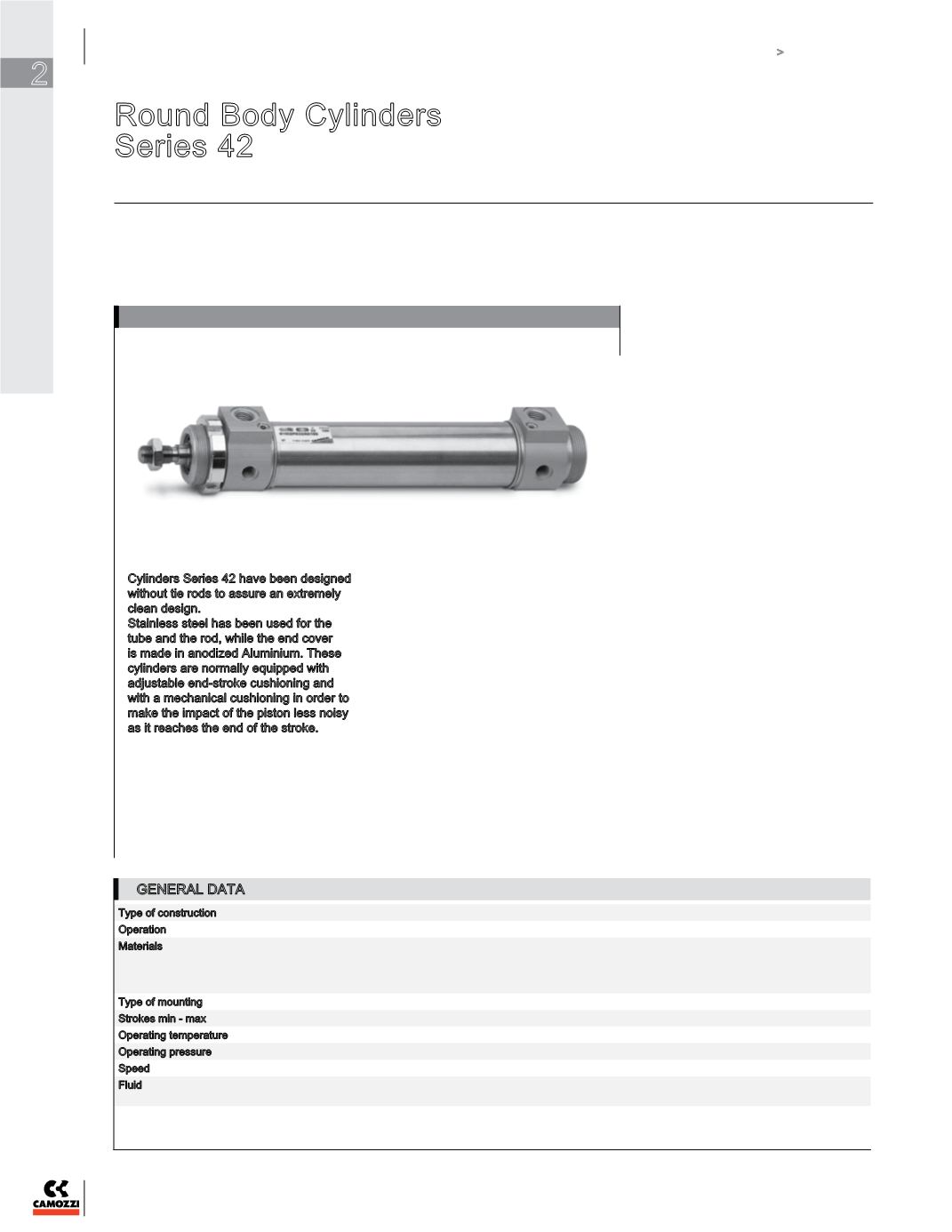

Round Body Cylinders
Series 42
Single or double-acting, magnetic, cushioned
Ø 32, 40, 50, 63
Cylinders Series 42 have been designed
without tie rods to assure an extremely
clean design.
Stainless steel has been used for the
tube and the rod, while the end cover
is made in anodized Aluminium. These
cylinders are normally equipped with
adjustable end-stroke cushioning and
with a mechanical cushioning in order to
make the impact of the piston less noisy
as it reaches the end of the stroke.
GENERAL DATA
»
»
Perfect alignment
»
»
Different mounting options
Type of construction compact - crimped
Operation
single-acting or double-acting
Materials
end-caps = AL
tube = stainless steel AISI 304
rod = stainless steel AISI 420B
other parts (see coding)
Type of mounting
front flange, rear flange, feet, front and rear trunnion, threaded pins
Strokes min - max
10 - 1000
mm
Operating temperature 0 – 80°C (with dry air 20°C)
Operating pressure
1 – 10
bar (double-acting); 2 – 10 bar (single-acting)
Speed
10 – 1000
mm/sec (NO LOAD)
Fluid
clean air, without lubrication.
If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
