NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
The company reserves the right to vary models and dimensions without notice.
These products are designed for industrial applications and are not suitable for sale to the general public.
ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
76

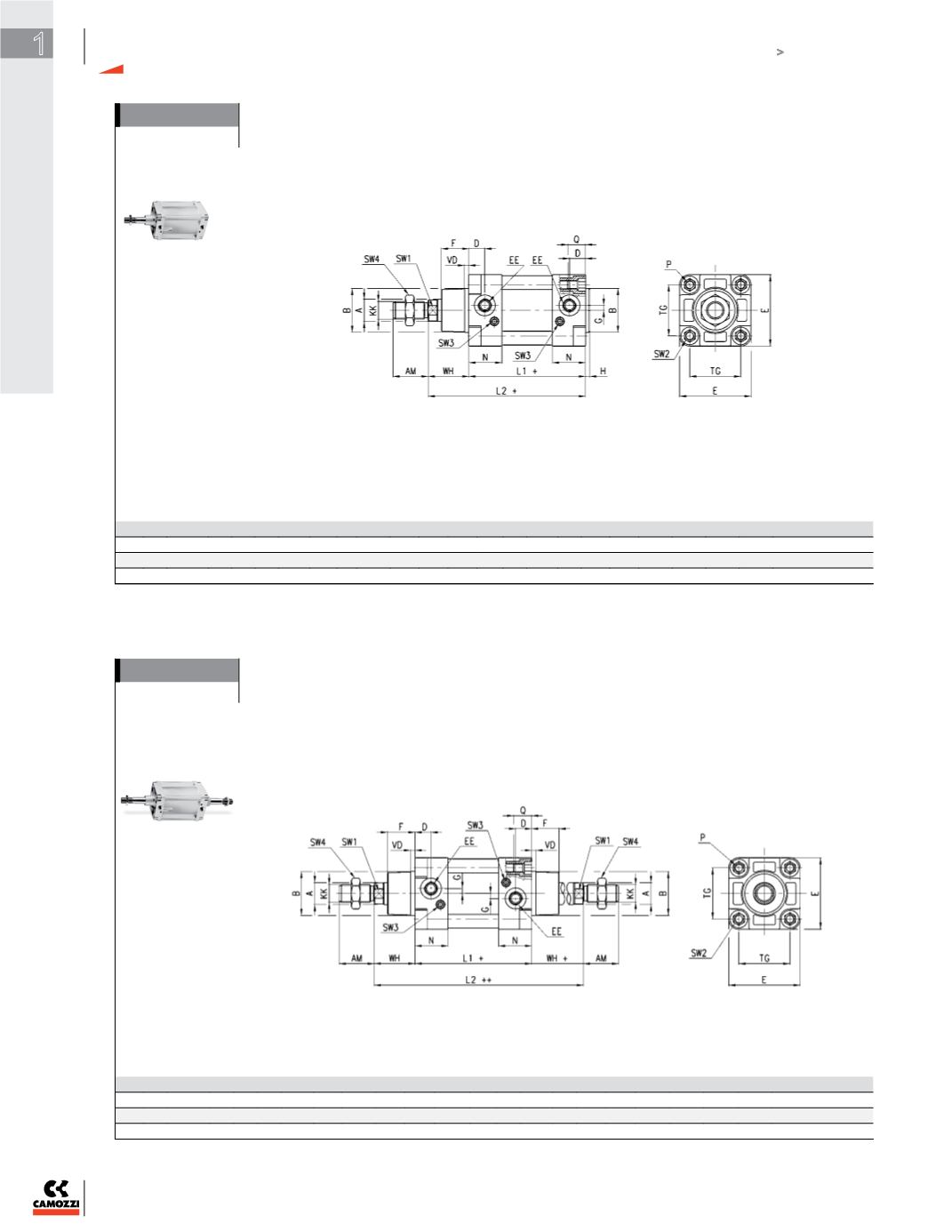

Cylinders Series 41
DIMENSIONS (mm)
Ø ØA KK ØB D G F AM H EE WH L1+ L2+ VD N P Q TG E SW1 SW2 SW3 SW4 cushioning front/rear
160
40
M36x2 65 25 12 53.5 72 6 G3\4 80 180 260 6 45 M16 26 140 176 36 17 4 55
29 / 36
200
40
M36x2 75 25 12 63.5 72 6 G3\4 95 180 275 6 45 M16 26 175 216 36 17 4 55
44 / 42
+ = add the stroke
Cylinders Series 41 - through-rod
DIMENSIONS (mm)
Ø A KK B D G F AM EE WH L1+ L2++ VD N P Q TG E SW1 SW2 SW3 SW4 cushioning front/rear
160
40
M36x2 65 25 12 53.5 72 G3\4 80 180 340 6 45 M16 26 140 176 36 17
4
55
29 / 36
200
40
M36x2 75 25 12 63.5 72 G3\4 95 180 370 6 45 M16 26 175 216 36 17
4
55
44 / 42
+ = add the stroke
++ = add the stroke 2 times
EXPRESS DELIVERY AVAILABLE
