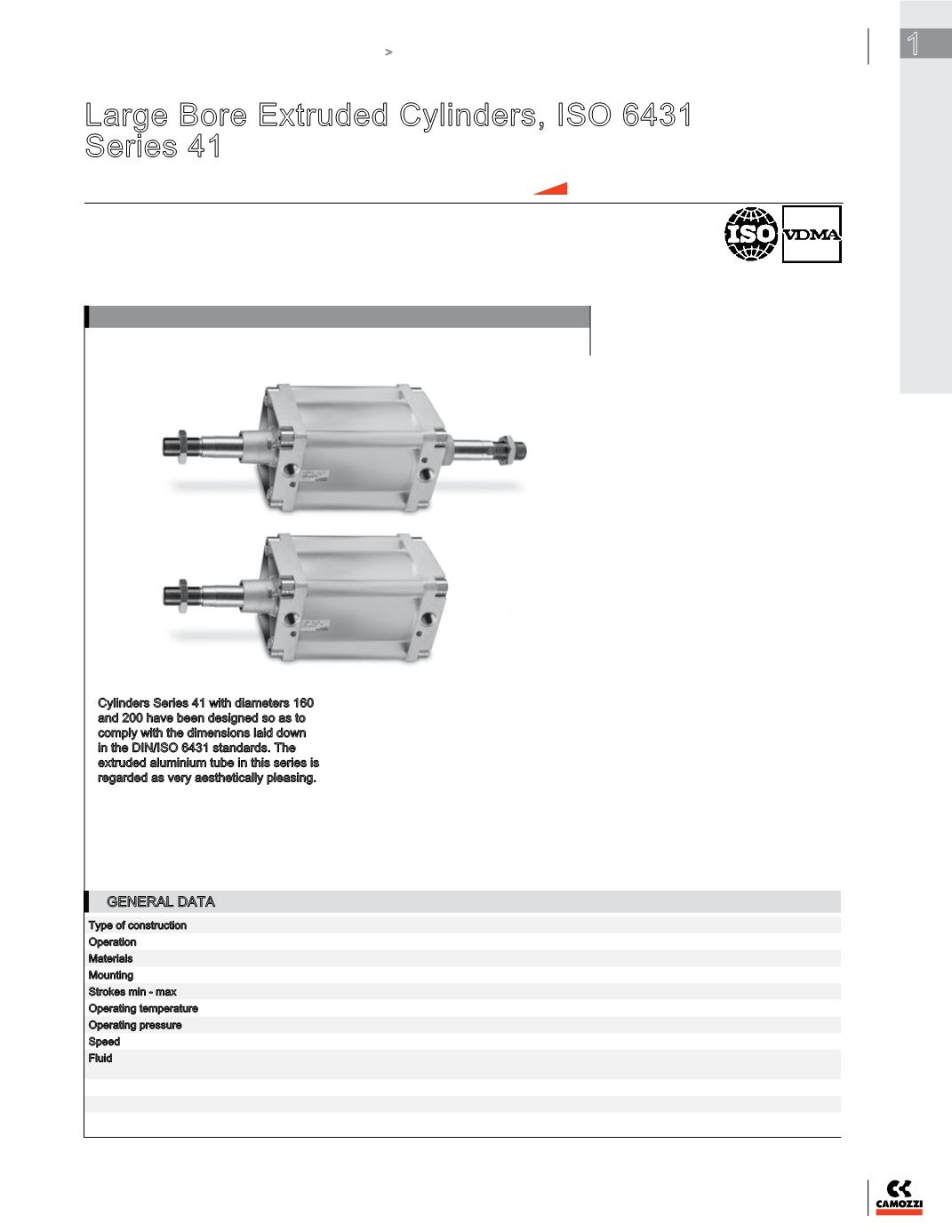

Large Bore Extruded Cylinders, ISO 6431
Series 41
Double-acting cushioned, magnetic
ø160 - 200 (DIN/ISO 6431)
Cylinders Series 41 with diameters 160
and 200 have been designed so as to
comply with the dimensions laid down
in the DIN/ISO 6431 standards. The
extruded aluminium tube in this series is
regarded as very aesthetically pleasing.
The mounting brackets used on the end-
caps tube are designed in an extremely
secure way, making use of the cylinder
tie-rods positioned internally and not
visible on the assembled cylinders. This
cylinder series is normally equipped with
adjustable cushioning.
Moreover, to reduce the noise of the
impact of the piston and end-caps, these
cylinders are equipped with a mechanical
cushioning.
GENERAL DATA
»
»
DIN/ISO 6431 VDMA 24562
»
»
Rolled stainless steel rod
»
»
Adjustable cushioning
»
»
Aluminum Profile
Type of construction with tie-rods
Operation
double-acting
Materials
end-caps = AL; other parts: see coding
Mounting
with tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination
Strokes min - max
10 – 2500
mm
Operating temperature 0°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar
Speed
10 – 500
mm/sec (without load)
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication
should never be interrupted.
EXPRESS DELIVERY AVAILABLE
