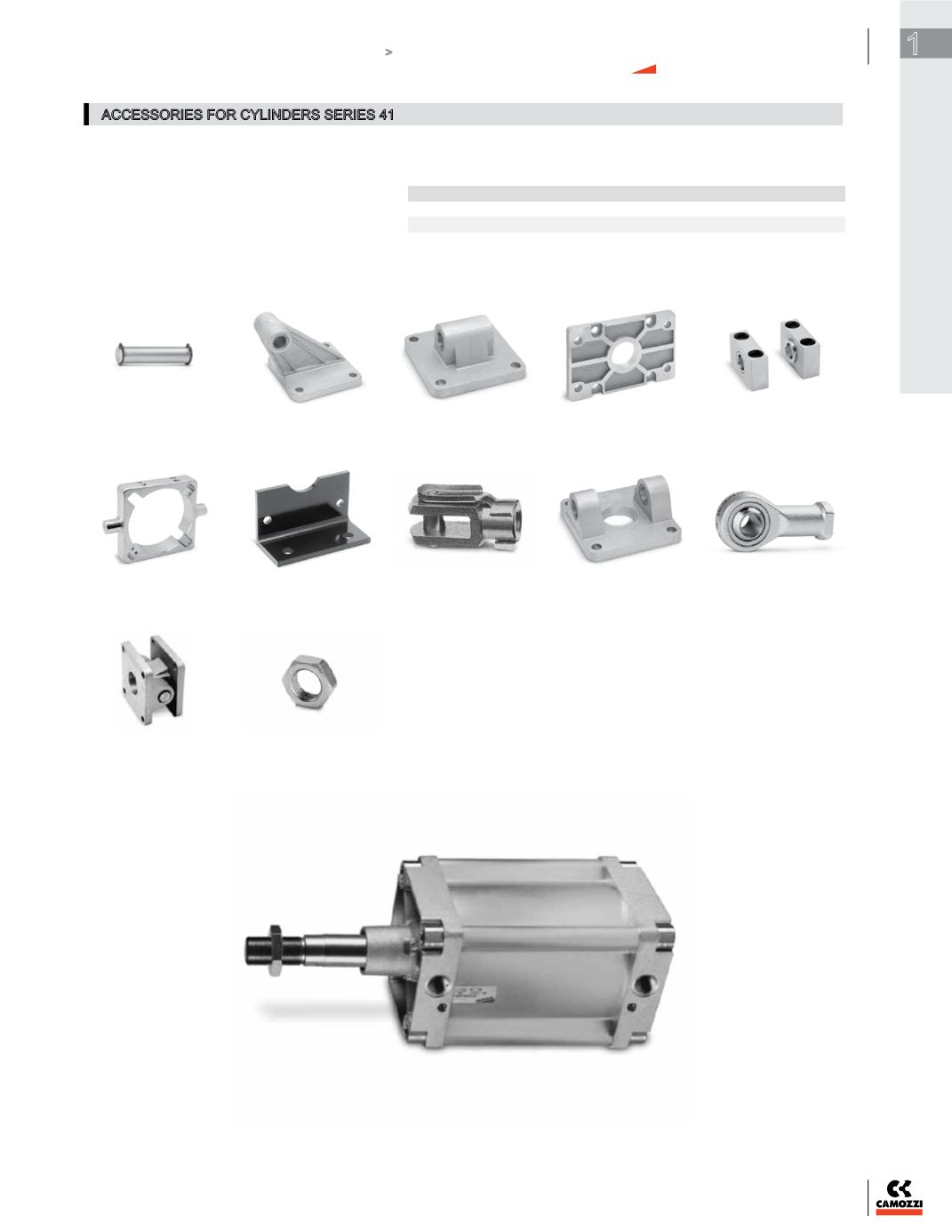

ACCESSORIES FOR CYLINDERS SERIES 41
Clevis pin Mod. S
90
° swivel combination
Mod. ZS
Rear trunnion, male
Mod. L
Front and rear flange
Mod. D-E
Counter bracket for
centre trunnion Mod. BF
Centre trunnion Mod. F Foot mount Mod. B
Rod fork end Mod. G
All accessories are supplied separately, except for the piston rod nut Mod. U
Front and rear female
trunnion Mod. C-H
Swivel ball joint Mod. GA
Swivel combination
Mod. I
Piston rod nut Mod. U
MAXIMUM STROKE LENGTHS (mm)
Series (and Ø)
Min-Max Stroke (Produced in USA)
Min-Max Stroke (Produced in Italy)
40, 41 (
Ø 160-320)
10-1500
mm
10-2500
mm
