NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
The company reserves the right to vary models and dimensions without notice.
These products are designed for industrial applications and are not suitable for sale to the general public.
ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
67

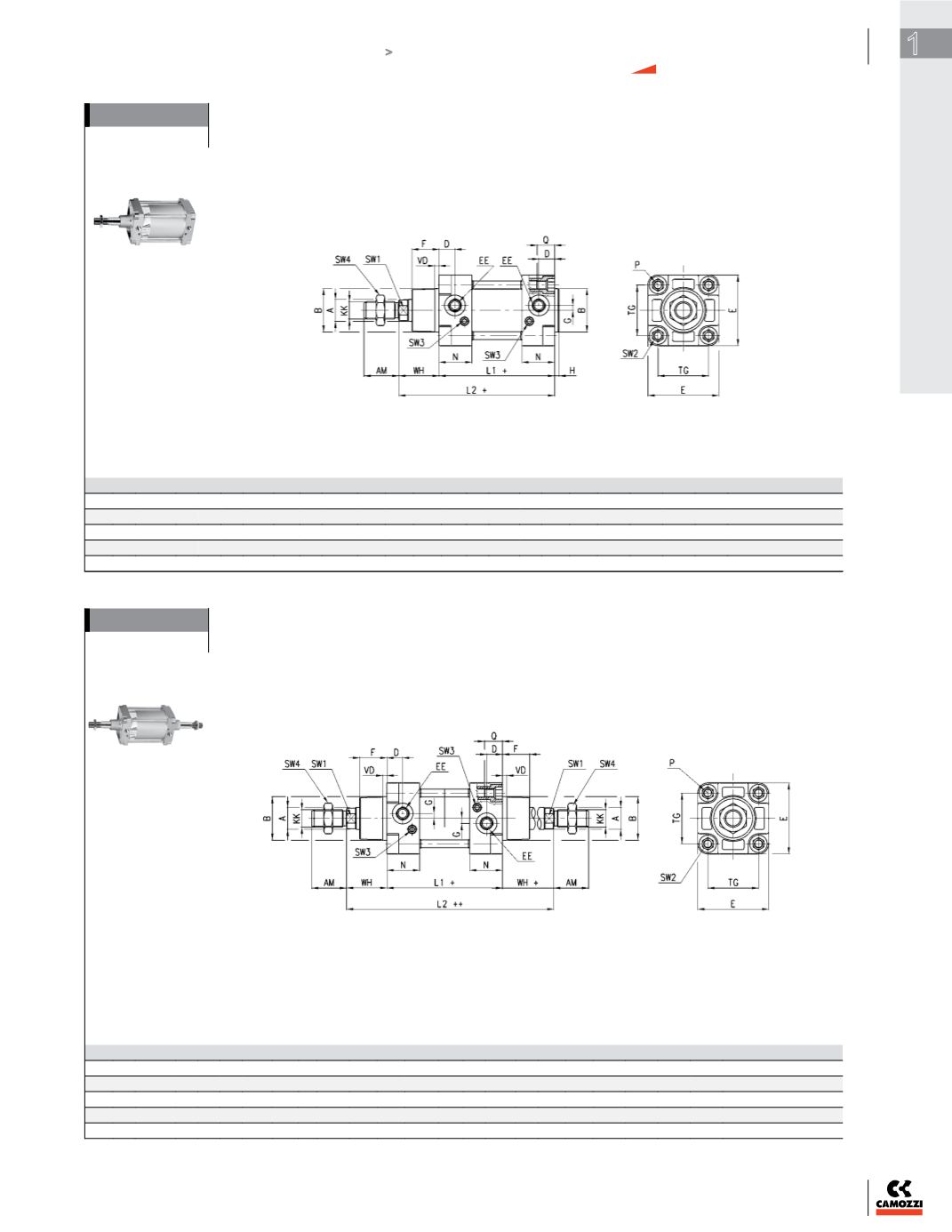

Cylinders Series 40
DIMENSIONS (mm)
Ø ØA KK ØB D G F AM H EE WH L1+ L2+ VD N P Q TG E SW1 SW2 SW3 SW4 cusion strokes front/rear
160
40
M36x2 65 25 12 53.5 72 6 G3\4 80 180 260 6 45 M16 26 140 176 36 17 4 55
29 / 36
200
40
M36x2 75 25 12 63.5 72 6 G3\4 95 180 275 6 45 M16 26 175 216 36 17 4 55
44 / 42
250
50
M42x2 90 31 12 67 84 10 G1 105 200 305 6 60 M20 26 220 270 46 19 6
50 / 50
320
63
M48x2 110 31 12 83 96 10 G1 120 220 340 12 55,5 M24 28 270 340 55 -
-
75
56 / 56
+ = add the stroke
Cylinders Series 40 - through-rod
DIMENSIONS (mm)
Ø ØA KK ØB D G F AM H EE WH L1+ L2++ VD N P Q TG E SW1 SW2 SW3 SW4 cushion strokes front/rear
160
40
M36x2 65 25 12 53.5 72 6 G3\4 80 180 340 6 45 M16 26 140 176 36 17 4 55
29 / 36
200
40
M36x2 75 25 12 63.5 72 6 G3\4 95 180 370 6 45 M16 26 175 216 36 17 4 55
44 / 42
250
50
M42x2 90 31 12 67 84
G1 105 200 410 6 60 M20 26 220 270 46 19
50 / 50
320
63
M48x2 110 31 12 83 96 10 G1 120 220 460 12 55,5 M24 28 270 340 55 -
-
75
56 / 56
+ = add the stroke
++ = add the stroke twice
EXPRESS DELIVERY AVAILABLE
