Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
145

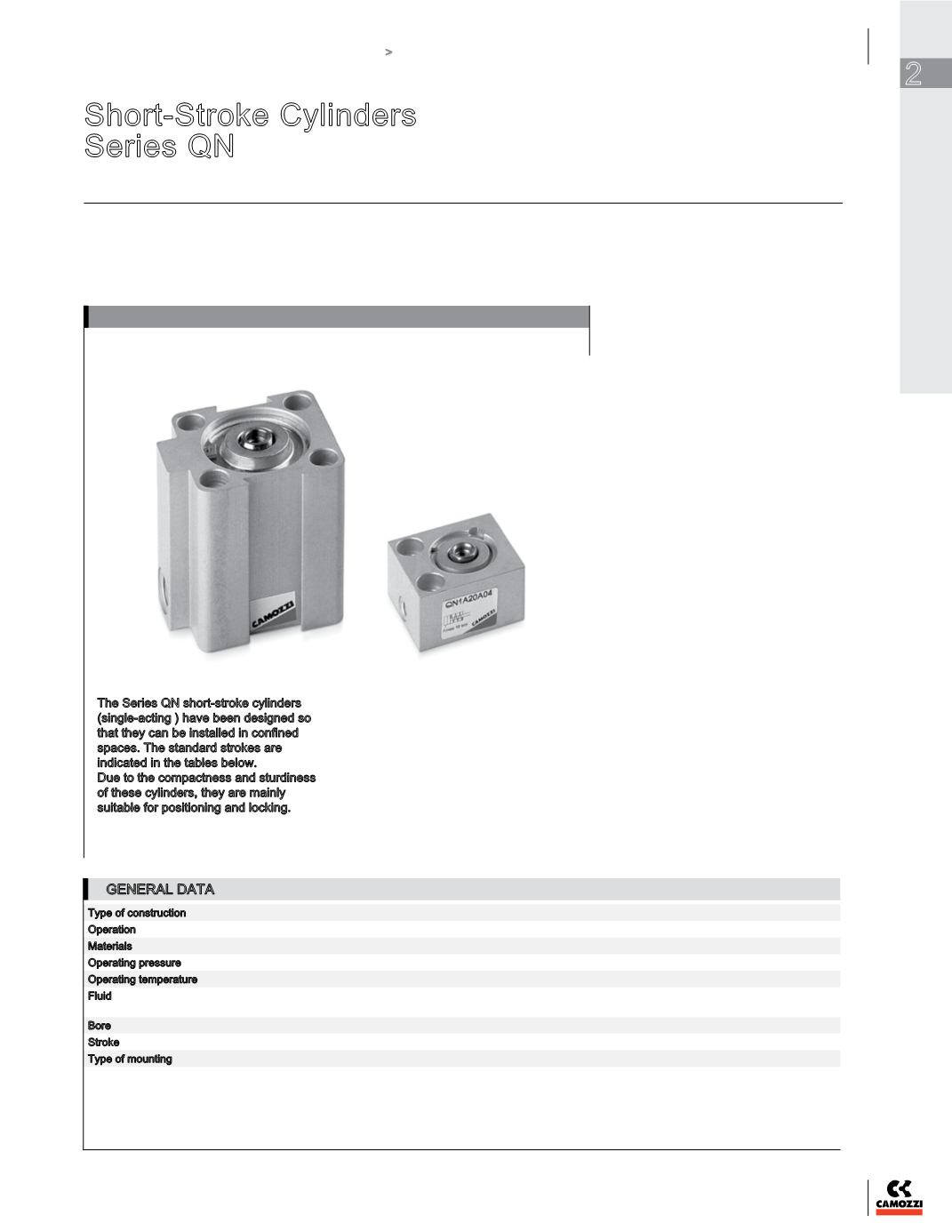

Short-Stroke Cylinders
Series QN
Single-acting, non magnetic
ø 8, 12, 20, 32, 50, 63
The Series QN short-stroke cylinders
(
single-acting ) have been designed so
that they can be installed in confined
spaces. The standard strokes are
indicated in the tables below.
Due to the compactness and sturdiness
of these cylinders, they are mainly
suitable for positioning and locking.
GENERAL DATA
Type of construction compact
Operation
single-acting
Materials
body = AL - seals = NBR - other = stainless steel and brass
Operating pressure
P. min 2 bar P. max 10 bar, (29 - 145 psi)
Operating temperature 0°C – 80°C (with dry air - 20°C), (32 - 176°F, with dry air -4°F)
Fluid
clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should
never be interrupted.
Bore
ø 8, 12, 20, 32, 50, 63
Stroke
see table
Type of mounting
by means of holes in body
