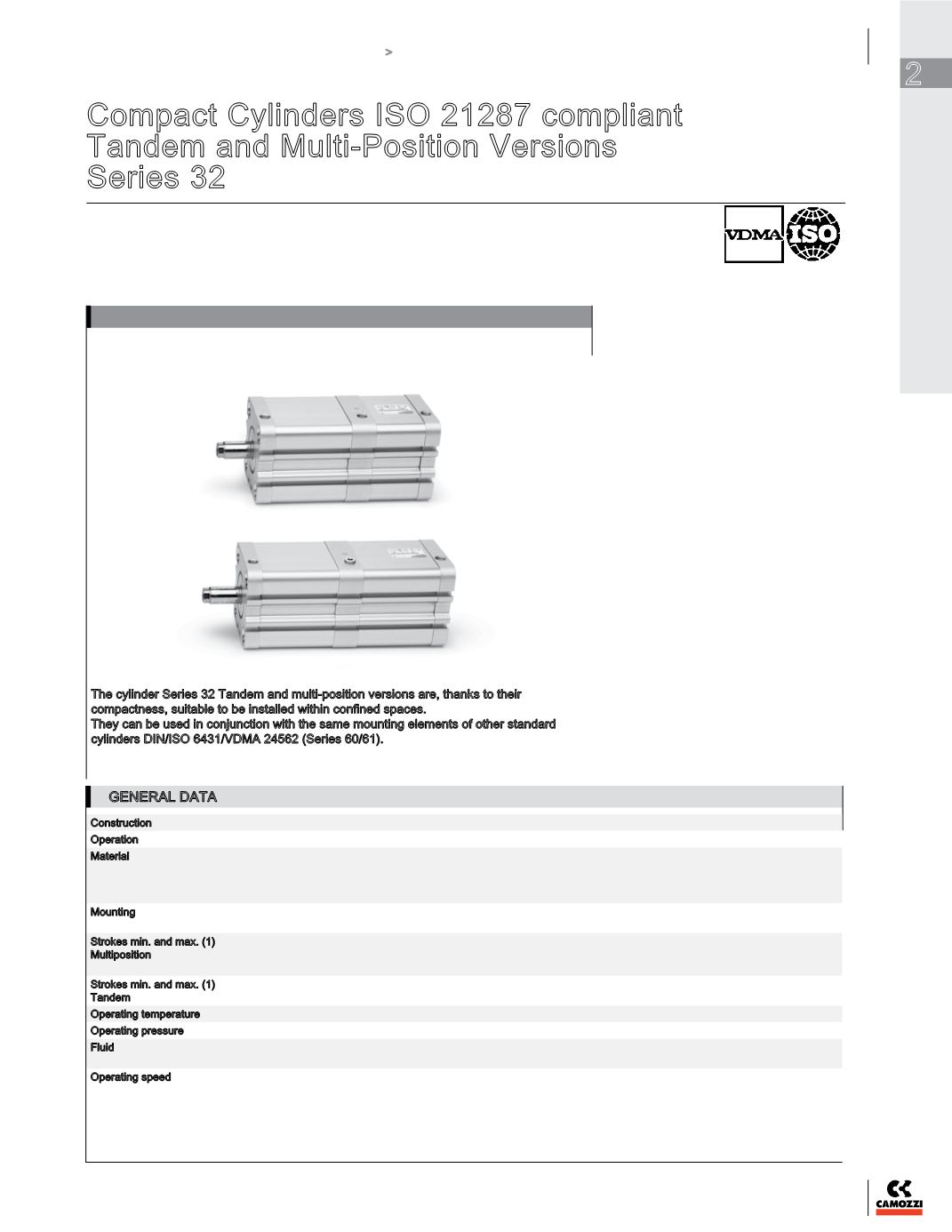

Compact Cylinders ISO 21287 compliant
Tandem and Multi-Position Versions
Series 32
Double-acting, magnetic, ø 25, 40, 63, 100.
The cylinder Series 32 Tandem and multi-position versions are, thanks to their
compactness, suitable to be installed within confined spaces.
They can be used in conjunction with the same mounting elements of other standard
cylinders DIN/ISO 6431/VDMA 24562 (Series 60/61).
The extreme compact Tandem version
allows to obtain up to 2 times the force of
a normal cylinder, while the multi-position
version allows to obtain up to three positions
with only one cylinder.
GENERAL DATA
»
»
Compact design
»
»
Wide variety of
models available in
different diameters
»
»
In compliance with
ISO 21287
Construction
compact profile
Operation
double-acting, magnetic
Material
body and end-caps = anodized AL
rod = rolled stainless steel AISI 303
piston = anodized AL
rod seal, OR end-block and piston seal = PU
Mounting
with threaded holes on the end blocks
flange – feet – trunnion
Strokes min. and max. (1)
Multiposition
Series 32F, 32M Ø 25 = 5-300 mm (dimension x2)
Series 32F, 32M Ø 40 - 63 = 5-400 mm (dimension x2)
Series 32F, 32M Ø 100 = 5-500 mm (dimension x2)
Strokes min. and max. (1)
Tandem
Series 32F, 32M Ø 25 = 5-80 mm
Series 32F, 32M Ø 40 - 63 - 100 = 5-100 mm
Operating temperature
0
°C – 80°C (with dry air -20°C), (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar, (14 - 145 psi)
Fluid
clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication
should never be interrupted.
Operating speed
10 – 1000
mm\sec (without load)
(1)
the minimum stroke for the use of the sensors is 10 mm.
