COMPACT AND SHORT-STROKE CYLINDERS
Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
142
6512

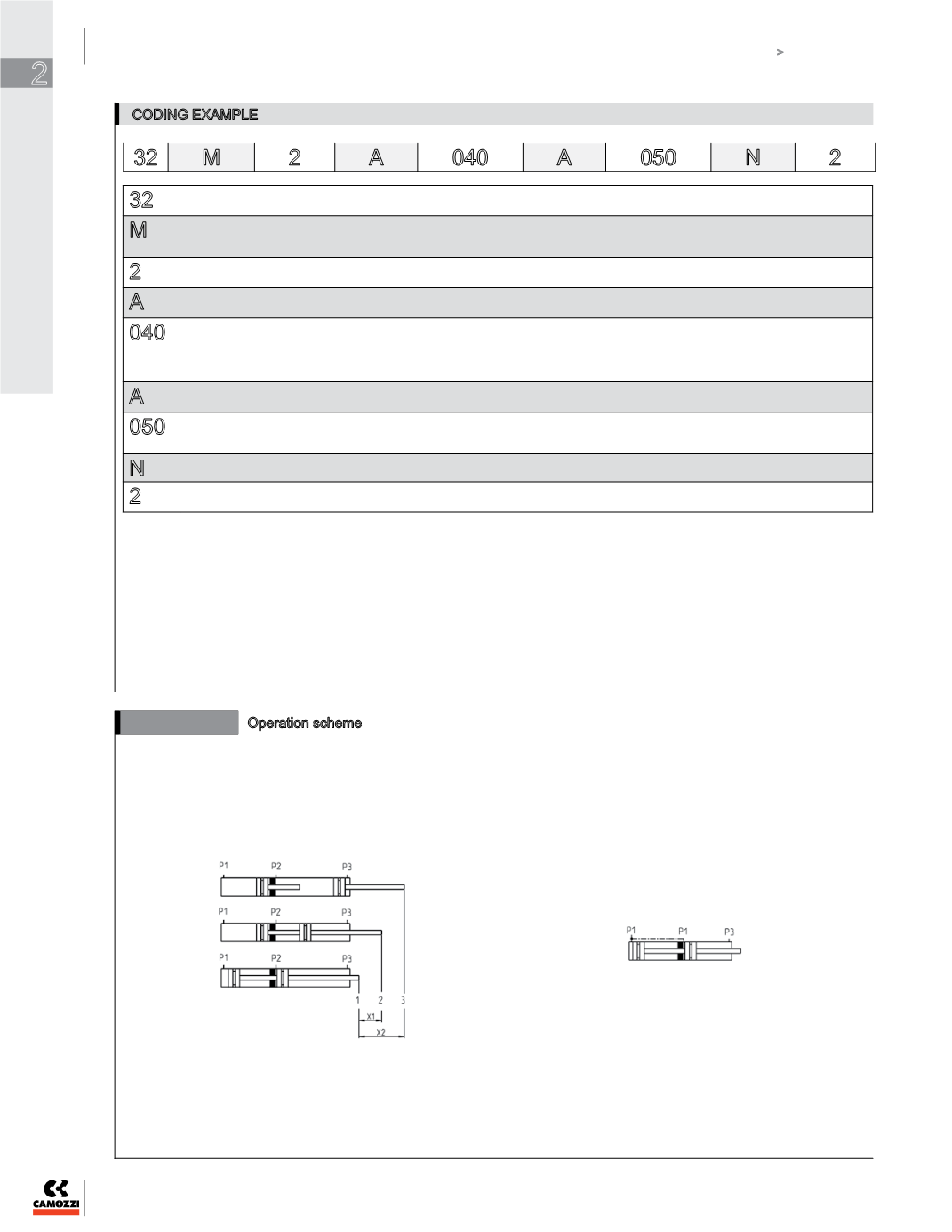

Operation scheme
Multi-position
Example: 32M2A040A25/75N
X1 = 25 mm
X2 = 75 mm
Tandem
Example: 32M2A040A050N2
Stroke = 50 mm
CODING EXAMPLE
32
M 2
A 040
A 050
N 2
32
SERIES:
compact magnetic
M
VERSION:
M = male rod thread
F = female rod thread
2
OPERATION:
2
= double-acting
A
MATERIALS:
A = anodized aluminium body, end blocks and piston – rod seal, OR end block and piston seal in PU
040
BORE:
025
= 25 mm
040
= 40 mm
063
= 63 mm
100
= 100 mm
A
CONSTRUCTION
A = standard
050
STROKE in mm
-
tandem stroke in mm
-
multi-position X1mm/X2mm - insert the strokes without the initial 0 (see application schemes ).
N
Tandem and multi-position
2
STAGES (only for tandem)
2
= 2 stages
