The company reserves the right to vary models and dimensions without notice.
These products are designed for industrial applications and are not suitable for sale to the general public.
Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
139

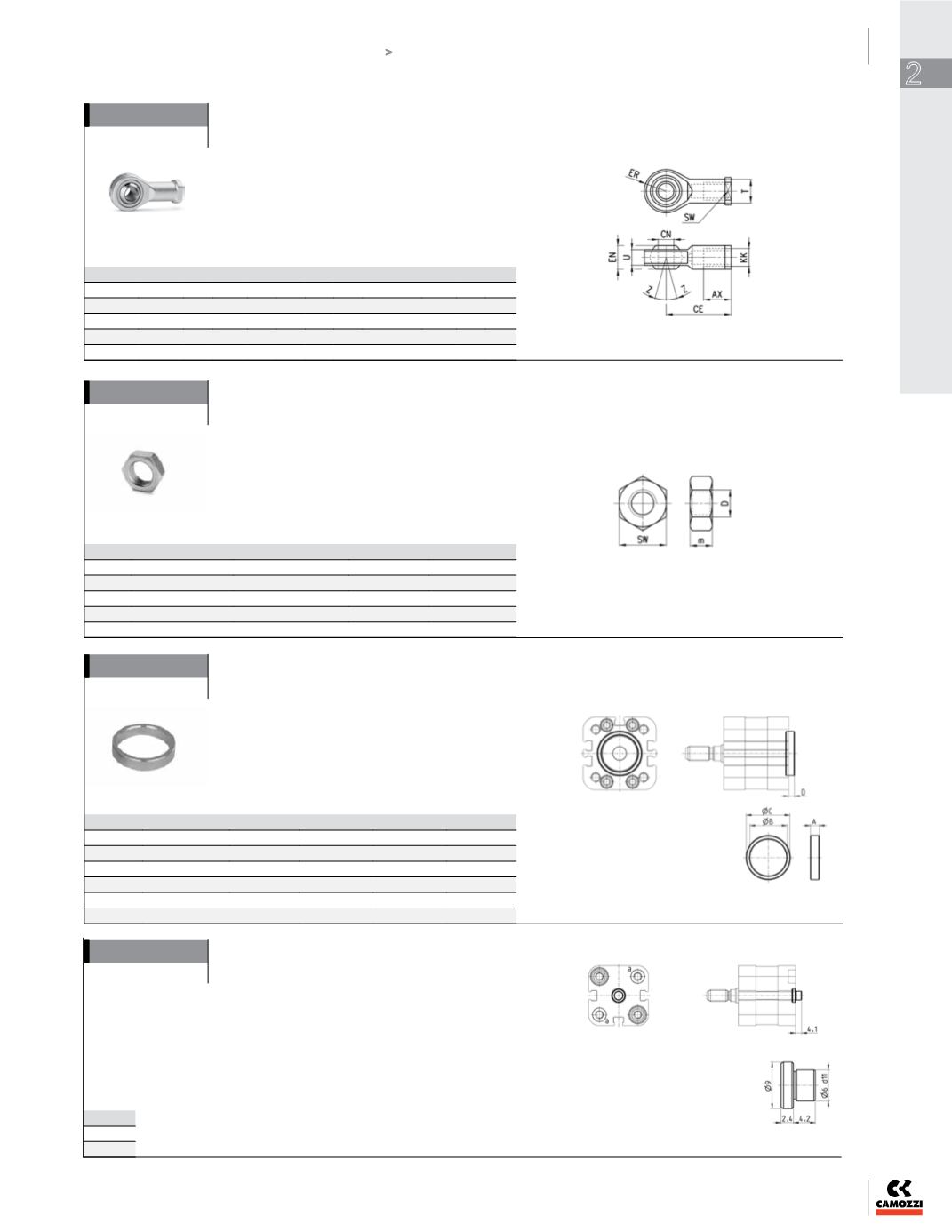

Swivel ball joint Mod. GA
DIMENSIONS (mm)
Mod.
Ø ØCN U EN ER AX CE
KK
ØT Z SW
GA-20
20-25 8
9 12 12 16 36
M8X1,25 12,5 6,5 14
GA-32
32-40 10 10,5 14 14 20 43
M10x1,25 15 6,5 17
GA-40
50-63 12 12 16 16 22 50
M12X1.25 17,5 6,5 19
GA-50-63
80-100 16 15 21 21 28 64
M16x1,5 22 7,5 22
Piston rod nut Mod. U
DIMENSIONS (mm)
Mod.
Ø
D
M
SW
U-20
20-25
M8X1.25
5
13
U-25-32
32-40
M10X1,25
6
17
U-40
50-63
M12X1,25
7
19
U-50-63
80-100
M16X1,5
8
24
Centering sleeve Mod. TR
Designed for the centering of both the rear and front
end caps with brackets Mod. B/D-E/C/C-H/H/L/R, as
for the centering of the cylinder while mounting.
DIMENSIONS (mm)
Mod.
Ø
A
ØB
ØC
D
TR-32-32
32
6
25
30
4
TR-32-40
40
6
30
35
4
TR-32-50
50
6
35
40
4
TR-32-63
63-80
7
40
45
5
TR-32-100
100
7
50
55
5
Centering pin Mod. TS-32-20
Designed both for the centering of the rear end caps
with brackets L-32-20 / L-32-25 as for the centring
of the cylinder while mounting.
Note: also suitable to use in holes “ a” of the rear
and front end caps of cylinders Ø20-Ø25 or in
the central hole of the rea end caps of cylinders
Ø32-Ø40.
Mod.
TS-32-20
Supplied with:
1
x centering ring
Supplied with:
1
x centering pin
Material: anodized AL
Material: anodized AL
