Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
137
90

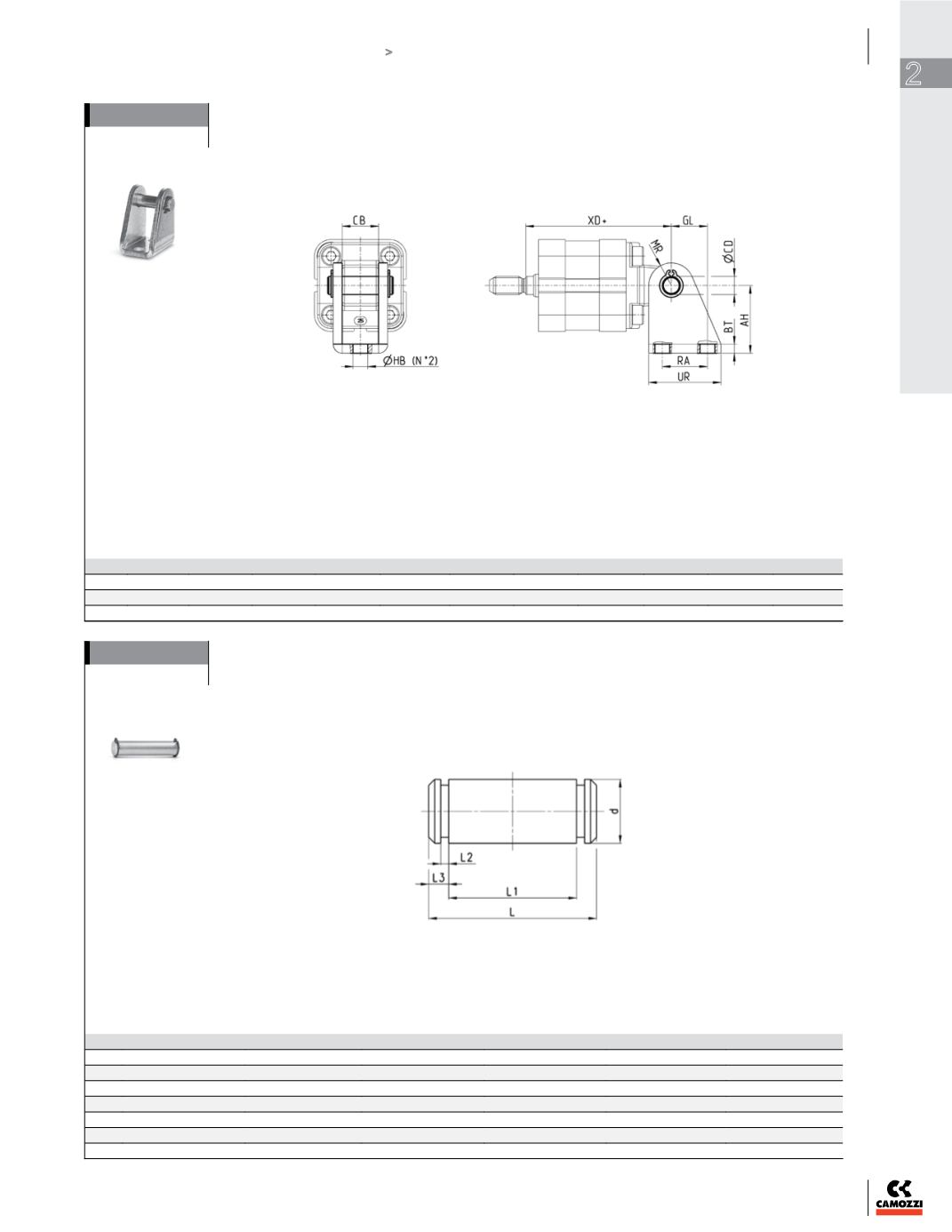

° swivel combination for trunnion Mod. I
Material: zinc-plated steel.
DIMENSIONS (mm)
Mod.
Ø
AT
BT
ØCD
CB
GL
ØHB
MR
RA
UR
XD
I-20-25
20
30
4
8
16,1
16
6,5
10
20
32
62,5
I-20-25
25
30
4
8
16,1
16
6,5
10
20
32
64,5
Supplied with:
1
x female support
2
x C-clips
1
x clevis pin
+ = add the stroke
Clevis pin Mod. S
DIMENSIONS (mm)
Mod.
Ø
D
L
L1
L2
L3
S-32
32
10
52
46
1,1
3
S-40
40
12
59
53
1,1
3
S-50
50
12
67
61
1,1
3
S-63
63
16
77
71
1,1
3
S-80
80
16
97
91
1,1
3
S-100
100
20
121
111
1,3
5
Supplied with:
1
x clevis pin (stainless steel)
2
x C-clips ( plain carbon steel )
