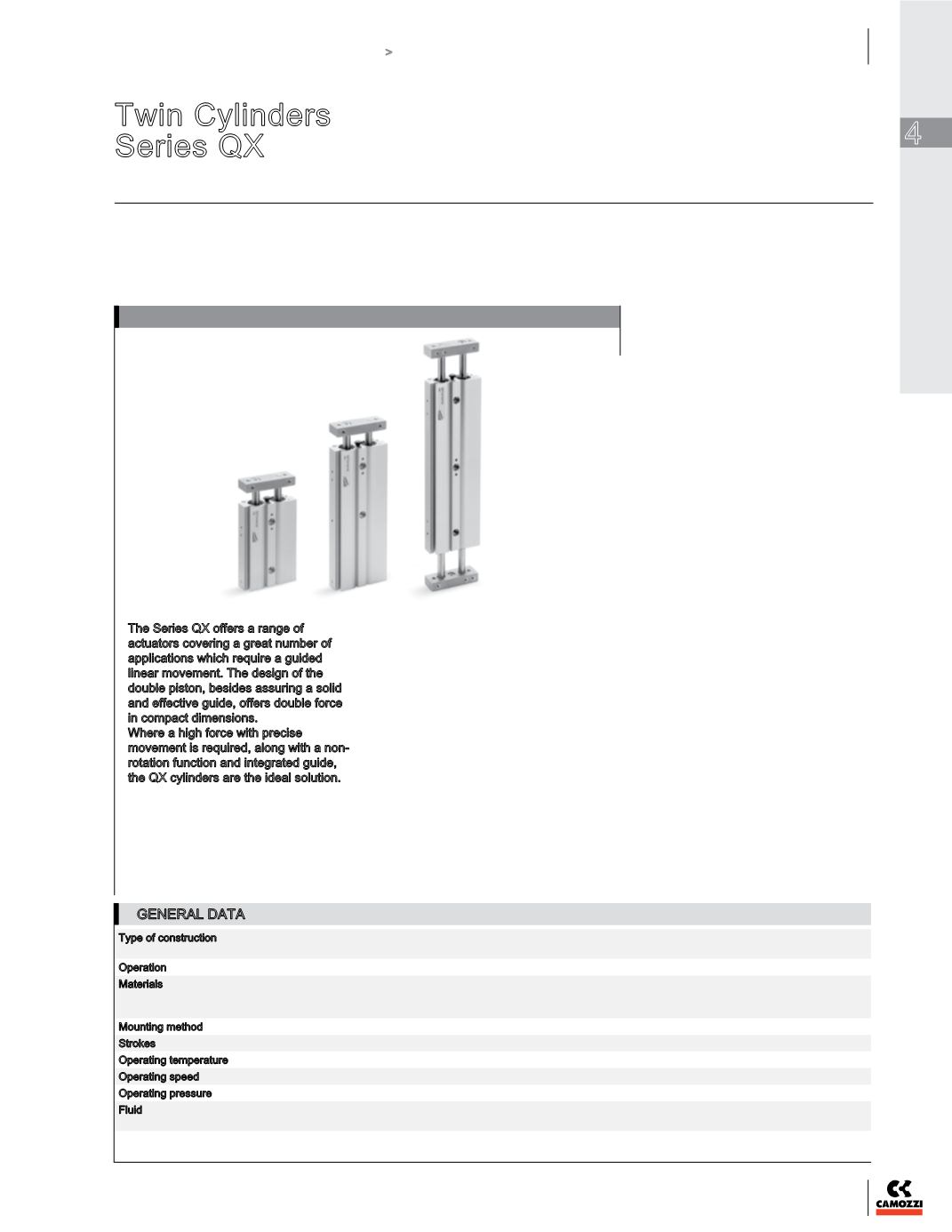

Twin Cylinders
Series QX
Double-acting, magnetic, guided
ø 10x2, 16x2, 20x2, 25x2, 32x2
The Series QX offers a range of
actuators covering a great number of
applications which require a guided
linear movement. The design of the
double piston, besides assuring a solid
and effective guide, offers double force
in compact dimensions.
Where a high force with precise
movement is required, along with a non-
rotation function and integrated guide,
the QX cylinders are the ideal solution.
The QX Series offers two guide versions,
with sintered bronze bushings or with
linear ball bearings.
GENERAL DATA
»
»
High force
»
»
Precise movement
»
»
Integrated piston-guide
»
»
QXB: linear ball bearings
»
»
QXT: sintered
bronze bushings
»
»
Utilizes Mod. CSC sensors
for direct mounting on
body extrusion slots
Type of construction compact, magnetic, mechanical bumpers
QXT = sintered bronze bushings - QXB = linear ball bearings
Operation
double-acting
Materials
body and flange = anodized AL
QXT piston rod = stainless steel AISI 303 - QXB piston rod = hardened carbon steel C50
seals = PU
Mounting method
by means of threaded body
Strokes
from 10 to 100
Operating temperature 0° – 80°C (with dry air - 20°C) , (32 - 176°F, with dry air -4°F)
Operating speed
50 – 500
mm/s
Operating pressure
1 – 10
bar (14 - 145 psi)
Fluid
clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32.
Once applied the lubrication should never be interrupted.
