Rodless and Guided/Twin-Bore Cylinders
4
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
RODLESS AND GUIDED/TWIN-BORE CYLINDERS
247
X = cylinder stroke in mm.
M = torque moment applied on the flange in Nm.
X = cylinder stroke in mm.
M = torque moment applied on the flange in Nm.

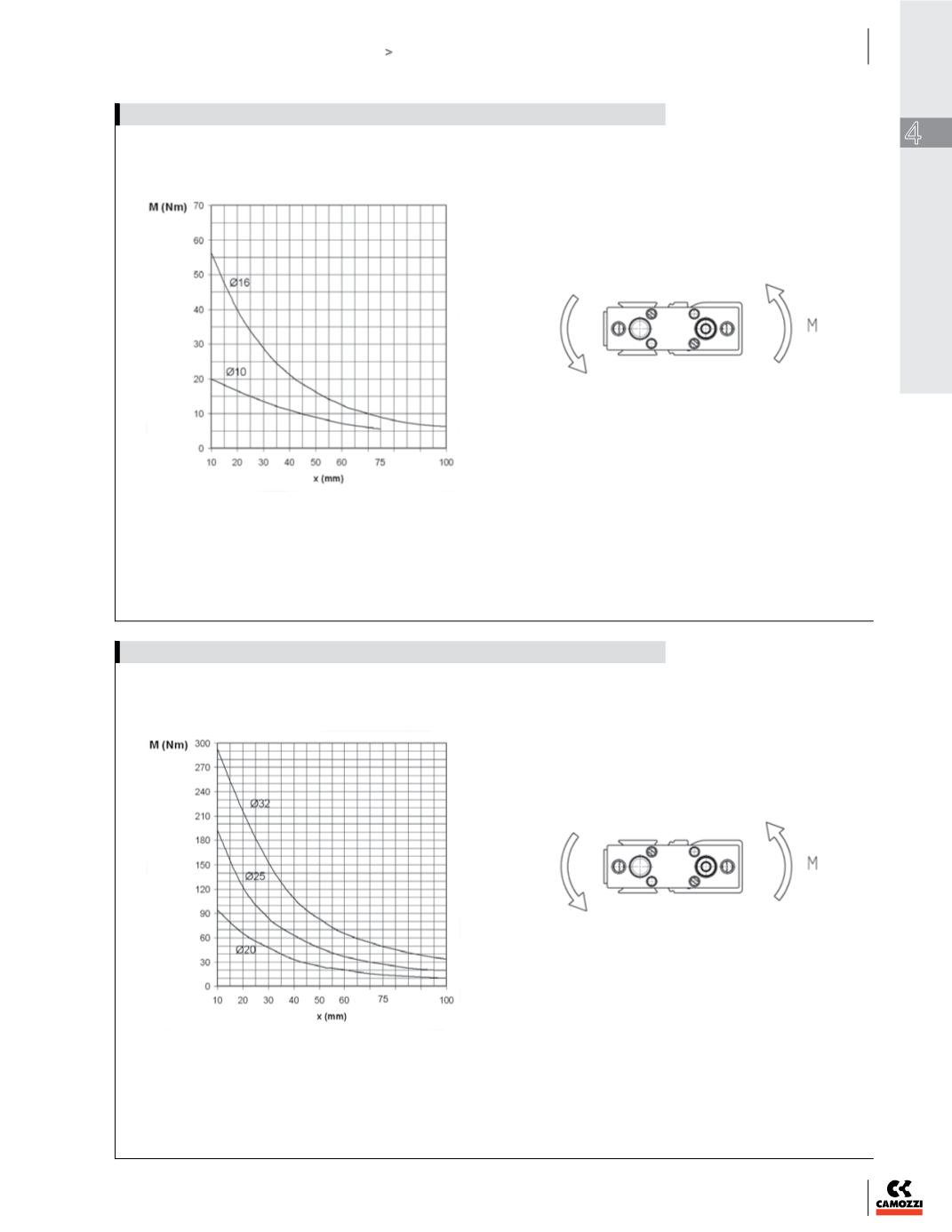

DIAGRAM MAX TORQUE MOMENT DEPENDING ON THE STROKE (X)
DIAGRAM MAX TORQUE MOMENT DEPENDING ON THE STROKE (X)
