Rotary Actuators and Grippers
5
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
ROTARY ACTUATORS AND GRIPPERS
291

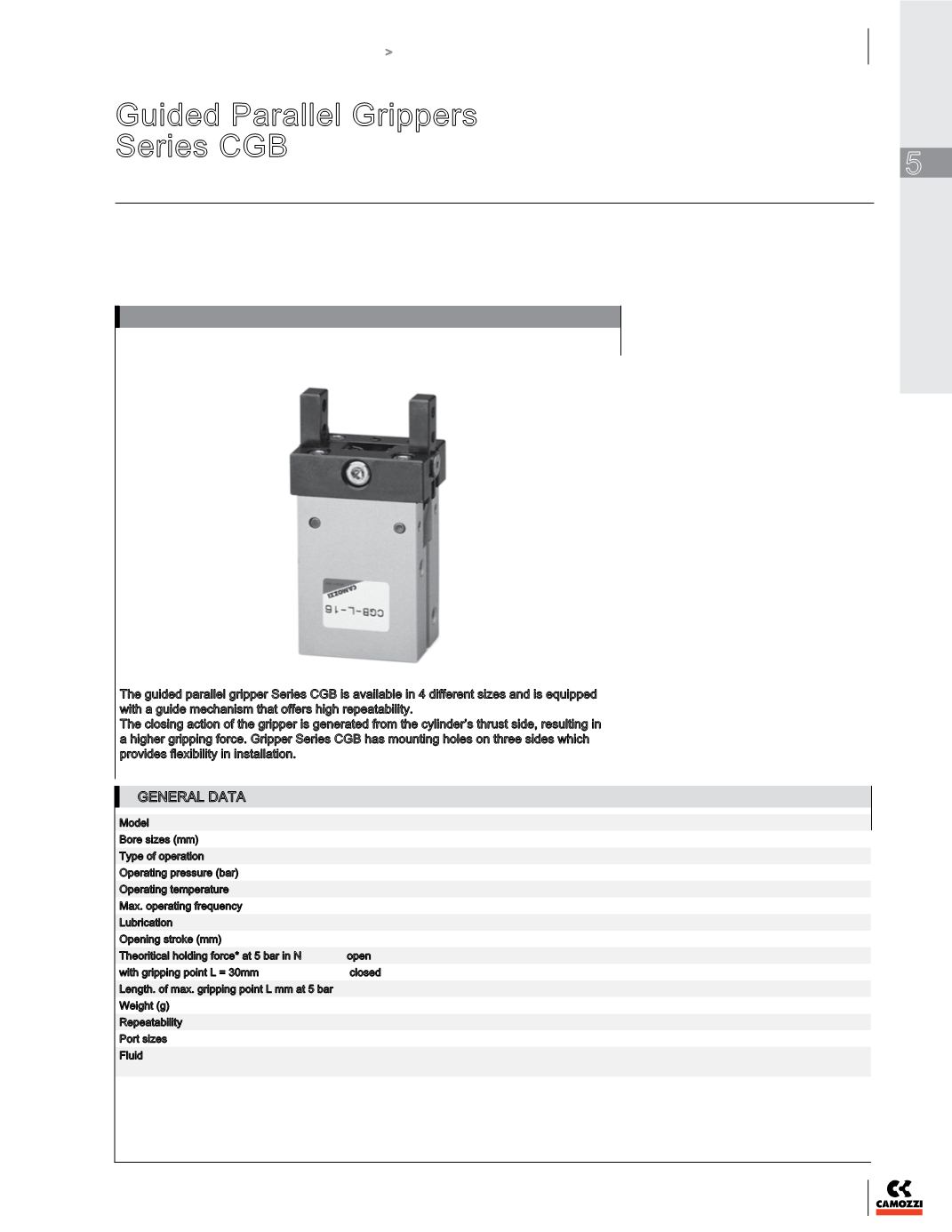

Guided Parallel Grippers
Series CGB
Magnetic
Sizes 16 - 20 - 25 - 32
The guided parallel gripper Series CGB is available in 4 different sizes and is equipped
with a guide mechanism that offers high repeatability.
The closing action of the gripper is generated from the cylinder’s thrust side, resulting in
a higher gripping force. Gripper Series CGB has mounting holes on three sides which
provides flexibility in installation.
The proximity switches can be inserted in
the U-shaped grooves on the body.
For an easier installation the gripper
can also be equipped with an optional
installation adaptor mod. C-CGP (female) or
L-CGP (male).
GENERAL DATA
»
»
Guided mechanism which
allows high repeatability
»
»
Flexibility in installation
»
»
High gripping force
Model
CGB-L-16; CGB-L-20; CGB-L-25; CGB-L-32
Bore sizes (mm)
Ø16 Ø 20 Ø 25 Ø 32
Type of operation
double-acting, parallel type
Operating pressure (bar)
1.5 – 7
bar (22 - 102 psi)
Operating temperature
0
°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Max. operating frequency
180
cycles/min
Lubrication
lever section - lubrication required on sliding section
Opening stroke (mm)
Ø 16 = 6 Ø 20 = 8 Ø 25 =14 Ø 32 = 16
Theoritical holding force* at 5 bar in N open Ø 16 =24 Ø 20 = 47 Ø 25 = 75 Ø 32 = 100
with gripping point L = 30mm closed Ø 16 = 18 Ø 20 = 35 Ø 25 = 60 Ø 32 = 85
Length. of max. gripping point L mm at 5 bar
40 60 80 100
Weight (g)
Ø 16=160 Ø 20 = 280 Ø 25 = 495 Ø 32 = 785
Repeatability
+/- 0,01mm
Port sizes
M5
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32.
Once applied, the lubrication should never be interrupted.
