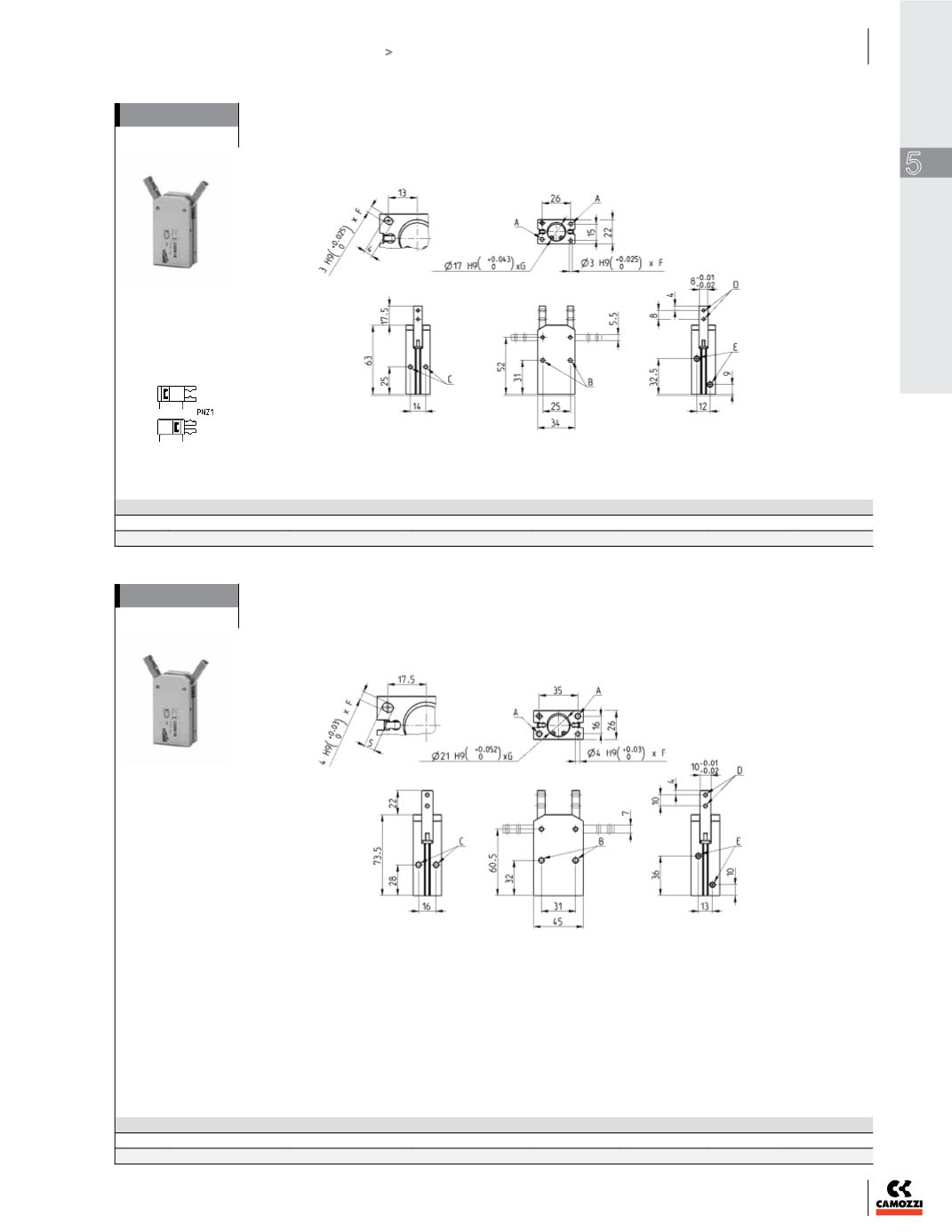

CGSN gripper, bore 16 mm - dimensions
Mod.
A [ Thread - Depth ]
B [ Thread - Depth ]
C [ Thread - Depth ]
D [ Thread ]
E [ Thread ]
F [ Depth ]
G [ Depth ]
CGSN-16
M4 - 7
M4 - 7
M4 - 7
M3
M5
3
1.5
A,B,C = mounting
thread
D = adaptor mounting
thread
E = opening/closing
connection ports
CGSN gripper, bore 20 mm - dimensions
Mod.
A [ Thread - Depth ]
B [ Thread - Depth ]
C [ Thread - Depth ]
D [ Thread ]
E [ Thread ]
F [ Depth ]
G [ Depth ]
CGSN-20
M5 - 8
M5 - 8
M5 - 8
M4
M5
4
1.5
A,B,C = mounting
thread
D = adaptor mounting
thread
E = opening/closing
connection ports
