ROTARY ACTUATORS AND GRIPPERS
Rotary Actuators and Grippers
5
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
282
CGSN
SERIES
PNEUMATIC SYMBOL
PNZ1
See the following pages
20
SIZES
16
= ø 16 mm
20
= ø 20 mm
25
= ø 25 mm
32
= ø 32 mm
CODING EXAMPLE
PARTS
MATERIALS
1
= Piston guide ring
2
= Bushing
3
= Body
4
= T-shackle
5
= Buffer seal
6
= Piston seal
7
= Piston rod seal
8
= Anti-friction guided lamina
9
= Finger lever
10
= Magnet
11
= Piston
12
= Rod
13
= Header
Polyacetalic
Bronze
Aluminium
Stainless steel
PU
NBR
PU
Bronze
Nickel-plated stainless steel
Plastoferrite
Aluminium
Stainless steel
Aluminium
CGSN -
20

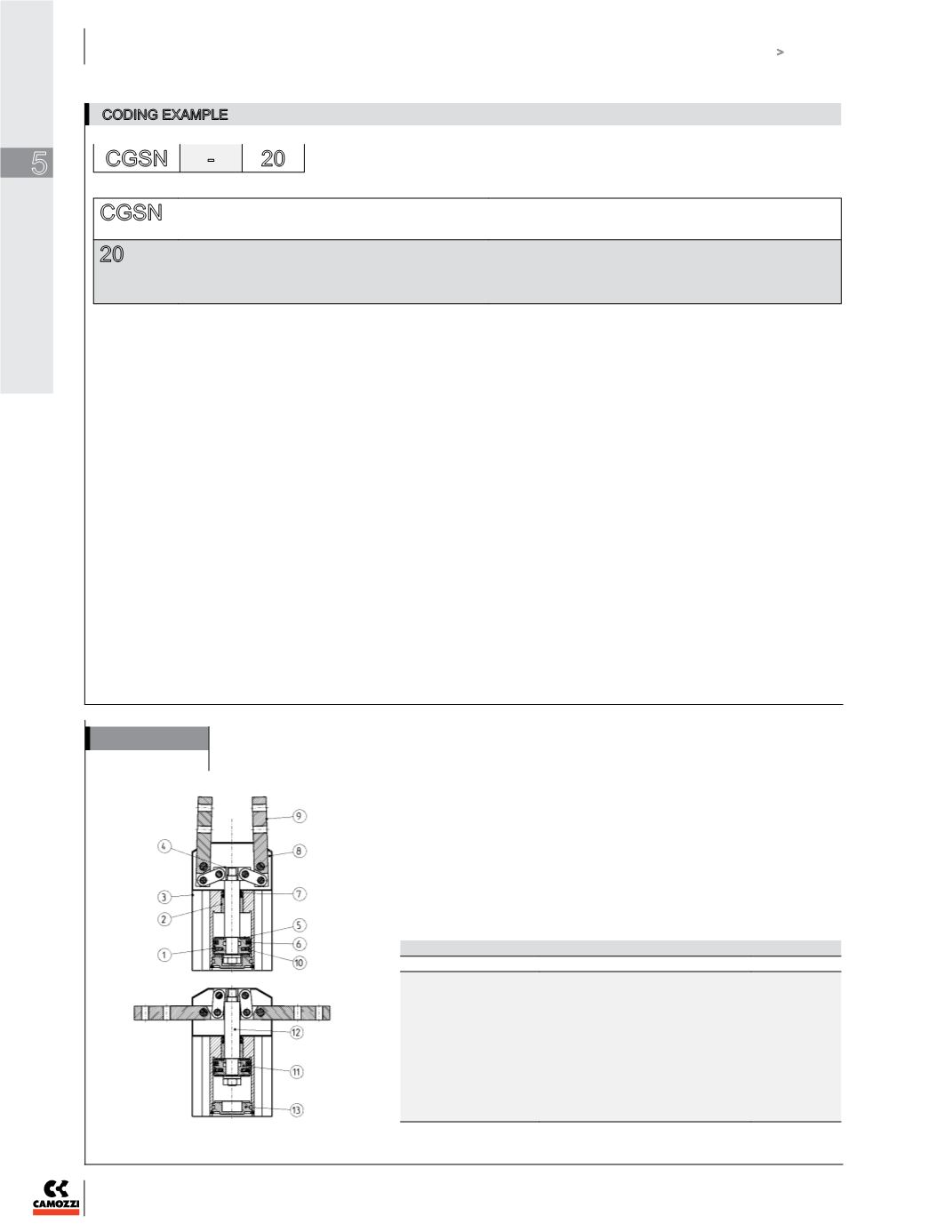

Gripper Series CGSN - construction
