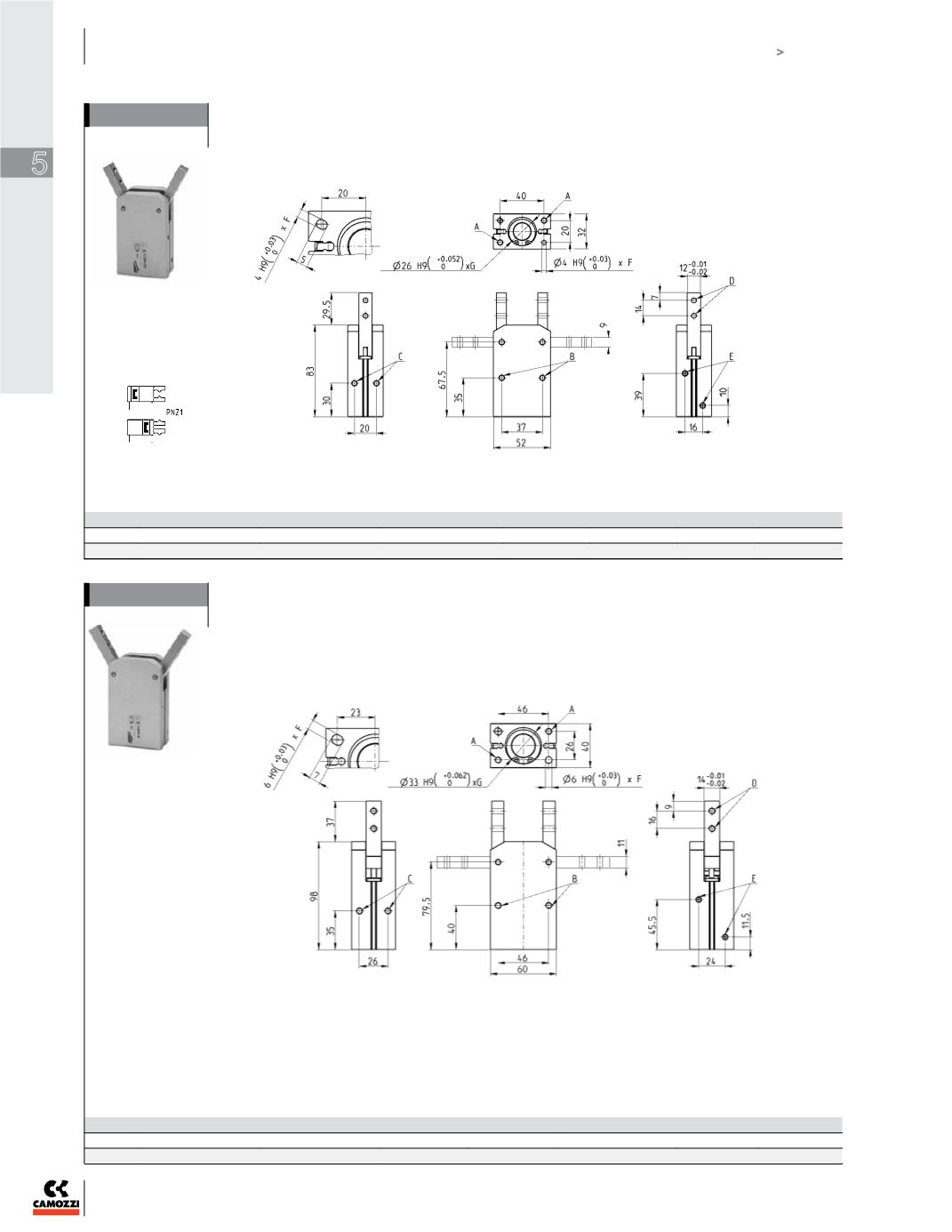

CGSN gripper, bore 25 mm - dimensions
Mod.
A [ Thread - Depth ]
B [ Thread - Depth ]
C [ Thread - Depth ]
D [ Thread ]
E [ Thread ]
F [ Depth ]
G [ Depth ]
CGSN-25
M5 - 8
M5 - 8
M5 - 8
M5
M5
4
1.5
A,B,C = mounting
thread
D = adaptor mounting
thread
E = opening/closing
connection ports
CGSN gripper, bore 32 mm - dimensions
Mod.
A [ Thread - Depth ]
B [ Thread - Depth ]
C [ Thread ]
D [ Thread ]
E [ Thread - Depth ]
F [ Depth ]
G [ Depth ]
CGSN-32
M6 - 10
M6 - 10
M5
M6
M6 - 10
6
1.5
A,B,C = mounting
thread
D = adaptor mounting
thread
E = opening/closing
connection ports
