COMPACT AND SHORT-STROKE CYLINDERS
Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
116
90

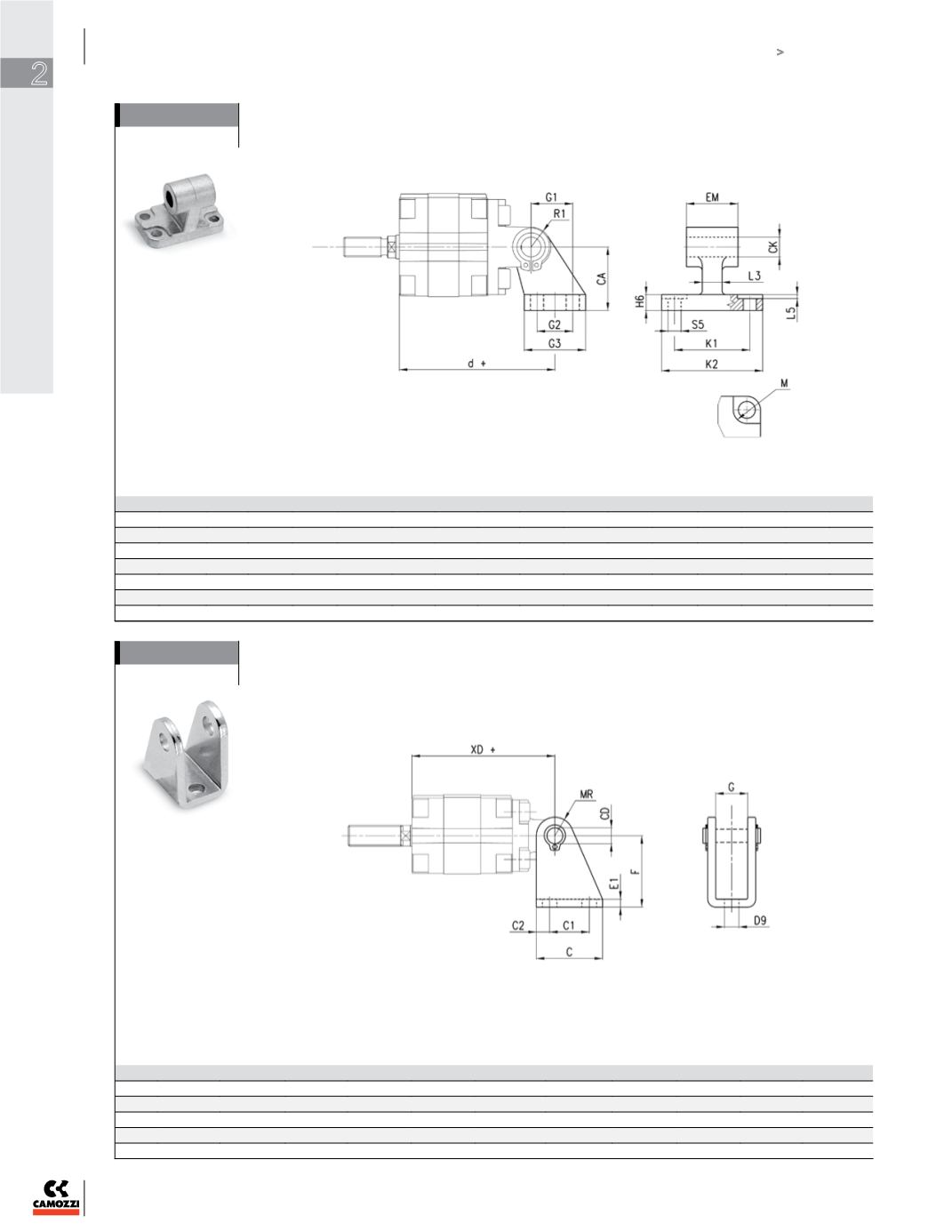

° Swivel combination for female trunnion Mod. ZC
Male rear
Material: aluminium
DIMENSIONS (mm)
Mod.
Ø
M ØCK ØS5
d+
K1
K2
L3
G1
L5
G2
EM G3
CA
H6
R1
ZC-32
32
11
10
6,6
78,5
38
51
10
21
1,6
18
26
31
32
8
10
ZC-40
40
11
12
6,6
83,5
41
54
15
24
1,6
22
28
35
36
10
11
ZC-50
50
15
12
9
90,5
50
65
16
33
1,6
30
32
45
45
12
13
ZC-63
63
15
16
9
101,5
52
67
16
37
1,6
35
40
50
50
14
15
ZC-80
80
18
16
11
119
66
86
20
47
2,5
40
50
60
63
14
15
ZC-100
100
18
20
11
137,5
76
96
20
55
3,2
50
60
70
71
17
19
Supplied with:
1
x male support
+ = add the stroke
90
° swivel combination for trunnion Mod. I
Material: zinc-plated steel
DIMENSIONS (mm)
Mod.
Ø
ØCD
C
C1
ØC2
XD+
MR
ØD9
E1
F
G
I-12-16
12
6
25
15
5
54
7
5,5
3
27
12,1
I-12-16
16
6
25
15
5
54
7
5,5
3
27
12,1
I-20-25
20
8
32
20
6
58
10
6
4
30
16,1
I-20-25
25
8
32
20
6
59,5
10
6
4
30
16,1
Supplied with:
2
x C-clips
1
x female support
1
x clevis pin
+ = add the stroke
