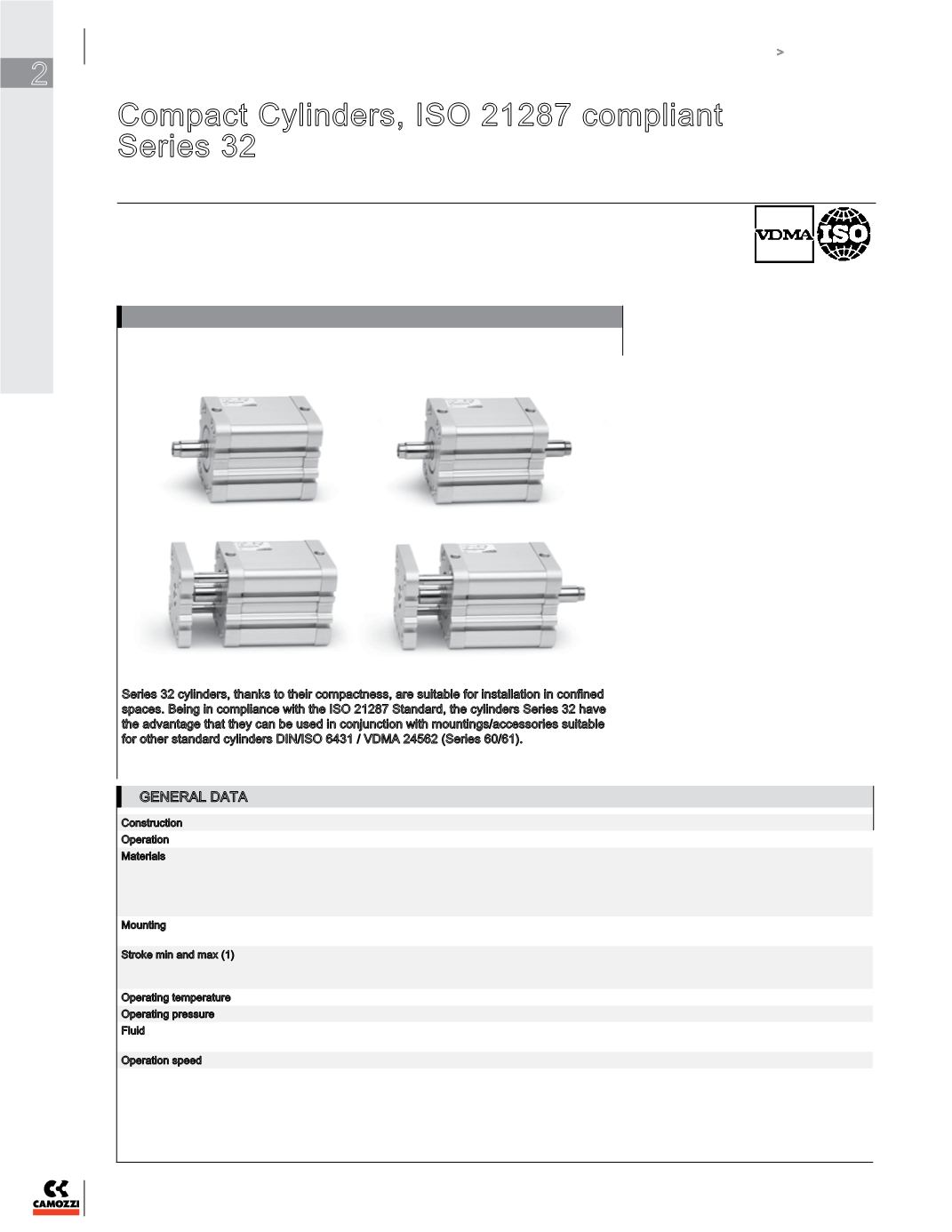

Compact Cylinders, ISO 21287 compliant
Series 32
Single or double-acting, non-rotating
ø 20, 25, 32, 40, 50, 63, 80, 100.
Series 32 cylinders, thanks to their compactness, are suitable for installation in confined
spaces. Being in compliance with the ISO 21287 Standard, the cylinders Series 32 have
the advantage that they can be used in conjunction with mountings/accessories suitable
for other standard cylinders DIN/ISO 6431 / VDMA 24562 (Series 60/61).
GENERAL DATA
»
»
Compact design
»
»
Wide variety of
models available in
different diameters
»
»
In compliance with
ISO 21287
Construction
compact profile
Operation
Single or double acting, magnetic
Materials
body and end-caps = anodized AL
rod = rolled stainless steel AISI 303
piston = AL
rod seal, OR end-block and piston seal = PU
high temperatures: rod seal, OR end-block and piston in FKM (140°C)
Mounting
with threaded holes on the end blocks
flange - feet - trunnion
Stroke min and max (1) Series 32F, 32M, 32R Ø20-25 = 5-300 mm
Series 32F, 32M, 32R Ø32-40-50-63 = 5-400 mm
Series 32F, 32M, 32R Ø80-100 = 5-500 mm
Operating temperature 0°C – 80°C (with dry air -20°C), (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar (double-acting) / 2-10 bar (single-acting), (14 - 145 psi, DA : 29 - 145 psi, SA)
Fluid
clean air without lubrication. If lubricated air is used it is recommended to use oil ISOVG32. Once applied the lubrication should
never be interrupted.
Operation speed
10 – 1000
mm/sec. (without load)
(1)
the minimum stroke for the use of the sensors is 10 mm.
