Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
121
6512

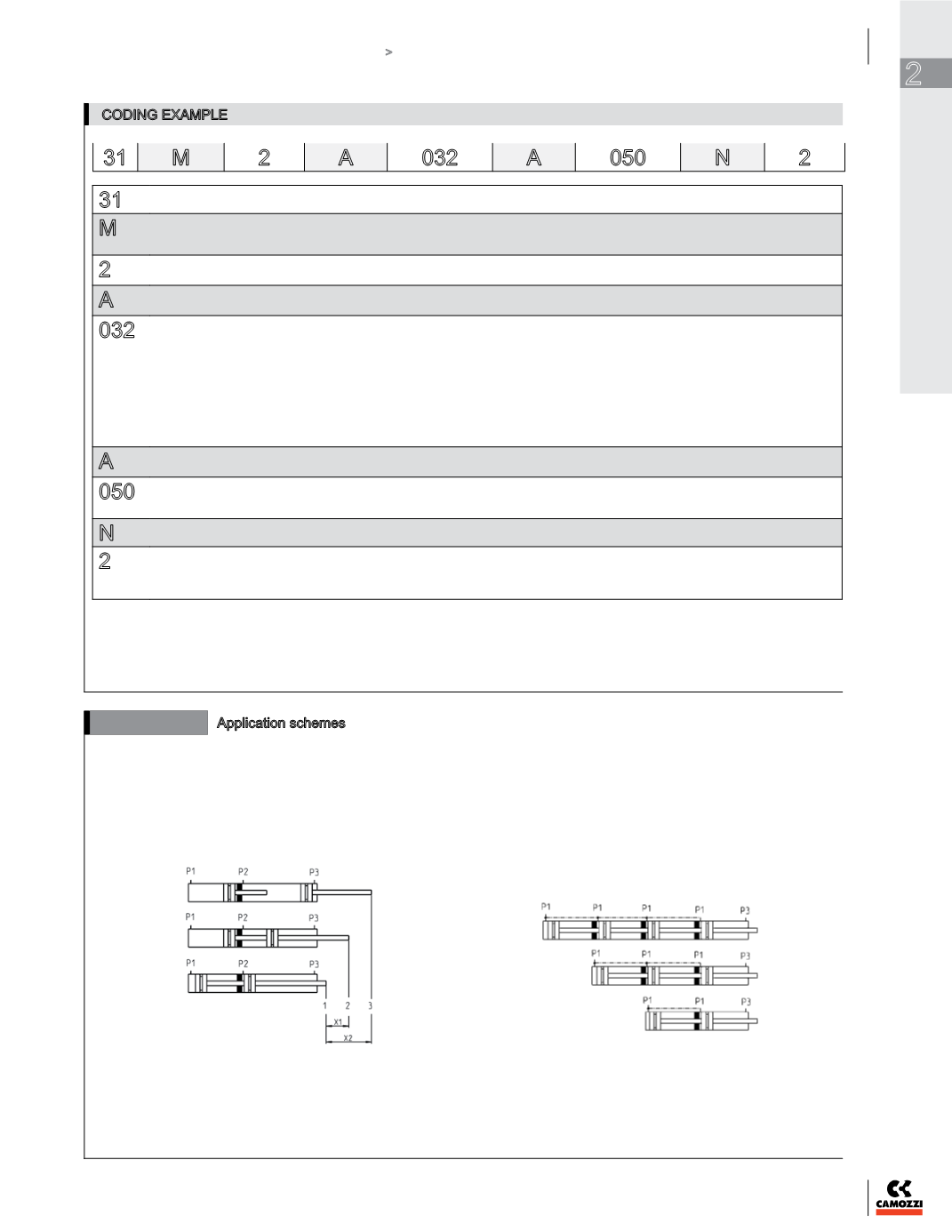

Application schemes
Multi-position
Example for ordering:
X1 = 25 mm and X2 = 100 mm
31
M2A032A25/100N
Tandem
Example for ordering:
stroke 25 mm
31
M2A032A025N2 ( 2 stages)
CODING EXAMPLE
31
M 2
A 032
A 050
N 2
31
SERIES
M
VERSION
M = male rod thread
F = female rod thread
2
OPERATION
2
= double-acting
A
MATERIALS
A = rolled stainless steel rod AISI 303 profile aluminium
032
BORE
012
= 12 mm
016
= 16 mm
020
= 20 mm
025
= 25 mm
032
= 32 mm
040
= 40 mm
050
= 50 mm
063
= 63 mm
080
= 80 mm
100
= 100 mm
A
CONSTRUCTION TYPE
A = standard
050
STROKE in mm
-
tandem stroke in mm
-
multi-position X1mm/X2mm (see application scheme)* insert stroke without the initial 0
N
TANDEM AND MULTI-POSITION
2
STAGES (only for tandem)
2
= 2 stages
3
= 3 stages
4
= 4 stages
