COMPACT AND SHORT-STROKE CYLINDERS
Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
128
It is possible to use longer strokes as indicated in the general
data (excluding radial loads and torque moments). When
imposing radial loads on the cylinder it is important to respect
the maximum stroke of the centre of gravity. In the presence of
torque moments, respect the maximum stroke as shown in the
diagrams.

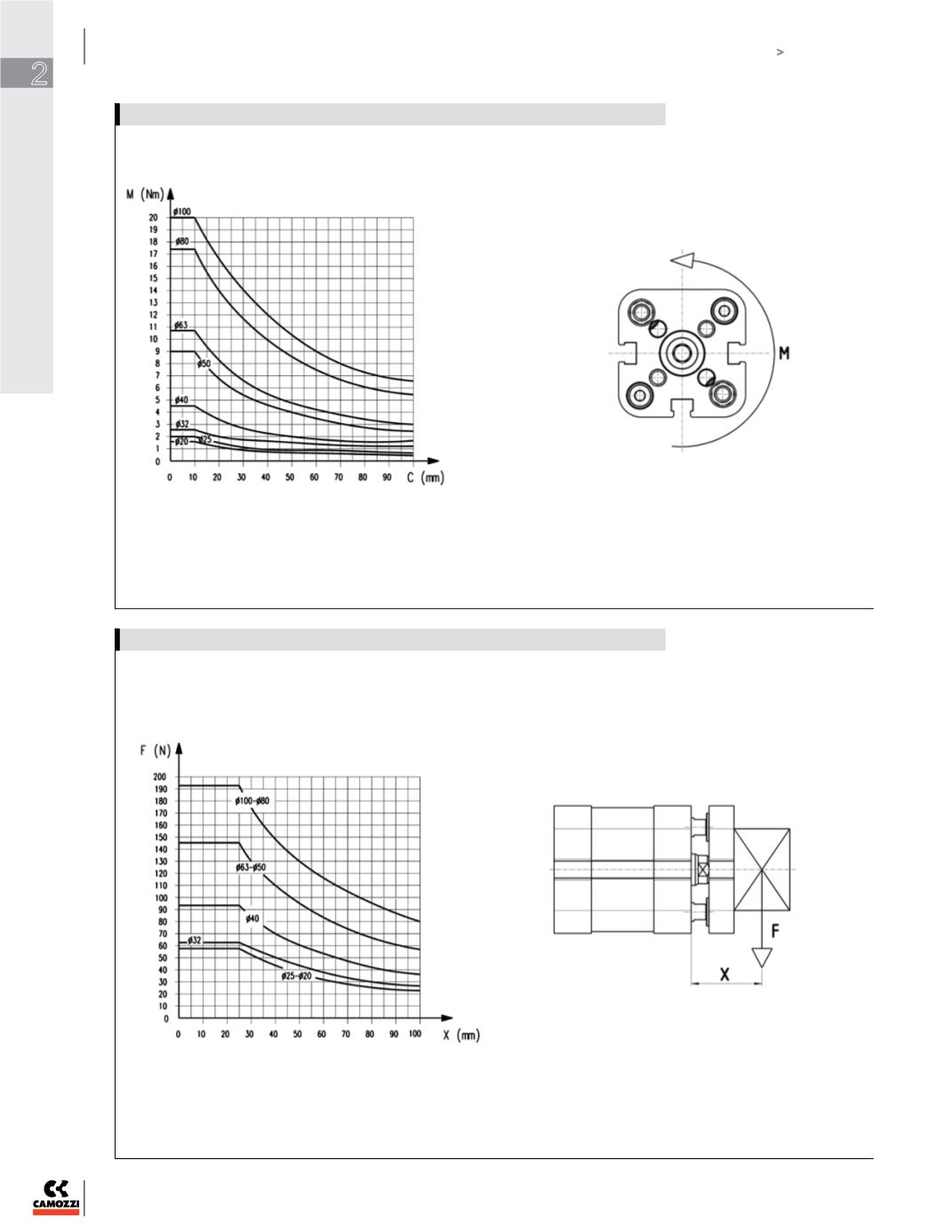

Torque moment (M) dependant on stroke (C).
Anti-rotation.
Transversal load (F) dependant on stroke (X).
APPLICABLE LOADS
APPLICABLE LOADS
