Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
129
Anti-rotation through-rod.

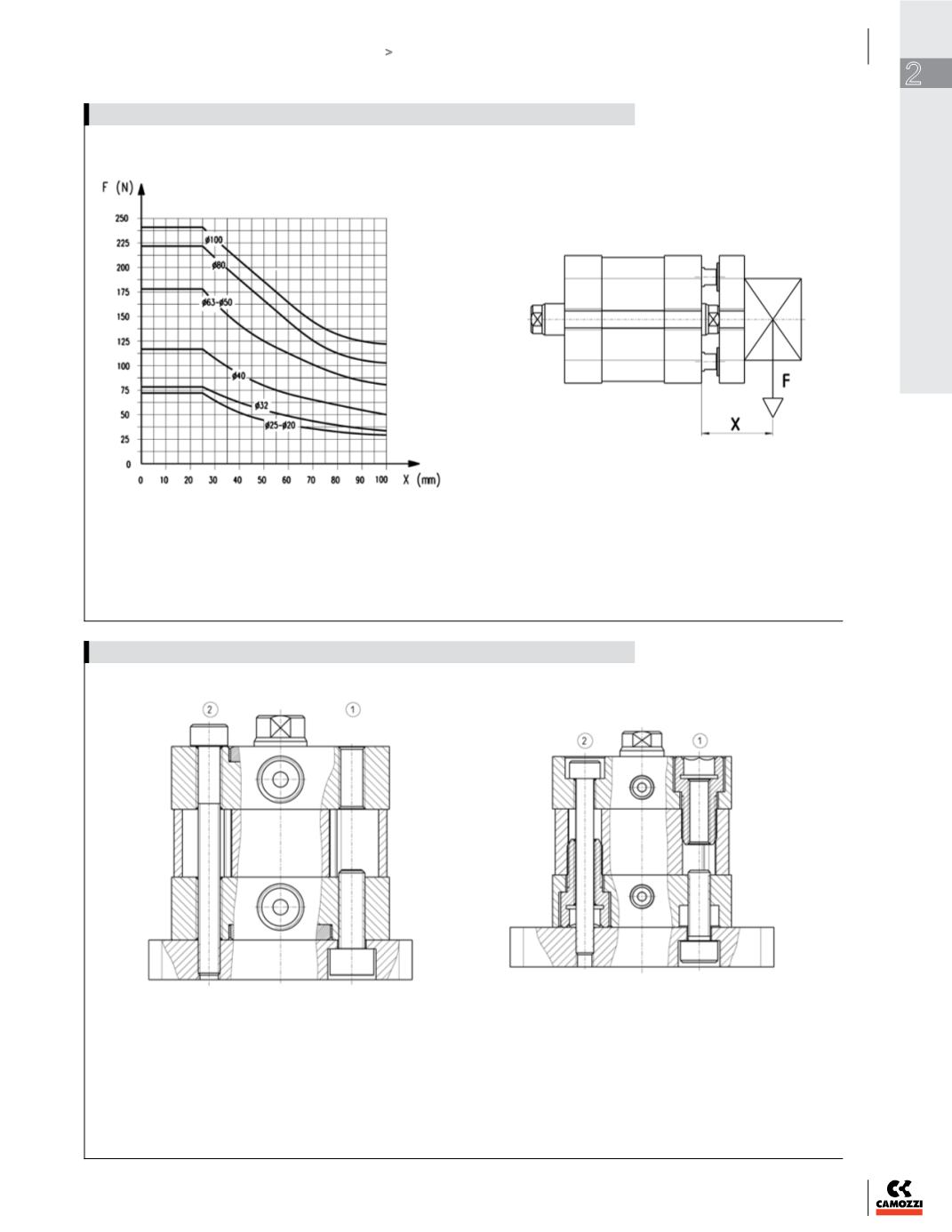

Transversal load (F) dependant on stroke (X).
Mounting example for mounting cylinders Ø 32; 40; 50; 63; 80;
100.
1
= Rear mounting
2
= Through mounting
N.B. For through mounting with screws through the cylinder it is
recommended to use non-magnetic screws.
Mounting example for mounting cylinders Ø 20 – 25.
1
= Rear mounting
2
= Through mounting
N.B. For through mounting with screws through the cylinder it is
recommended to use non-magnetic screws.
APPLICABLE LOADS
MOUNTING EXAMPLE
