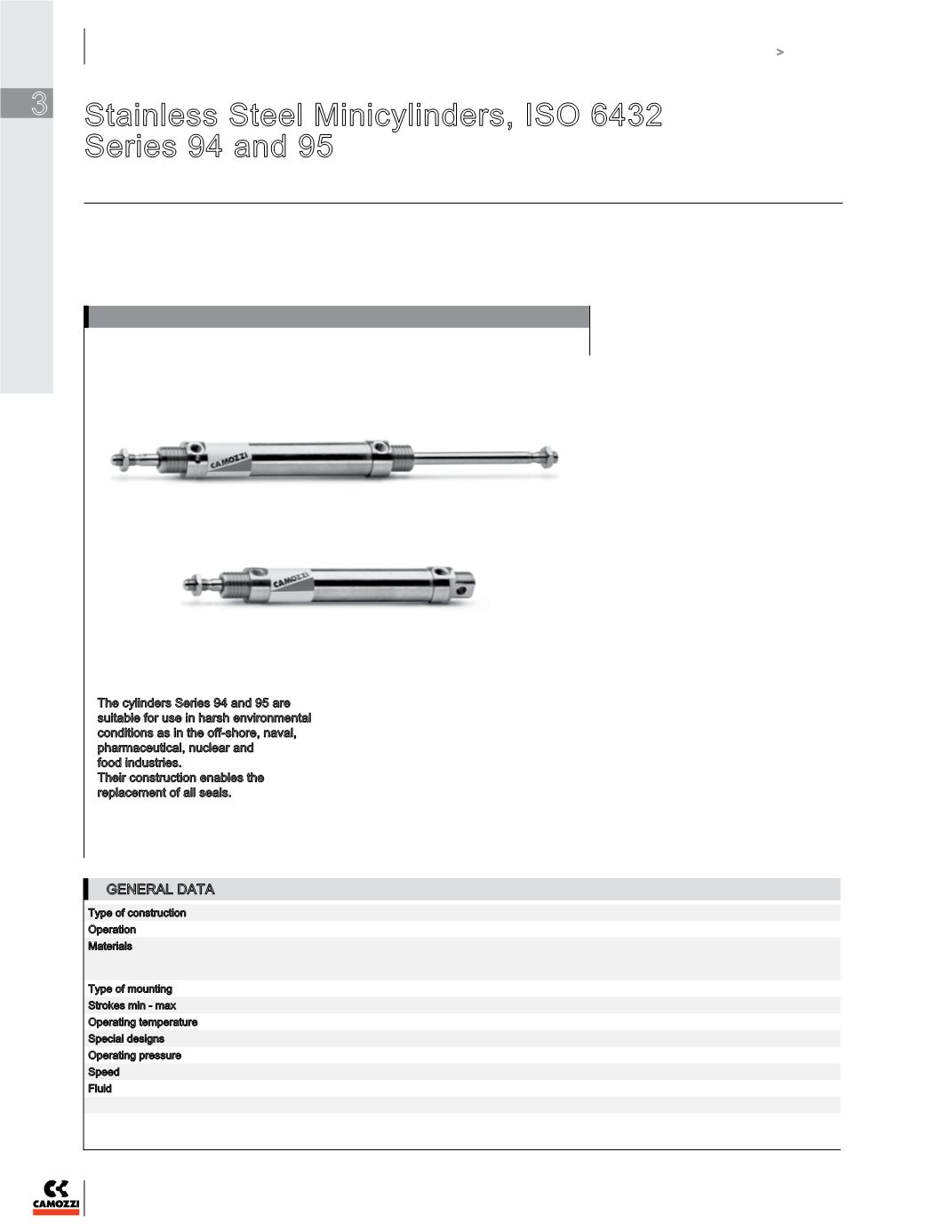

Stainless Steel Minicylinders, ISO 6432
Series 94 and 95
Single-acting and double-acting
Standard CETOP RP52-P DIN/ISO 6432
Series 94 (ø 16, 20, 25): magnetic
Series 95 (ø 25): magnetic, cushioned
The cylinders Series 94 and 95 are
suitable for use in harsh environmental
conditions as in the off-shore, naval,
pharmaceutical, nuclear and
food industries.
Their construction enables the
replacement of all seals.
GENERAL DATA
»
»
ISO/DIN 6432
»
»
Stainless steel
Type of construction end blocks secured to the tube
Operation
single-acting and double-acting
Materials
end blocks and rod = stainless steel AISI 316, seals = NBR
Series 94: tube in stainless steel AISI 304
Series 95: tube in stainless steel AISI 316
Type of mounting
screw - flange - feet - swivel combination
Strokes min - max
10 – 500
mm
Operating temperature 0° - 80°C (with dry air -20°C), (32 - 176°F, with dry air -4°F)
Special designs
for applications in damp, dusty or aggressive environments
Operating pressure
1 – 10
bar, (14 - 145 psi)
Speed
10 – 1000
mm/sec (without load)
Fluid
clean air, without lubrication
*
If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
