Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
171

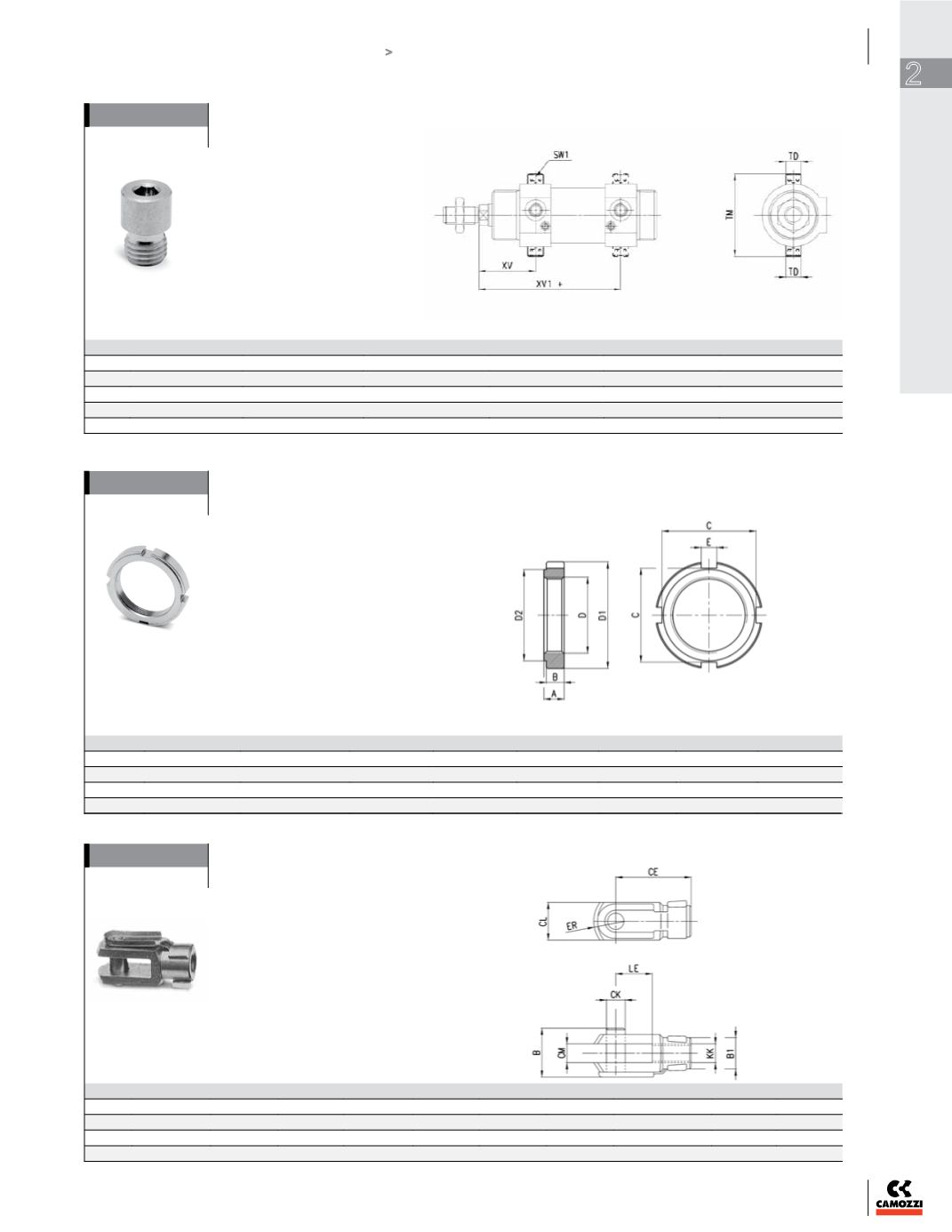

Bracket with threaded pins Mod. T
Material: stainless steel
Supplied with:
2
x pins
DIMENSIONS (mm)
Mod.
Ø
XV
XV1+
TD
TM
SW1
T-42-32
32
36,5
109,5
10
51
5
T-42-40
40
45
120
12
61
6
T-42-50
50
51,5
128,5
14
75
6
T-42-63
63
52
143
16
90
8
+ = add the stroke
Nose nut Mod.V-42
Material: zinc-plated steel
DIMENSIONS (mm)
Mod.
Ø
D
D1
D2
A
B
C
E
V-42-32
32
M30X1,5
42
36
8
7
37
6,2
V-42-40
40
M38x1,5
50
48
10
9
44
7,2
V-42-50-63
50-63
M45x1,5
60
56
10
9
53
7,2
.
Rod fork end Mod. G
Material: stainless steel
ISO 8140
DIMENSIONS (mm)
Mod.
Ø
ØCK
LE
CM
CL
ER
CE
KK
B
B1
G-25-32
32
10
20
10
20
12
40
M10X1,25
26
18
G-40
40
12
24
12
24
14
48
M12X1,25
32
20
G-50-63
50-63
16
32
16
32
19
64
M16X1,5
40
26
