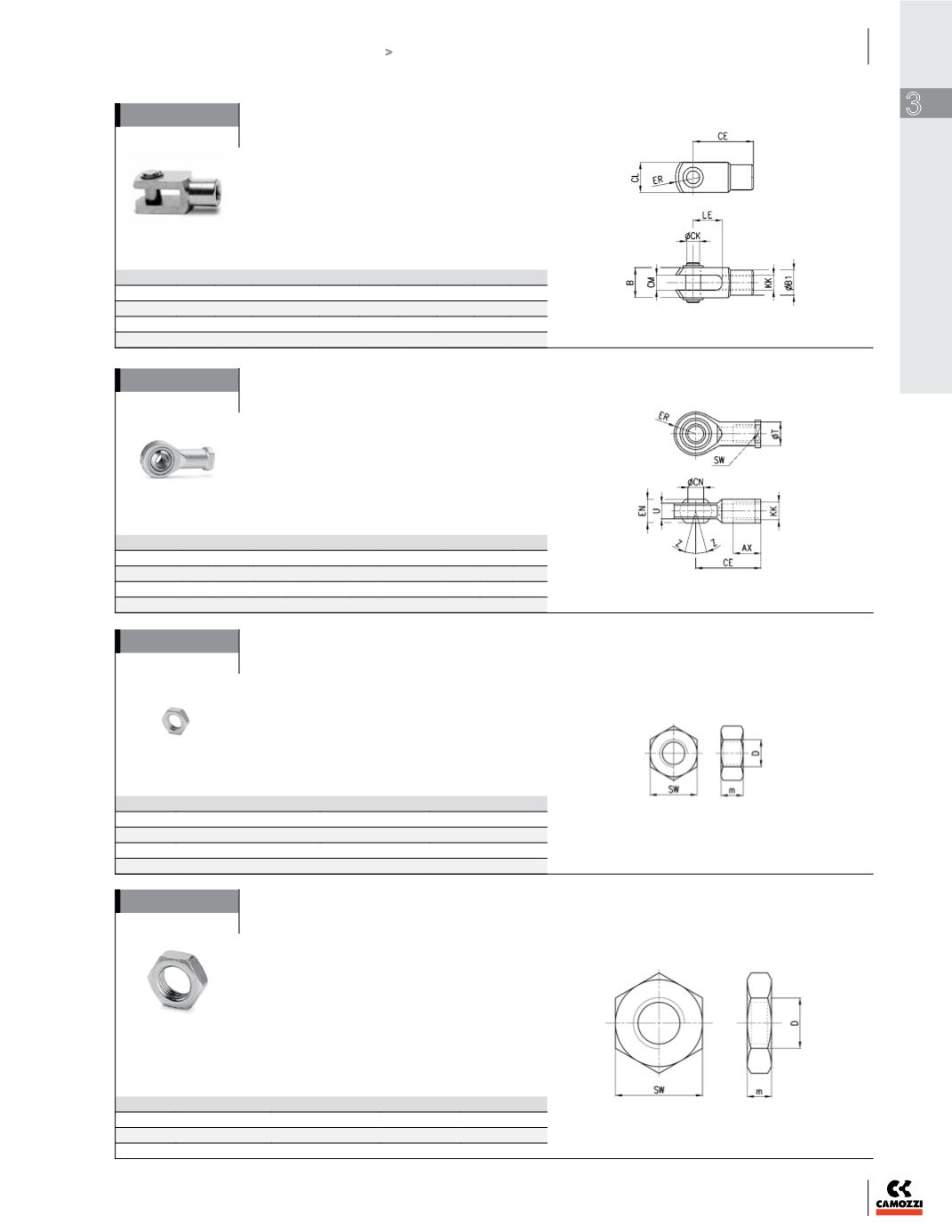

Rod Fork End Mod. G-94/90
Material: stainless steel 303
ISO 8140
DIMENSIONS (mm)
Mod.
CK LE
KK
CM ER CE CL
B B1
G-94-12-16
6
12
M6x1
6
7
24
12
16
10
G-94-20
8
16
M8x1,25
8
10
32
16
22
14
G-90-25-32
10
20
M10x1,25
10
12
40
20
26
18
Swivel Ball Joint Mod. GA-94/90
Material: stainless steel 304
ISO 8139
DIMENSIONS (mm)
Mod.
CN U EN ER AX CE
KK
T
Z SW
GA-94-12-16
6
7
9 10 12 30
M6x1
10 6,5 11
GA-94-20
8
9
12 12 16 36
M8x1,25 12,5 6,5 14
GA-90-32
10 10,5 14 14 20 43
M10x1,25 15 6,5 17
Piston rod nut Mod. U-94/90
Material: stainless steel 304
UNI 5589
DIMENSIONS (mm)
Mod.
D
m
SW
U-94-12-16
M6x1
4
10
U-94-20
M8x1,25
5
13
U-90-25-32
M10x1,25
6
17
Nose Nut Mod. V-94 and Mod. U-90
Material: stainless steel 304
DIMENSIONS (mm)
Mod.
Ø
D
m
SW
U-90-50-63
12-16
M16x1,5
8
24
V-94-20-25
20-25
M22x1,5
10
32
