Stainless Steel Cylinders
3
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
STAINLESS STELL CYLINDERS
189

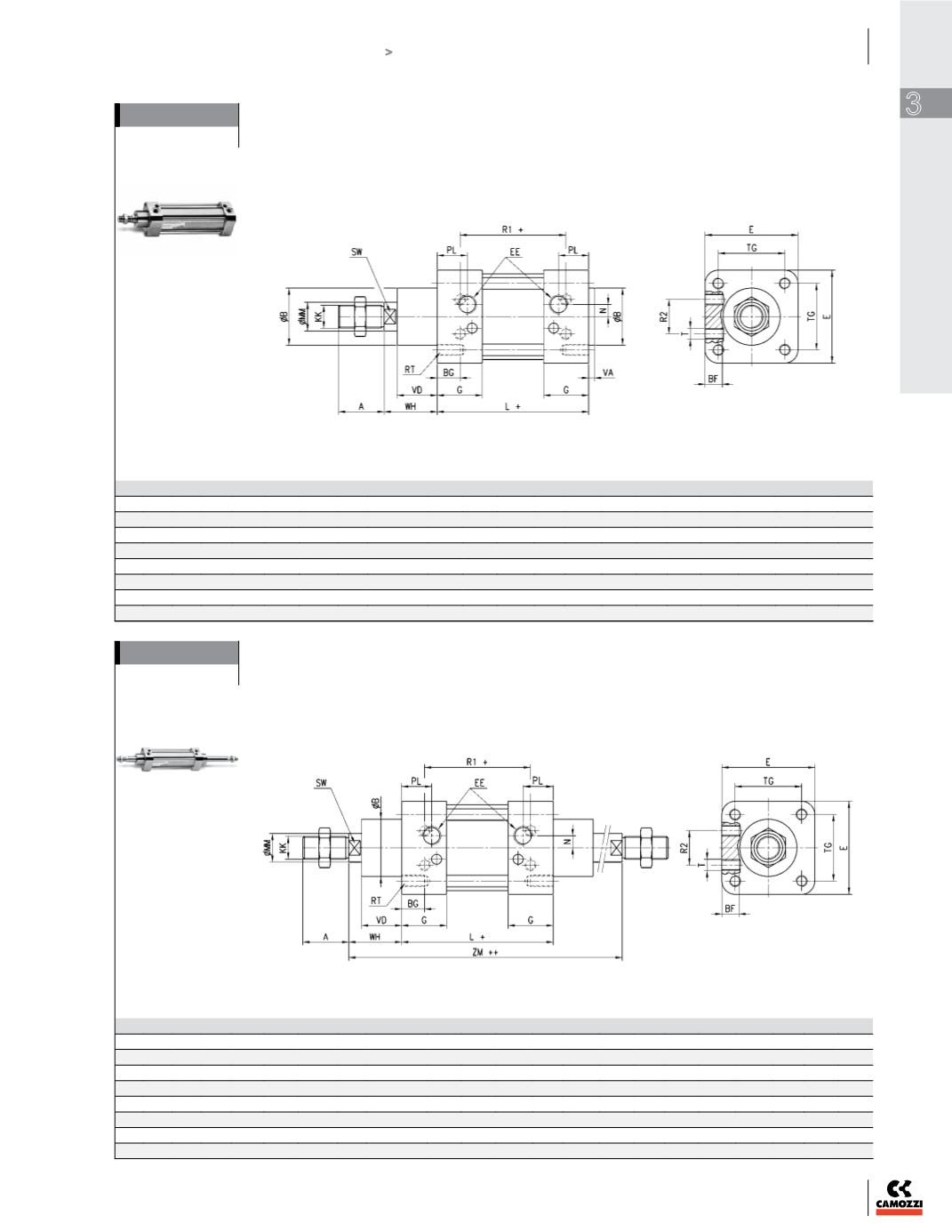

Cylinders Series 90
Note: the single-acting cylinders, dimensions L and R1 are increased by 25 mm.
DIMENSIONS (mm)
Ø A B BF BG E EE G KK
L MM N PL RT R1 R2 SW T TG VA VD WH
32
22 30 10 16 45
G1/8 28 M10x1,25 94 12 4,5 14 M6 64 16 10 M5 33
4 20 26
40
24 35 10 16 55
G1/4 32 M12x1,25 105 16 5,5 16 M6 70 21 13 M6 38
4 22 30
50
32 40 12 16 65
G1/4 32 M16x1,5 106 20 8,5 21 M8 74 24 17 M8 46,5 4 28 37
63
32 45 12 16 80
G3/8 35 M16x1,5 121 20 8,5 22 M8 85 33 17 M8 56,5 4 28 37
80
40 45 15 16 95
G3/8 36 M20x1,5 128 25 8,5 23 M10 92 34 21 M10 72
4 34 46
100
40 55 15 16 115
G1/2 41 M20x1,5 138 25 10 26 M10 100 58 21 M10 89
4 38 51
125
54 60 24 20 140
G1/2 45 M27x2 160 32 12,5 30 M12 110 65 27 M12 110 5 50 65
+ = add the stroke
Cylinders Series 90 - through-rod
Note: the single-acting cylinders, dimensions L, R1 and ZM are increased by 25 mm.
DIMENSIONS (mm)
Ø A B BF BG E EE G KK
L MM N PL RT R1 R2 SW T TG VD WH ZM
32
22 30 10 16 45
G1/8 28 M10x1,25 94 12 4,5 14 M6 64 16 10 M5 33 20 26 146
40
24 35 10 16 55
G1/4 32 M12x1,25 105 16 5,5 16 M6 70 21 13 M6 38 22 30 165
50
32 40 12 16 65
G1/4 32 M16x1,5 106 20 8,5 21 M8 74 24 17 M8 46,5 28 37 180
63
32 45 12 16 80
G3/8 35 M16x1,5 121 20 8,5 22 M8 85 33 17 M8 56,5 28 37 195
80
40 45 15 16 95
G3/8 36 M20x1,5 128 25 8,5 23 M10 92 34 21 M10 72 34 46 220
100
40 55 15 16 115
G1/2 41 M20x1,5 138 25 10 26 M10 100 58 21 M10 89 38 51 240
125
54 60 24 20 140
G1/2 45 M27x2 160 32 12,5 30 M12 110 65 27 M12 110 50 65 290
+ = add the stroke
+ = add the stroke two
times
