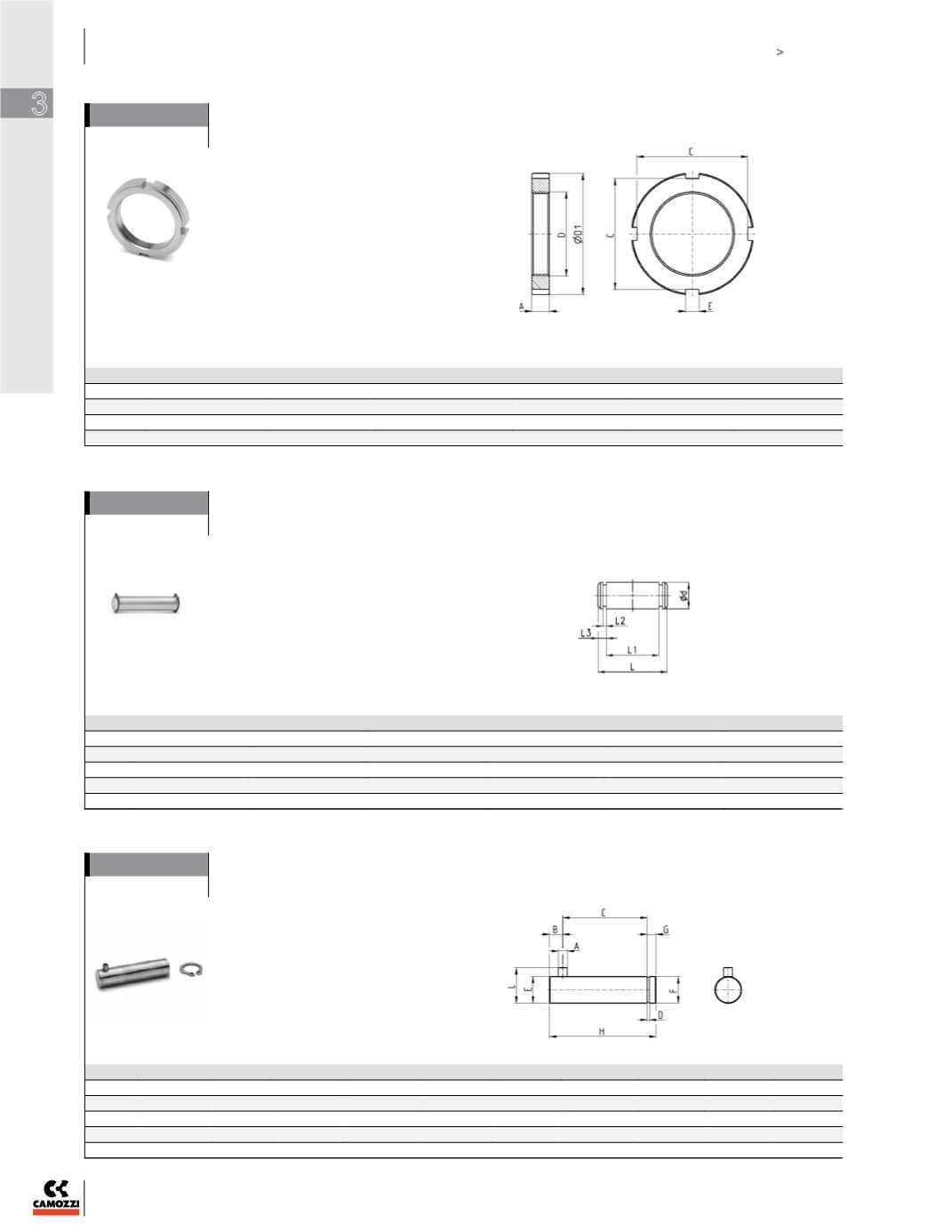

Nose nut Mod. V-97
Material: stainless steel 304
DIMENSIONS
Mod.
Ø
A
D
ØD1
E
C
V-97-32
32
7
M30X1,5
42
5
38
V-97-40
40
8
M38X1,5
55
6
50
V-97-50-63
50-63
10
M45X1,5
60
6
53
Clevis pin Mod. S-90
Supplied with:
1
x clevis pin in stainless steel 303
2
x c-clips in plain carbon steel
DIMENSIONS
Mod.
Ø
Ød
L
L1
L2
L3
S-90-32
32
10
53
46
1,1
3
S-90-40
40
12
60
53
1,1
3
S-90-50
50
12
68
61
1,1
3
S-90-63
63
16
78
71
1,1
3
Antirotating clevis pin Mod. SR-90
Supplied with:
1
x antirotating clevis pin
in stainless steel 316
1
x c-clip in plain carbon steel
DIMENSIONS
Mod.
Ø
A
B
C
D
E
F
G
H
L
SR-90-32
32
3
4,5
32,5
1,1
10
9,6
4
41
14
SR-90-40
40
4
6
38
1,1
12
11,5
4
48
16
SR-90-50
50
4
6
43
1,1
16
15,2
5
54
20
SR-90-63
63
4
6
49
1,1
16
15,2
5
60
20
