STAINLESS STELL CYLINDERS
Stainless Steel Cylinders
3
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
202

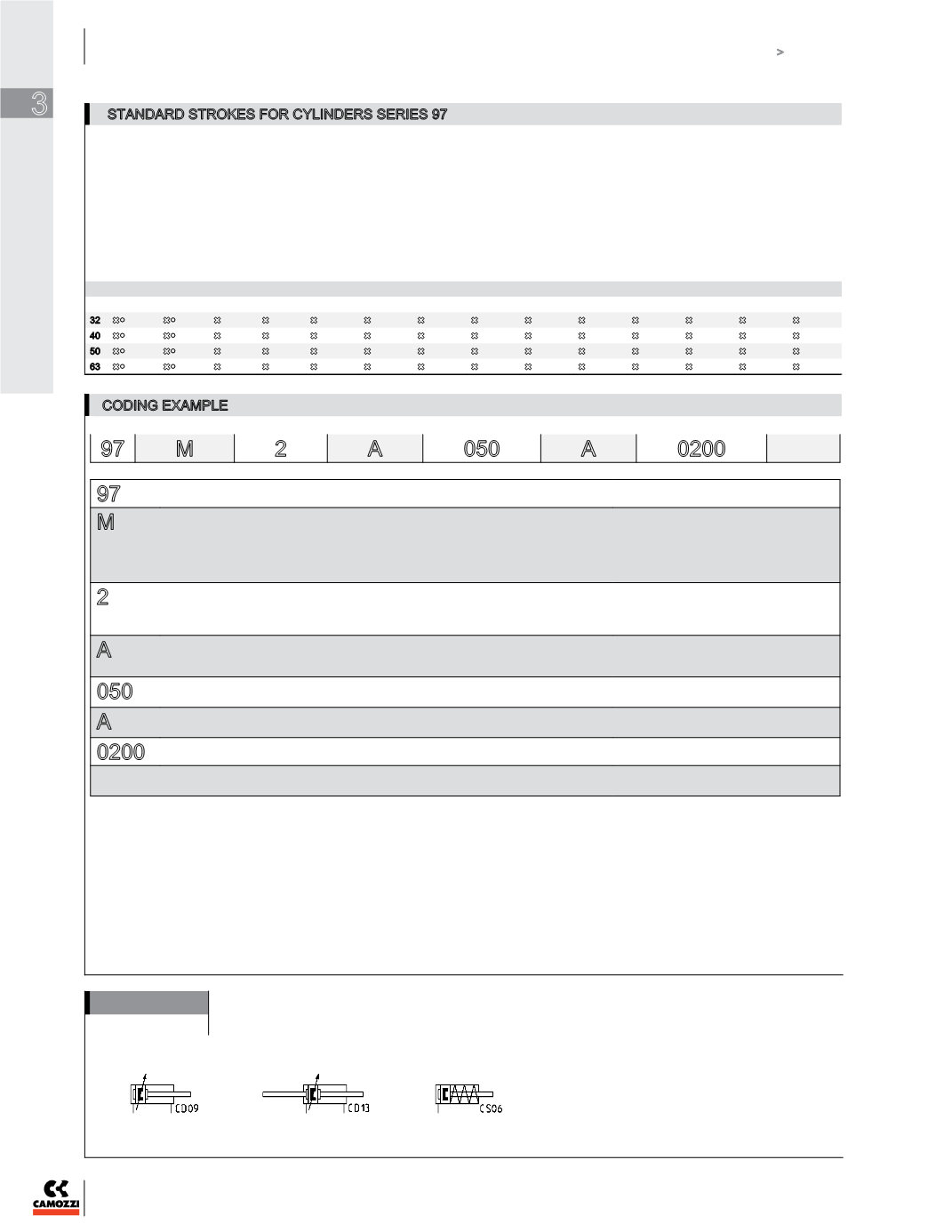

CODING EXAMPLE
STANDARD STROKES FOR CYLINDERS SERIES 97
97
M 2
A
050
A
0200
97
SERIES
M
VERSIONS:
M = rear male hinge
S = articulated rear male hinge
F = rear female hinge
T = front and rear threaded end blocks
A = front end block with pin
2
OPERATION:
1
= single-acting, front spring
2
= double-acting, front and rear cushions
6
= double-acting, through-rod, front and rear cushions (T and A versions only)
PNEUMATIC SYMBOLS:
CS06
CD09
CD13
A
MATERIALS:
A = stainless steel AISI 304 - PU seals
V = stainless steel AISI 304 - FKM seals
050
BORE:
032
= 32 mm - 040 = 40 mm - 050 = 50 mm - 063 = 63 mm
A
TYPE OF DESIGN:
A = standard (locking ring for end cap V + lock nut for rod U)
0200
STROKE (see the table)
= standard
V = rod seal in FKM
● = Single-acting
✖ = Double-acting
STANDARD STROKES
Ø 25
50
75
80
100
125
150
160
200
250
300
320
400
500
32
✖●
✖●
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
40
✖●
✖●
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
50
✖●
✖●
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
63
✖●
✖●
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
PNEUMATIC SYMBOLS
The pneumatic symbols which have been indicated in the CODING EXAMPLE are shown below.
