Stainless Steel Cylinders
3
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
STAINLESS STELL CYLINDERS
201

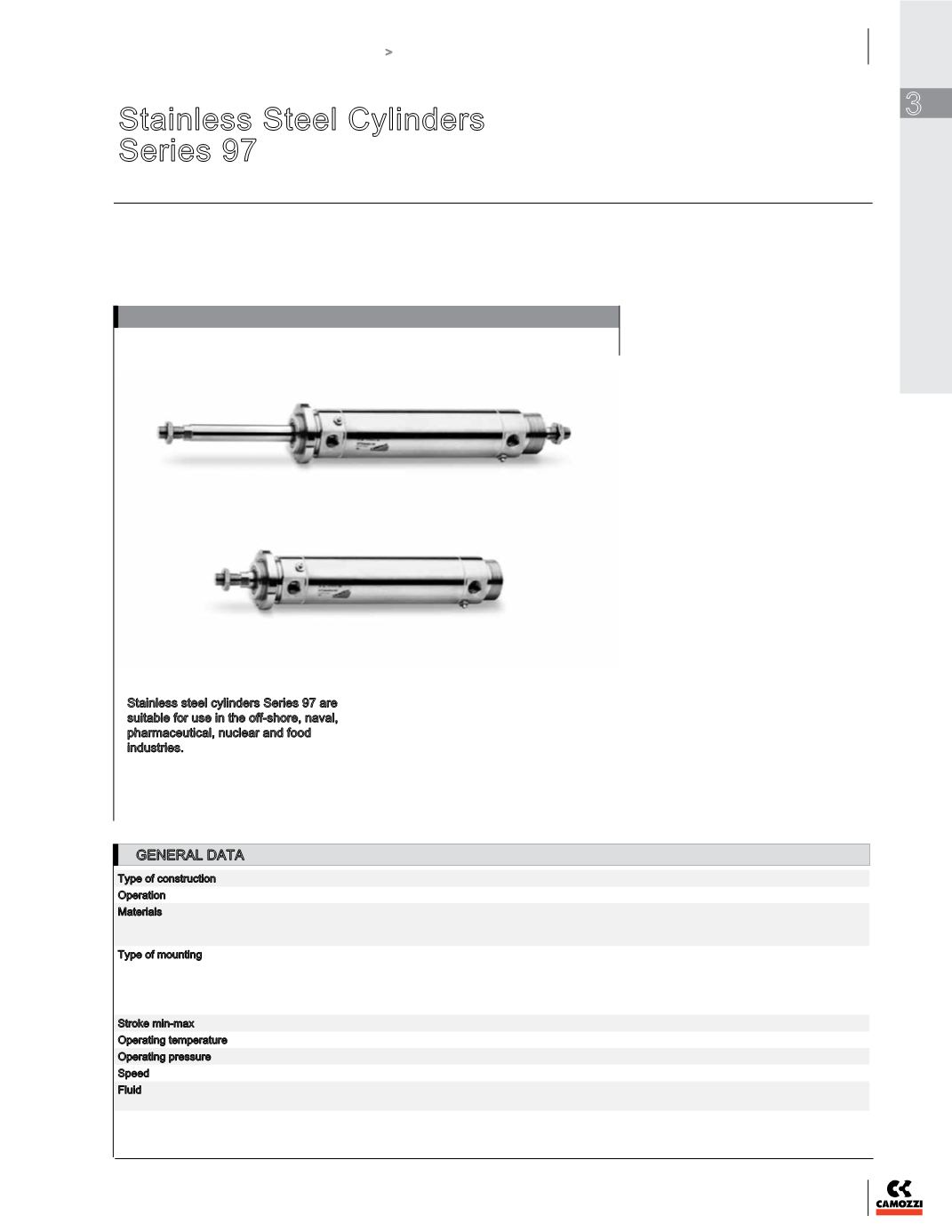

Stainless Steel Cylinders
Series 97
Single or double-acting, cushioned, magnetic.
ø 32, 40, 50, 63 mm
Stainless steel cylinders Series 97 are
suitable for use in the off-shore, naval,
pharmaceutical, nuclear and food
industries.
These cylinders are normally equipped
with end-stroke cushioning which can
be adjusted through a screw on the end
block.
In order to reduce the impact of the
piston on the end block, these cylinders
are also equipped with mechanical
cushioning.
GENERAL DATA
»
»
Clean design
»
»
Stainless steel AISI 304
»
»
Adjustable endstroke
cushioning
Type of construction the end blocks are screwed to the tube with an intermediate Teflon ring
Operation
single-acting and double-acting
Materials
end blocks, tube, rod in stainless steel AISI 304
rod seals in PU, piston seals in NBR
plastic guiding element, NSF H1-certified lubricant
Type of mounting
threaded front and rear locking ring
pins on front cap ends
rear male hinge
articulated rear male hinge
rear female hinge
Stroke min-max
25 - 800
mm
Operating temperature 0°C - 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Operating pressure
1 - 10
bar, (14 - 145 psi)
Speed
10 - 1000
mm/sec (without load)
Fluid
Filtered air, without lubrication.
If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
