RODLESS AND GUIDED/TWIN-BORE CYLINDERS
Rodless and Guided/Twin-Bore Cylinders
4
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
216
Note: This chart has been made according to a max. distance of
0.5
mm Load (N).
Once the load and the cylinder diameter have been fixed, the
chart gives the K values beyond which it is necessary to put an
intermediate feet Mod. BH-50.
Note: This chart has been made according to a max. distance of
0.5
mm Load (N).
Once the load and the cylinder diameter have been fixed, the
chart gives the K values beyond which it is necessary to put an
intermediate feet Mod. BH-50.

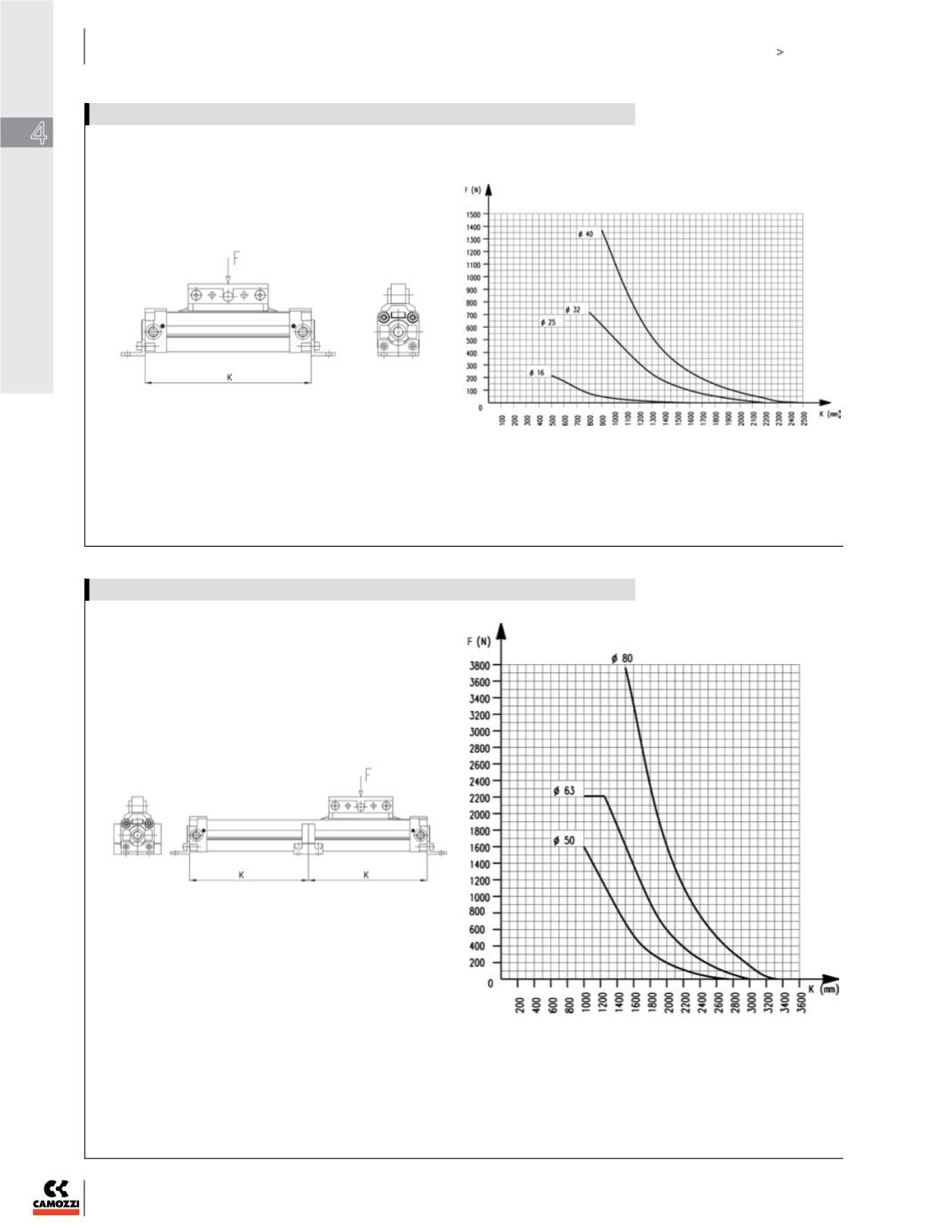

LOADS ACCORDING TO SUPPORTS DISTANCE
LOADS ACCORDING TO SUPPORTS DISTANCE
