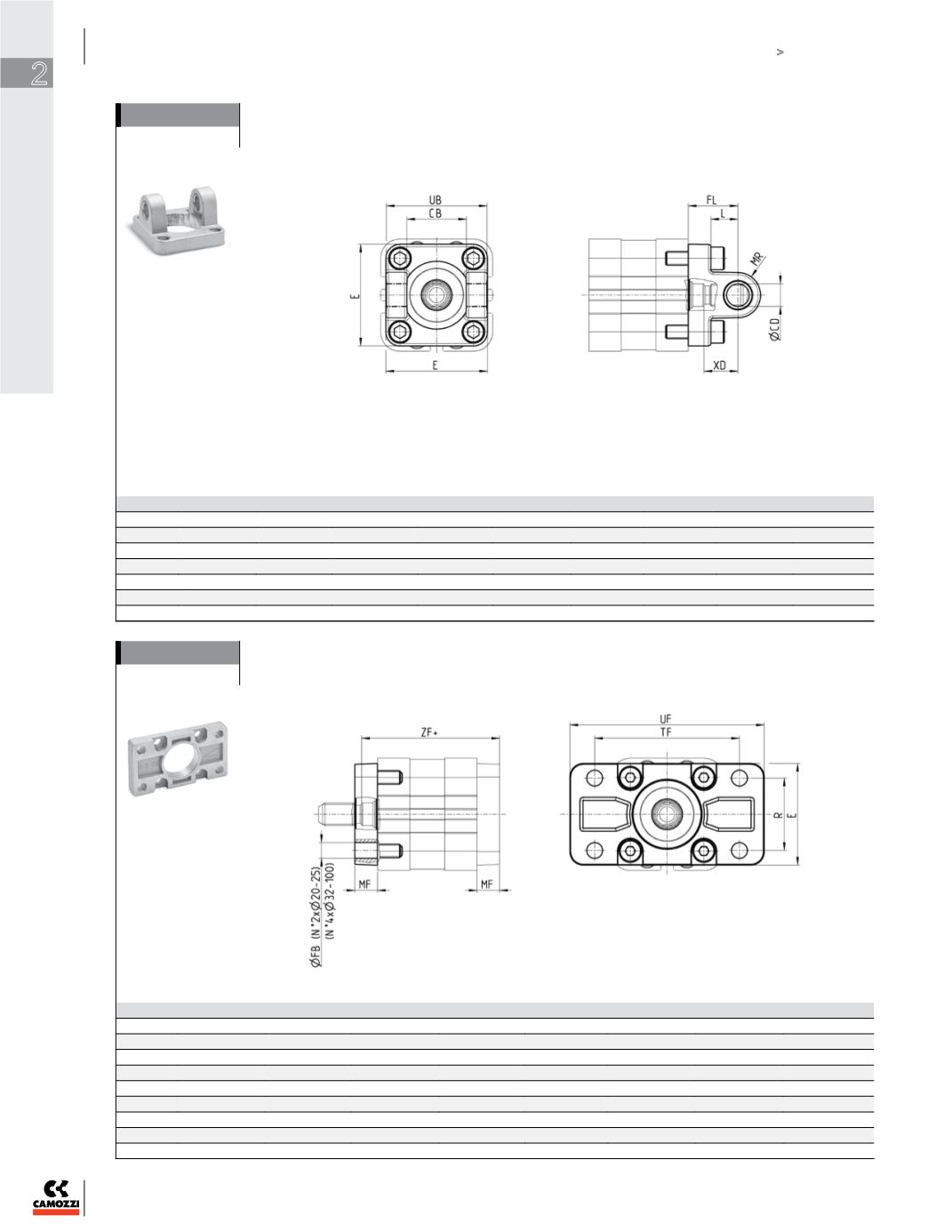

Front female trunnion Mod. H and C-H
Material: Aluminium.
DIMENSIONS (mm)
Mod.
Ø
ØCD
E
CB
UB
L
FL
MR
XD
H-41-32
32
10
45
26
45
12
22
10
15
H-41-40
40
12
53,5
28
52
15
25
12
18
H-41-50
50
12
62,5
32
60
15
27
13
19
H-60-63
63
16
73
40
70
20
32
17
24
C-H-41-80
80
16
92
50
90
24
36
17
26,5
C-H-41-100
100
20
108,5
60
110
29
41
21
31,3
Supplied with:
1
x female trunnion
4
x screws
Front and rear flange Mod. D-E
Material: zinc-plated steel for Ø 20 - Ø 25; Aluminium for Ø 32 – Ø 100.
DIMENSIONS (mm)
Mod.
Ø
ØFB
E
MF
R
TF
UF
ZF
D-E-32-20
20
6,6
36
10
-
55
70
52,5
D-E-32-25
25
6,6
40
10
-
60
76
54,5
D-E-41-32
32
7
45
10
32
64
86
61
D-E-41-40
40
9
52
10
36
72
88
62
D-E-41-50
50
9
63
12
45
90
110
65
D-E-41-63
63
9
73
12
50
100
116
69
D-E-41-80
80
12
95
16
63
126
148
79,5
D-E-41-100
100
14
115
16
75
150
176
92,5
Supplied with:
1
x flange
4
x screws
+ = add the stroke
