Stainless Steel Cylinders
3
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
STAINLESS STELL CYLINDERS
191

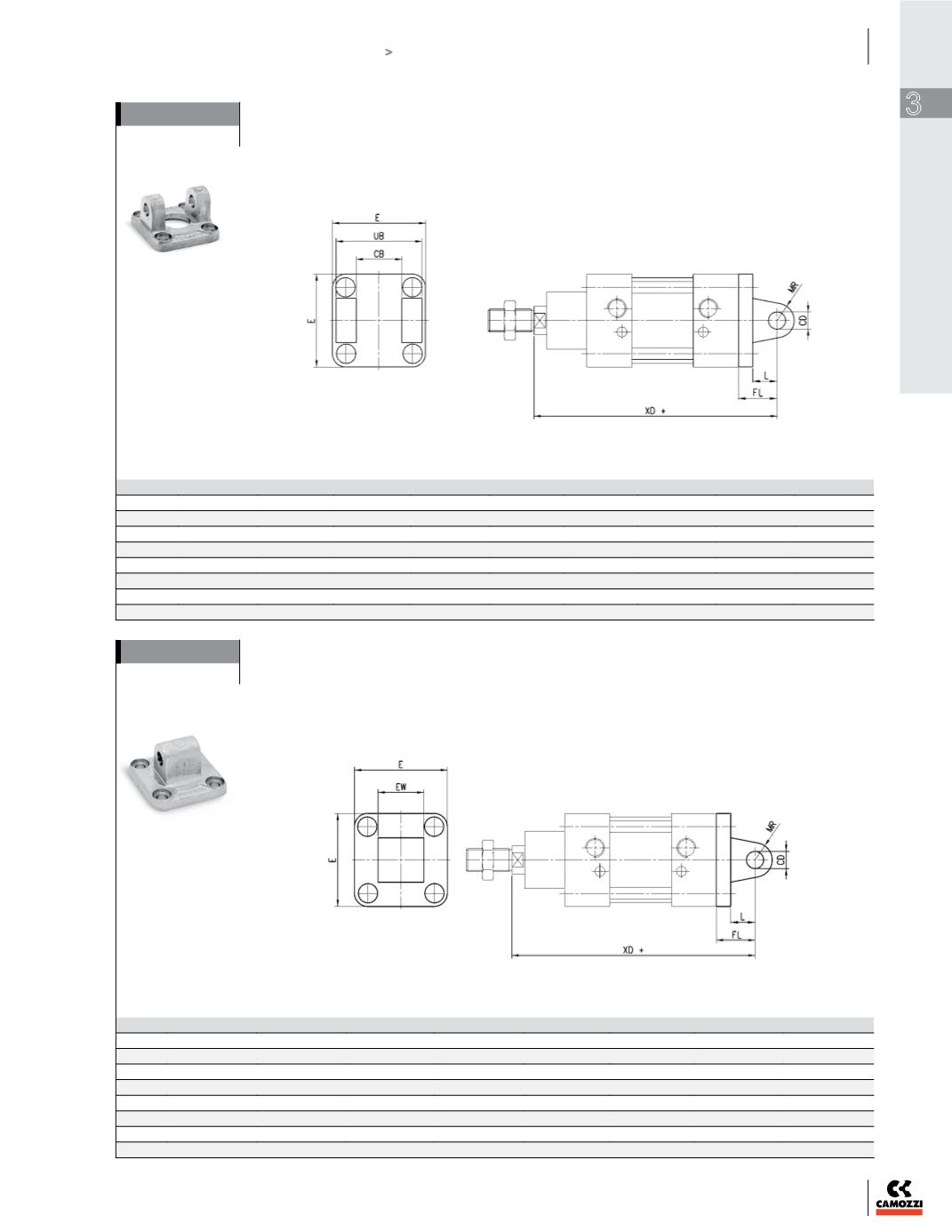

Rear trunnion, female Mod. C
Material: stainless steel 304.
DIMENSIONS (mm)
Mod.
Ø
CB
CD
E
FL
L
MR
UB
XD
C-H-90-32
32
26
10
45
22
12
10
45
142
C-H-90-40
40
28
12
52
25
15
12
52
161
C-H-90-50
50
32
12
65
27
17
12
60
170
C-H-90-63
63
40
16
75
32
20
16
70
185
C-H-90-80
80
50
16
95
36
22
16
90
210
C-H-90-100
100
60
20
115
41
25
20
110
230
C-H-90-125
125
70
25
140
50
30
25
130
275
Supplied:
1
x female trunnion
4
x screws
+ = add the stroke
Rear trunnion, male Mod. L
Material: stainless steel 304.
DIMENSIONS (mm)
Mod.
Ø
EW
CD
E
FL
L
MR
XD
L-90-32
32
26
10
45
22
12
10
142
L-90-40
40
28
12
52
25
15
12
161
L-90-50
50
32
12
65
27
17
12
170
L-90-63
63
40
16
75
32
20
16
185
L-90-80
80
50
16
95
36
22
16
210
L-90-100
100
60
20
115
41
25
20
230
L-90-125
125
70
25
140
50
30
25
275
Supplied:
1
x male trunnion
4
x screws
+ = add the stroke
