Stainless Steel Round Body Cylinders
Series 92
Single or double-acting, cushioned, magnetic
ø32 - 40 - 50 - 63

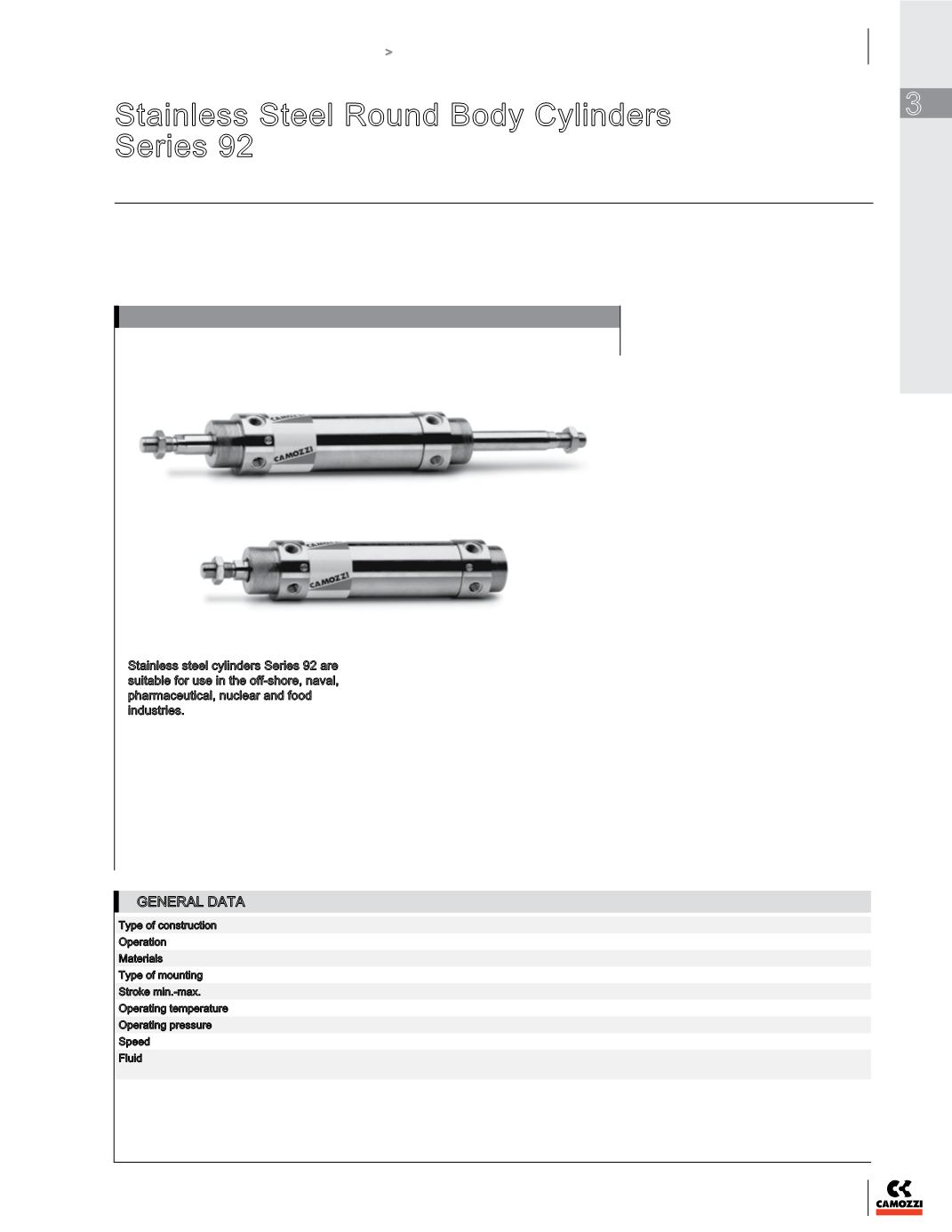

Stainless steel cylinders Series 92 are
suitable for use in the off-shore, naval,
pharmaceutical, nuclear and food
industries.
This series of cylinders is normally
equipped with adjustable end-stroke
cushioning. In addition, these cylinders
are equipped with a mechanical
cushioning in order to make the impact
of the piston less noisy as it reaches
the end of the stroke. Their construction
enables the replacement of all seals.
GENERAL DATA
»
»
Clean design
»
»
Stainless steel AISI 316
»
»
Adjustable end-
stroke cushioning
Type of construction end blocks secured to the tube
Operation
single-acting and double-acting
Materials
end blocks, tube, rod = stainless steel AISI 316 - seals = NBR
Type of mounting
feet - front and rear bracket threaded pin - locking ring for end cap
Stroke min.-max.
for all bores 25 – 800 mm
Operating temperature 0°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar, (14 - 145 psi)
Speed
10 – 1000
mm/sec (no load)
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication
should never be interrupted.
