STAINLESS STELL CYLINDERS
Stainless Steel Cylinders
3
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
192

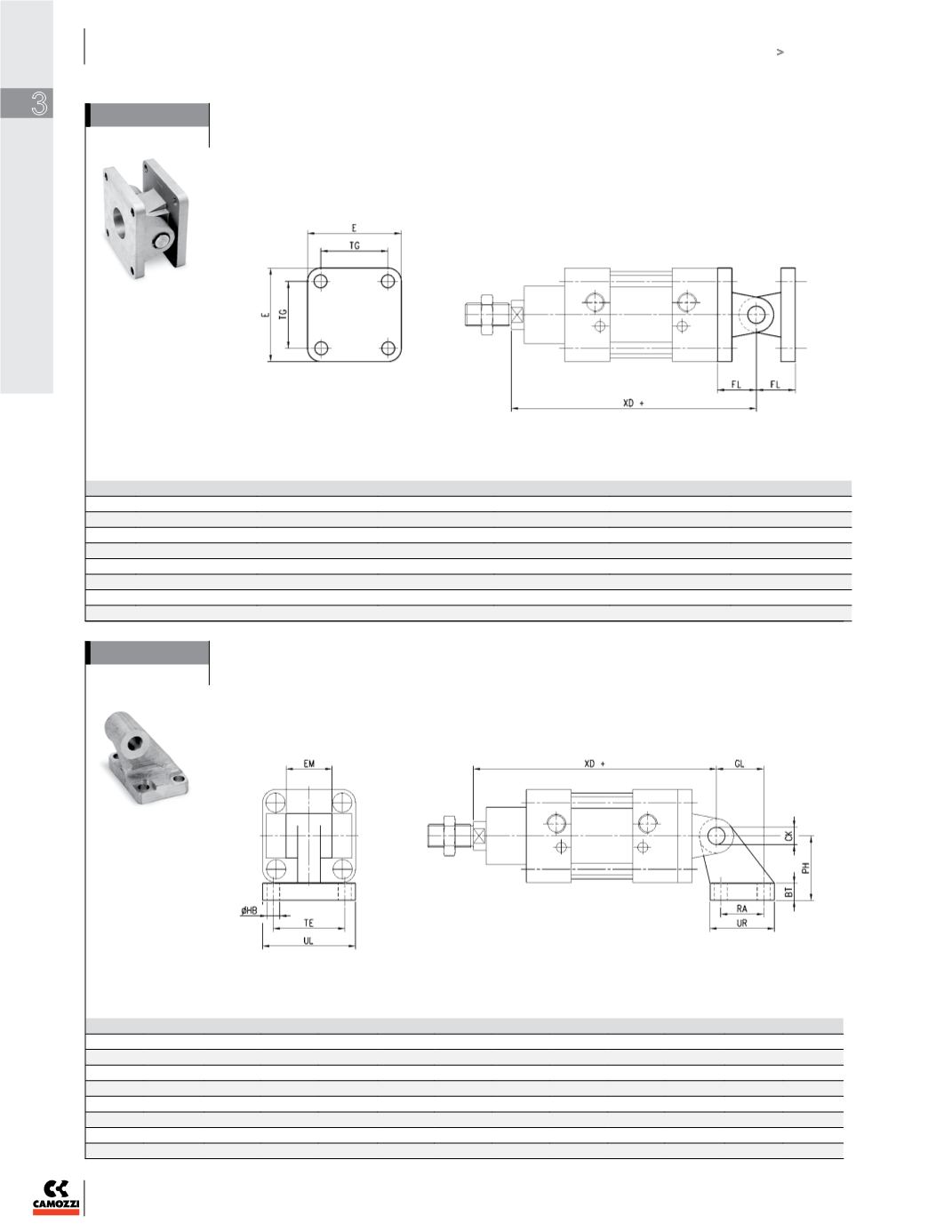

Combination Mod. I (combination of C + L + S)
Material: stainless steel 304
DIMENSIONS (mm)
Mod.
Ø
E
FL
L
TG
XD
I-41-32
32
45
22
12
33
142
I-41-40
40
52
25
15
38
161
I-41-50
50
65
27
17
47
170
I-41-63
63
75
32
20
57
185
I-41-80
80
95
36
22
72
210
I-41-100
100
115
41
25
89
230
I-41-125
125
140
50
30
110
275
+ = add the stroke
90
° male trunnion Mod. ZC
Material: stainless steel 304
DIMENSIONS (mm)
Mod.
Ø
BT
CK
EM
GL
HB
PH
RA
TE
UL
UR
XD
ZC-90-32
32
8
10
26
21
6,6
32
18
38
51
31
142
ZC-90-40
40
10
12
28
24
6,6
36
22
41
54
35
161
ZC-90-50
50
12
12
32
33
9
45
30
50
65
45
170
ZC-90-63
63
14
16
40
37
9
50
35
52
67
50
185
ZC-90-80
80
14
16
50
47
11
63
40
66
86
60
210
ZC-90-100
100
17
20
60
55
11
71
50
76
96
70
230
ZC-90-125
125
20
25
70
70
14
90
60
94
124
90
275
Supplied with:
1
x male support
+ = add the stroke
