ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
28

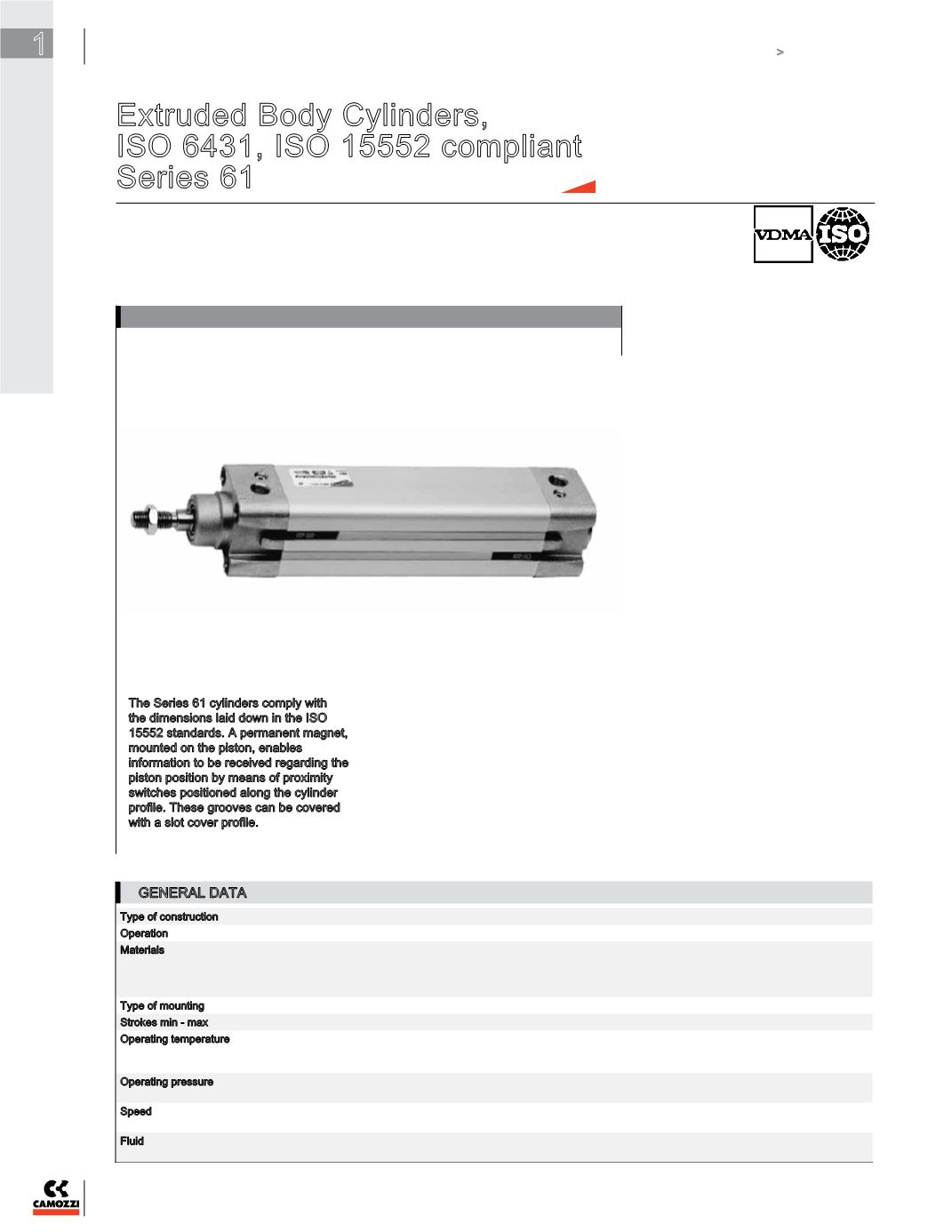

Extruded Body Cylinders,
ISO 6431, ISO 15552 compliant
Series 61
Single or double-acting, magnetic, cushioned
Standard and low friction versions
ø 32, 40, 50, 63, 80, 100, 125 mm
»
»
In compliance with ISO
15552
standards and with
the previous DIN/ISO 6431
-
VDMA 24562 standards
»
»
Rolled stainless steel rod
»
»
Adjustable pneumatic cushioning
»
»
Special designs available
LOW FRICTION:
»
»
Friction force reduced
by over 40%
»
»
Reduced stick-slip effect
»
»
Minimum operating pressure
down to 0,1 bar (1.5 psi)
»
»
Double-acting with low friction in
both directions
LOW TEMPERATURE:
Versions for -40°C and for -50°C
METAL ROD SCRAPER OPTION
FOR DIRT/ICE APPLICATIONS
»
»
For dirt / ice applications
»
»
Resistant to dust, cement,
resin, mud and wood residue
GENERAL DATA
Type of construction with tie-rods (inside the profile)
Operation
double-acting, single-acting, tandem. Low friction version: double-acting only.
Materials
standard = AL end-caps, rolled stainless steel rod AISI 420B, anodized AL tube, zinc-plated steel nuts and tie-rods,
PU seals; low friction = standard materials with NBR piston seal and NBR rod seal (FKM rod seal on request);
low temperature: standard materials with chrome plated stainless steel AISI 420B rod, brass rod scraper ring,
stainless steel AISI 303 nuts, stainless steel AISI 420B tie-rods, PU piston seals and NBR rod seal
Type of mounting
with tie-rods, with front / rear flange, foot mounting, with centre / front / rear / swivel trunnion
Strokes min - max
10 – 2500
mm
Operating temperature 0°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
low temperature (-40°C version): -40°C - 60°C (with dry air -40°C)
low temperature (-50°C version): -50°C - 60°C (with dry air -50°C)
Operating pressure
1 – 10
bar (standard and low temperature versions) (14.5 - 145 psi)
0,1 – 10
bar (low friction version) (1.5 - 145 psi)
Speed
10 – 1000
mm/sec, no load (standard and low temperature versions)
5 – 1000
mm/sec, no load (low friction version)
Fluid
filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once
applied the lubrication should never be interrupted.
The Series 61 cylinders comply with
the dimensions laid down in the ISO
15552
standards. A permanent magnet,
mounted on the piston, enables
information to be received regarding the
piston position by means of proximity
switches positioned along the cylinder
profile. These grooves can be covered
with a slot cover profile.
This cylinder series is normally equipped
with adjustable end-stroke cushioning.
Moreover these cylinders are equipped
with bumpers in order to reduce noise
and the impact of the piston as it reaches
the end of the stroke.
EXPRESS DELIVERY AVAILABLE
