ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
29

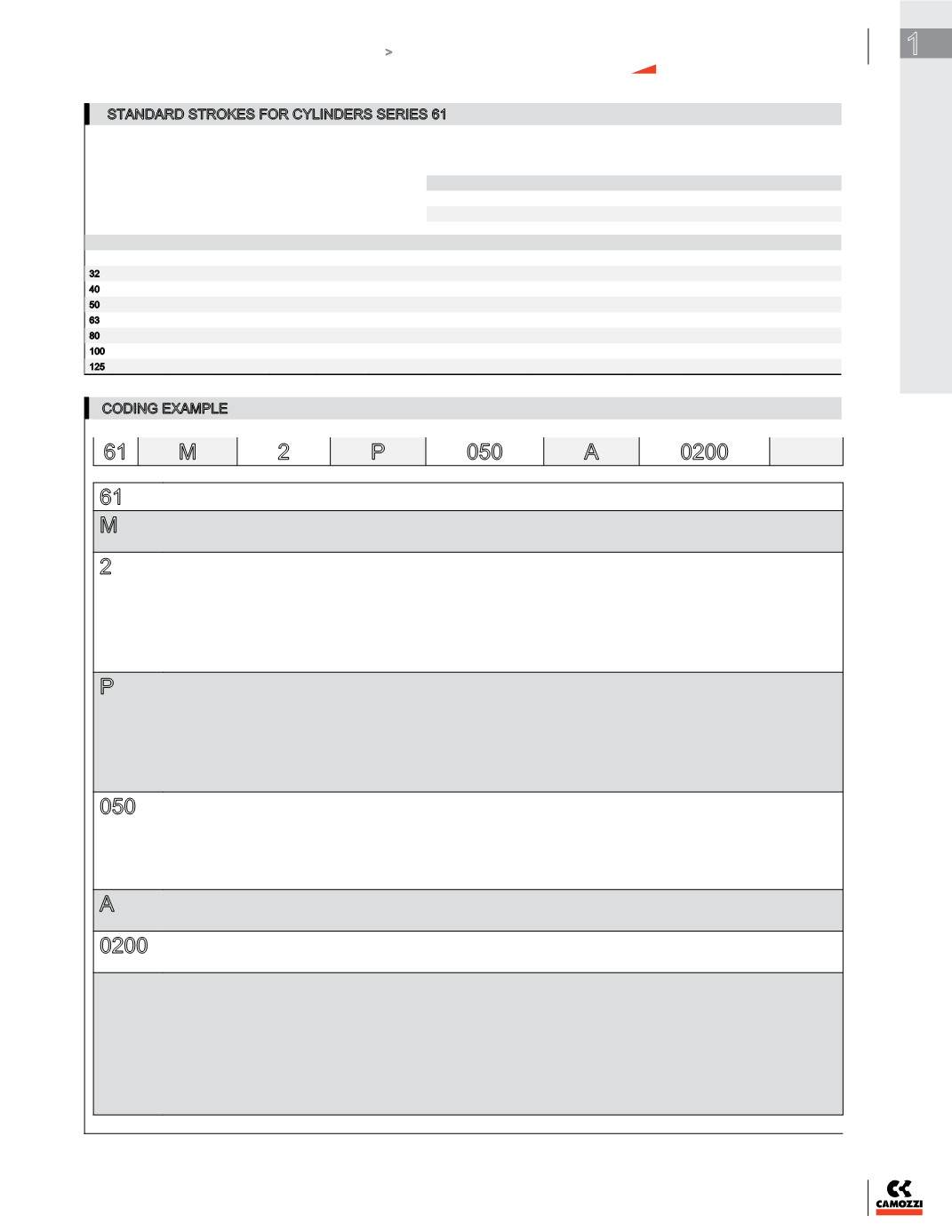

CODING EXAMPLE
STANDARD STROKES FOR CYLINDERS SERIES 61
61
M 2
P
050
A
0200
61
SERIES
M
VERSION:
M = standard, magnetic
L = low friction, magnetic
2
OPERATION:
1
= single-acting, front spring (ø 32 ± ø 100)
2
= double-acting *, front and rear cushioned
3
= double-acting *, no cushion
4
= double-acting *, rear cushioned
5
= double-acting *, front cushioned
6
= double-acting *, through-rod, front and rear cushioned
7
= single-acting, through-rod
*
all double-acting cylinders are also available in the low friction version.
P
MATERIALS
P = see the general data on page 1/1.25.01
R = stainless steel AISI 420B tie-rods - stainless steel AISI 303 tie-rod nuts
C = rolled stainless steel AISI 303 piston rod, stainless steel AISI 304 piston rod nut
U = rolled stainless steel AISI 303 piston rod, AISI 304 piston-rod nut, AISI 420B tie-rods, AISI 303 tie-rod nuts
W = rolled stainless steel AISI 304 piston rod, AISI304 piston-rod nut, AISI 420B tie-rods, AISI 303 tie-rod nuts
Z = chrome plated stainless steel AISI 420B rod, stainless steel AISI 304 rod nut, stainless steel AISI 420B tie-rods,
stainless steel AISI 303 tie-rods nuts, seals for low temperature (-40°C), brass rod scraper (Ø 125 excepted)
Y = chrome plated stainless steel AISI 420B rod, stainless steel AISI 304 rod nut, stainless steel AISI 420B tie-rods,
stainless steel AISI 303 tie-rods nuts, seals for low temperature (-50°C), brass rod scraper (Ø 125 excepted)
050
BORE:
032
= 32 mm
040
= 40 mm
050
= 50 mm
063
= 63 mm
080
= 80 mm
100
= 100 mm
125
= 125 mm
A
CONSTRUCTION:
A = standard with rod nut
RL = cylinder with rod lock (rod extension required. See table.)
0200
STROKE:
see the table
= standard
V = FKM rod seal
N = tandem
R = NBR rod seal
W = all FKM seals, up to 140 C°
C = PU coated cylinder. Colour: Grey *
L = low friction version without rod seal (rear supply only) **
( _ _ _ )
= extended piston rod _ _ _ mm
G = with brass rod scraper (chrome plated stainless steel AISI 420B rod, NBR rod seal) (Ø 125 excepted)
*
Version C: available on request. For further information, please contact our technical dept.
**
The possibility to order the cylinder without piston rod seal, further reduces the friction force.
■ = Single-acting (standard versions) ✖ = Double-acting (standard low friction and low temperature versions)
Other strokes up to 2500 mm are available on request.
Ø
25
50
75
80
100
125
150
160
200
250
300
320
400
500
32
■ ✖
■ ✖
■ ✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
40
■ ✖
■ ✖
■ ✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
50
■ ✖
■ ✖
■ ✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
63
■ ✖
■ ✖
■ ✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
80
■ ✖
■ ✖
■ ✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
100
■ ✖
■ ✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
125
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
✖
MAXIMUM STROKE LENGTHS (mm)
Series (and Ø)
Min-Max Stroke (Produced in USA)
Min-Max Stroke (Produced in Italy)
60-61 (
Ø 32-125)
10-1500
mm
10-2500
mm
EXPRESS DELIVERY AVAILABLE
