ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
31

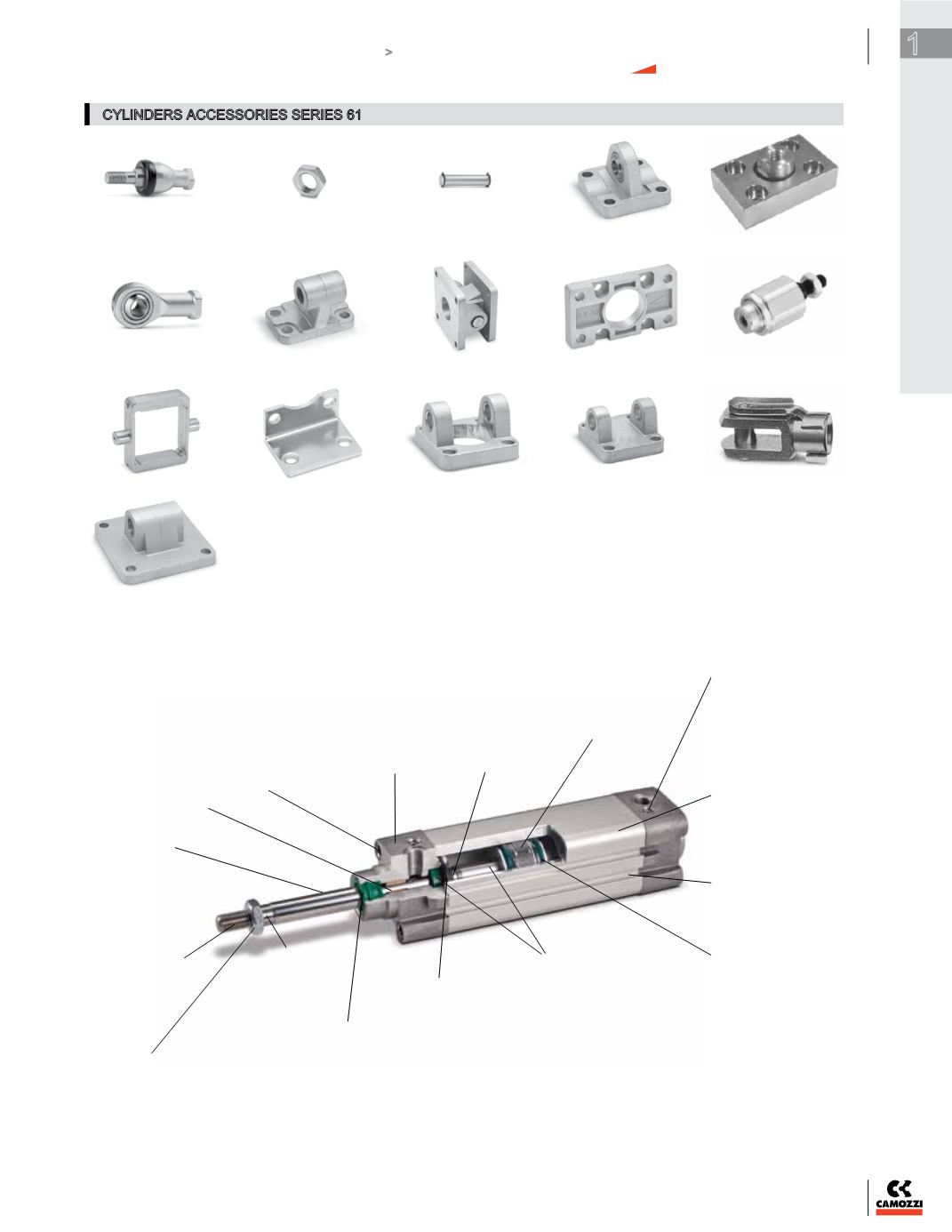

CYLINDERS ACCESSORIES SERIES 61
Piston rod socket joint
Mod. GY
Piston rod nut Mod. U Clevis pin Mod. S
Rear trunnion ball-joint
Mod. R
Coupling piece
Mod. GKF
Swivel ball joint Mod. GA 90° male trunnion
Mod. ZC
Swivel Combination
Mod. I
Front and rear flange
Mod. D-E
Self aligning rod
Mod. GK
Centre trunnion Mod. F Foot mount Mod. B
Front female trunnion
Mod. H and C-H
All accessories are supplied separately, except for piston rod nut Mod. U
Rear female trunnion
Mod. C and C-H
Rod fork end Mod. G
Rear trunnion male
Mod. L
Rod Gland
Hard Anodized
Aluminum body and
integrated design
includes rod bearing
and rod lip/wiper seal.
Rod Bearing is oil
impregnated, sintered
bronze containing
graphite for high
speed and heavy load
applications.
Tie Rod Nuts
Tie rod nuts are
ID hexed and ID
threaded providing
a flush face and
ability to assemble
and disassemble
mounting brackets
without loosening
Head.
Heads and
Caps
Heads and Caps
are lightweight
aluminum that have
been precision
machined and
anodized.
Piston
Bumpers
Shock
absorbing
bumpers
reduce noise
and piston
wear. Standard.
Piston
Aluminum, one-
piece design with
built-in solid magnet
ensuring consistent
switch sensing.
Adjustable Cushion
Seal Design
Precision–machined piston
spears combined with floating
cushion collar allow for a
smooth deceleration at end
of stroke. Cushion collar is
specifically designed for rapid
low–pressure breakaway
when stroke reverses.
Tube End Seals
Captured seal made
from BUNA–N
offering a wide range
of temperature
applications and
positive sealing.
Standard.
Cylinder Tube
Hard Anodized Aluminum
tube that provides
superior seal life and wear
resistance.
Aluminum Extrusion
Multiple slotted grooves for
sensor mounting.
Piston Rod
All stainless steel
ground and polished
rods, burnished for
improved seal life
and reduced wear.
Standard.
Rod Threads
Threads are rolled
Stainless Steel for
greater strength..
Rod Nut
Threads are rolled
Stainless Steel for
greater strength.
Key Flat
Hydraulically
pressed key flat.
Rod and Wiper Seal
Piston rod lip seal and wiper
combination. A compact
design, allowing for greater
bushing support without
sacrificing sealing ability.
Standard polyurethane.
Cushion
Adjustment
Recessed and captive
cushion adjustment
screws. Fine thread
adjustment for greater
repeatability and
accuracy. Standard Viton.
Piston Seals
Rounded lip u-cup
seal reduces friction;
specifically designed for
lube or non–lube service.
Maintains factory prelube
against the cylinder wall.
Standard polyurethane.
