ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
40

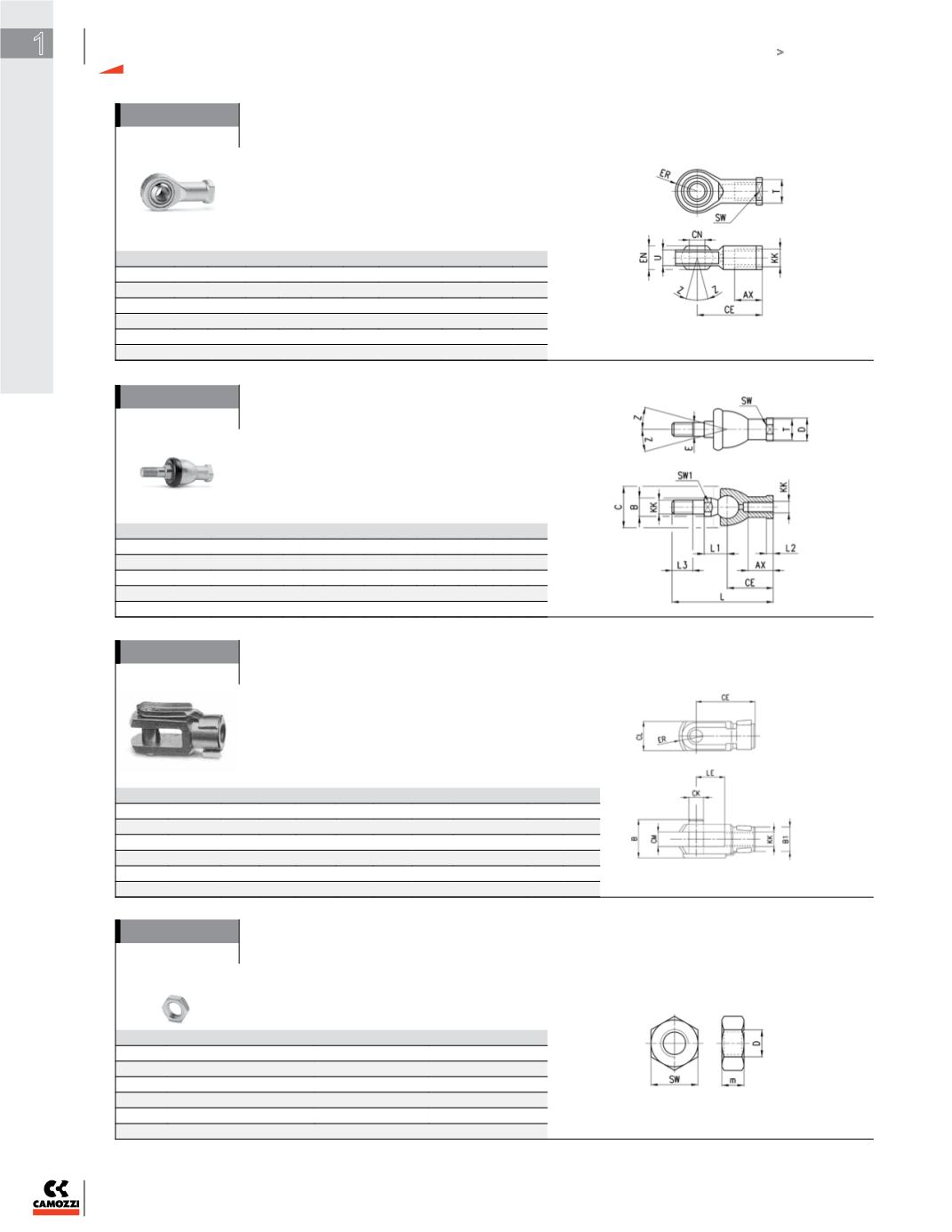

Swivel ball joint Mod. GA
ISO 8139.
Material: zinc-plated steel.
DIMENSIONS (mm)
Mod.
ØCN U EN ER AX CE
KK
T
Z SW
GA-32
10 10,5 14 14 20 43
M10X1,25 15 6,5 17
GA-40
12 12 16 16 22 50
M12X1,25 17,5 6,5 19
GA-50-63
16 15 21 21 28 64
M16X1,5
22 7,5 22
GA-80-100
20 18 25 25 33 77
M20x1,5 27,5 7
30
GA-41-125
30 25 37 37 51 110
M27x2
40 7,5 41
Piston rod socket joint Mod. GY
Material: Zinc-Aluminum alloy and zinc-plated steel.
DIMENSIONS (mm)
Mod.
Ø KK L CE L2 AX SW SW1 L1 L3 ØT ØD E ØB ØC Z
GY-32
32
M10X1,25 74 35 6,5 18 17 11 19,5 15 15 19 10 14 28 15
GY-40
40
M12X1,25 84 40 6,5 20 19 17 21 17 17,5 22 12 19 32 15
GY-50-63
50-63
M16X1,5 112 50 8 27 22 23 27,5 23 22 27 16 22 40 11
GY-80-100
80-100
M20x1,5 133 63 10 38 30 25 31,5 25 27,5 34 20 27 45 7,5
Rod fork end Mod. G
Material: zinc-plated steel
ISO 8140
DIMENSIONS (mm)
Mod.
Ø ØCK LE CM CL ER CE
KK
B B1
G-25-32
32
10
20
10
20
12
40
M10 X 1,25
26 18
G-40
40
12
24
12
24
14
48
M12 X 1,25
32 20
G-50-63
50-63
16
32
16
32
19
64
M16 X 1,5
40 26
G-80-100
80-100 20
40
20
40
25
80
M20 X 1,5
48 34
G-41-125
125
30
55
30
55
38
110
M27 X 2
74
48
Piston rod nut Mod. U
UNI EN ISO 4035.
Material: zinc-plated steel.
DIMENSIONS (mm)
Mod.
D
m
SW
U-25-32
M10X1,25
6
17
U-40
M12X1,25
7
19
U-50-63
M16X1,5
8
24
U-80-100
M20x1,5
9
30
U-41-125
M27x2
12
41
